5310-00-811-6419

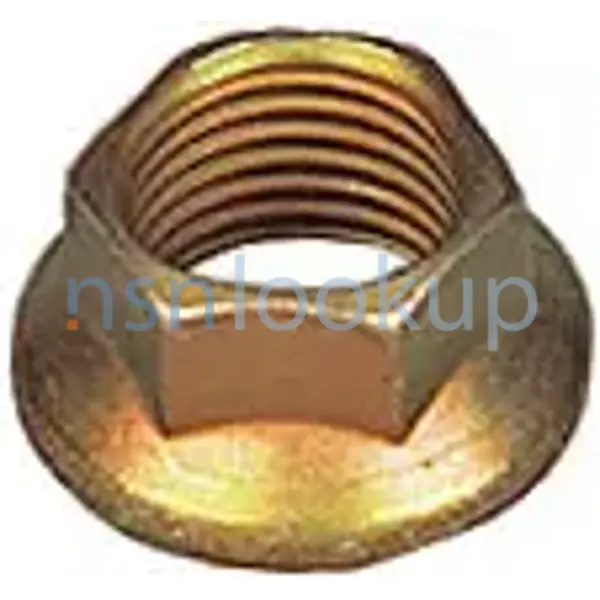

Hexagon Extended Washer Self-Locking Nut

5310008116419 008116419 H14L04CW 418084-2 MS21042-04C 2 0040-323 MS 21042-04 1491-440C 80552 723009731500 FN12A-40 MS21042-04 38FM440 RM22LH1660-40 4138-0021 F52LH3324-40 T98S440CPC 22MM40 FN12-40 38-0021 938.07.68.501 MS21042C04 457-5583 5310PL0201979

A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Hexagon Extended Washer Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1960

Data Last Changed
November 2023

NATO Update Count
99

NATO Data Quality

ACTA Style A294 for 5310-00-811-6419 1/1 — NSN 5310-00-811-6419 (Identification) 1/1

Marketplace 5310-00-811-6419

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 13 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 56 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 8 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 8900 HD NS

80552 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 4 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 18668 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 5 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 4 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 30 HD NS

Subscribe to View Vendor Details...

MS-21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 24 HD NS

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 311 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 200 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 67 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 31 HD NS

Subscribe to View Vendor Details...

8055-2 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 2 HD NS

Subscribe to View Vendor Details...

TM1-2840-260-23PT53HUEY NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

Subscribe to View Vendor Details...

FN12A-400 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 6 HD NS

Subscribe to View Vendor Details...

FN12-40 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 145 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 41763 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 100 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 314 HD NS

Subscribe to View Vendor Details...

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 7037 HD NS

Subscribe to View Vendor Details...

MS2104204 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 2 HD NS

MS21042-04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 87 HD NS

Subscribe to View Vendor Details...

008116419.5310 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 100 HD NS

Updated Every Day

5310-00-811-6419 RQST NE

Updated Every Day

5310-00-811-6419 RQST

Updated Every Day

5310-00-811-6419 RQST NE

Restrictions 5310-00-811-6419

5310-00-811-6419 is a Hexagon Extended Washer Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-811-6419

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-811-6419

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G190)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJVJBHXHSHD; AMC 1 AMSC G IMC Z IMCACTY GH

Sweden (VK01)
Effective Date:: 1 Feb 2017

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Nov 2008

Lithuania (WI01)
Effective Date:: 1 Jan 2010

Slovenia (WL01)
Effective Date:: 1 Apr 2006

Poland (WP01)
Effective Date:: 1 Apr 2003

Romania (WR01)
Effective Date:: 1 Feb 2012

Bulgaria (WU01)
Effective Date:: 1 Apr 2009

Czech Republic (WZ01)
Effective Date:: 1 Dec 2006

Brazil (YA01)
Effective Date:: 1 Nov 2008

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Thailand (YY01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Jun 2000

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Oct 1995

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5310-00-811-6419

Part Number
Manufacturer
Status
MS21042-04: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
2 0040-323: AC90N - Bae Systems Hagglunds Aktiebolag (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
MS 21042-04: 0291H - Rosomak S.A (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
1491-440C: 99167 - Hamilton Sundstrand Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
H14L04CW: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
80552: 59501 - Unison Industries Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
H14L04CW: 15653 - Howmet Global Fastening Systems Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
723009731500: A1140 - Leonardo Spa Divisione Sistemi Di (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
FN12A-40: 56878 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
4138-0021: 19397 - Bae Systems Information & Electronic (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
MS21042-04: K0407 - Rbsl Washington (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
4138-0021: 13467 - Associated Industries A Div Of (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
H14L04CW: F6033 - Tecnotec Sarl (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
H14L04CW: F7652 - Klx Aerospace Solutions Ii Sas (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
F52LH3324-40: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
2 0040-323: S3465 - Bae Systems Hagglunds Ab (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5310008116419: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
H14L04CW: 75237 - Howmet Global Fastening Systems Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
T98S440CPC: 11815 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
22MM40: 13257 - Amerace Ltd (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
FN12-40: 56878 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
38-0021: 39741 - Merillat Road Supply Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
938.07.68.501: S4080 - Pilatus Aircraft Ltd (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
MS21042C04: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
80552: 83311 - Unison Industries, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
MS21042-04: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
457-5583: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL0201979: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
H14L04CW: FB009 - Boeing Distribution Services Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 4
418084-2: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS21042-04C: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
38FM440: 56878 - Sps Technologies, Llc (Active); Transferred; RNCC E RNVC 8 DAC 2
RM22LH1660-40: 019L2 - Esna, Llc (Active); Transferred; RNCC E RNVC 8 DAC 5

Datasheet 5310-00-811-6419

Characteristic
Specifications
FIIG: A021A0
Hardness Rating [CQFM]: 49.0 Rockwell C Maximum
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.112 Inches
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Overall Height [ABKW]: 0.103 Inches Minimum And 0.125 Inches Maximum
Washer Outside Diameter [AAVX]: 0.206 Inches Maximum
Washer Thickness [ADEM]: 0.010 Inches Minimum
Width Across Flats [ASDB]: 0.150 Inches Minimum And 0.158 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall
Temp Rating [AZKQ]: 450.0 Deg Fahrenheit Nominal
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Series [BZRR]: Unjc
Thread Quantity Per Inch [CMLP]: 40

Weapon Systems (WSDC) 5310-00-811-6419

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-811-6419

Last Stock Position:: 162900 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-811-6419

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); HD; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

BJ: Rotary Wing Aircraft
AH-64 Airframe

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5310-00-811-6419

5310-33-205-1703 5310-14-404-0587 5310-99-647-1109 5310-14-274-2470 5310-19-004-6142 5310-12-143-0603 5310-12-170-9545 5310-14-482-4495 5310-14-440-5096 5310-12-359-9537 5310-99-718-0538 5310-12-325-6443 5310-12-333-5547 5310-12-364-4337 5310-12-348-5474 5310-14-481-2700 5310-12-388-2949 5310-14-222-0546

Freight Information 5310-00-811-6419

5310-00-811-6419 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-811-6419 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-811-6419 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-811-6419 is not classified as a special type of cargo when transported by water. 5310-00-811-6419 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-811-6419

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Contracting Technical Data File (CTDF) 5310-00-811-6419 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-811-6419

Related Documents 5310-00-811-6419 5+ Documents (More...)

Restrictions 5310-00-811-6419

Import and Export 5310-00-811-6419

End Users 5310-00-811-6419

Approved Sources 5310-00-811-6419

Datasheet 5310-00-811-6419

Weapon Systems (WSDC) 5310-00-811-6419

DLA Procurement Analysis 5310-00-811-6419

Management Data 5310-00-811-6419

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5310-00-811-6419

Freight Information 5310-00-811-6419

Packaging Data 5310-00-811-6419

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Contracting Technical Data File (CTDF) 5310-00-811-6419 February 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
