5310-00-807-1477

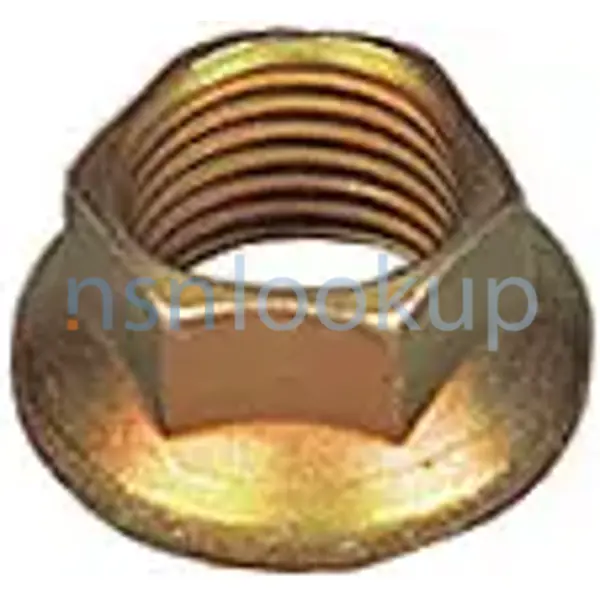

Hexagon Extended Washer Self-Locking Nut

5310008071477 008071477 2493262-3 2500929-8 MS21042L6 984051 CIPRD-MS21042-L6 H14-6 GN10U624 N135957 RM52LH3324-064 2110079 Z00.N5415371413 FN12M-064 T98S624 5310PL0150583 10121718

A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Hexagon Extended Washer Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
November 2023

NATO Update Count
97

NATO Data Quality

ACTA Style A294 for 5310-00-807-1477 1/1 — NSN 5310-00-807-1477 (Identification) 1/1

Marketplace 5310-00-807-1477

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS21042L6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 90 EA NS

Subscribe to View Vendor Details...

MS21042L6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 24 EA NS

Subscribe to View Vendor Details...

MS21042L6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 62 EA NS

Subscribe to View Vendor Details...

5310-00-807-1477 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 155 EA NS

Subscribe to View Vendor Details...

MS21042L6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 12 EA NS

Subscribe to View Vendor Details...

H14-6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 1 EA NS

Subscribe to View Vendor Details...

H146 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 187 EA NS

MS21042L6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 232 EA NS

Subscribe to View Vendor Details...

MS21042L6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 2 EA NS

Subscribe to View Vendor Details...

MS21042L6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

Subscribe to View Vendor Details...

H14-6 NUTS 48 EA NS

MS21042L6 NUT 7 EA NS

Subscribe to View Vendor Details...

TM1-2840-260-23PT53HUEYHUMV NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS21042L6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 59 EA NS

Subscribe to View Vendor Details...

MS21042L6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 362 EA NS

Subscribe to View Vendor Details...

MS21042L6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 47 EA NS

Subscribe to View Vendor Details...

MS21042L6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 106 EA NS

Subscribe to View Vendor Details...

MS21042L6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 2006 EA NS

GN10U624 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 2017 EA NS

Subscribe to View Vendor Details...

MS21042L6 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 31 EA NS

5310-00-807-1477 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 31 EA NS

Updated Every Day

5310-00-807-1477 RQST NE

Updated Every Day

5310-00-807-1477 RQST

Updated Every Day

5310-00-807-1477 RQST NE

Restrictions 5310-00-807-1477

5310-00-807-1477 is a Hexagon Extended Washer Self-Locking Nut that is an aviation critical safety item or flight safety critical aircraft part. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-807-1477

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-807-1477

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AZCTCLBFBD; AMC 1 AMSC B IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC B

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC B IMC Z IMCACTY SX

NASA (G180)
Effective Date:: 1 Sep 1993; AMC 0 AMSC 0 AAC B

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC B IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJFHD; AMC 1 AMSC B IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Jul 2009

Slovenia (WL01)
Effective Date:: 1 Apr 2006

Poland (WP01)
Effective Date:: 1 Apr 2003

Romania (WR01)
Effective Date:: 1 Feb 2012

Bulgaria (WU01)
Effective Date:: 1 Nov 2002

Czech Republic (WZ01)
Effective Date:: 1 Mar 2010

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5310-00-807-1477

Part Number
Manufacturer
Status
MS21042L6: 0PXV4 - The Boeing Company (Active); Primary Buy; RNCC 3 RNVC 2 DAC 3
MS21042L6: 76301 - The Boeing Company (Active); Primary Buy; RNCC 3 RNVC 2 DAC 3
MS21042L6: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 MEDALS DAC E
MS21042L6: 97499 - Bell Textron Inc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 3
MS21042L6: 27238 - Bristol Industries Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042L6: 52828 - Republic Fastener Mfg. Corp. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
2110079: 001JK - Embraer S.A. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
MS21042L6: 56878 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
H14-6: 15653 - Howmet Global Fastening Systems Inc (Active); Secondary Buy; RNCC 5 RNVC 2 MEDALS DAC 5
984051: F0754 - Safran Martin-Baker France (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
H14-6: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
MS21042L6: 96906 - Military Standards (Active); Secondary Buy; RNCC 5 RNVC 2 MEDALS DAC 6
MS21042L6: A0126 - Leonardo Spa Helicopters Division - (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
CIPRD-MS21042-L6: 14153 - Defense Logistics Agency (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC 5
H14-6: 75237 - Howmet Global Fastening Systems Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
GN10U624: 26512 - Northrop Grumman Systems Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
N135957: K0642 - Goodrich Actuation Systems Ltd (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
RM52LH3324-064: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
2110079: S4956 - Embraer Empresa Brasileira De (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MS21042L6: 80539 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS21042L6: 78022 - Northrop Grumman Systems Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
H14-6: F6033 - Tecnotec Sarl (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
H14-6: F7652 - Klx Aerospace Solutions Ii Sas (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
Z00.N5415371413: F0086 - Daher Aerospace - Ex Socata (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
FN12M-064: 56878 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
T98S624: 11815 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
T98S624: 05693 - Cherry Textron Inc Cherry Commercial (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5310PL0150583: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
10121718: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
2493262-3: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MS21042L6: 0W6H8 - Northrop Grumman Systems Corp (Active); Advisory Reference; RNCC C RNVC 1 DAC 3
2500929-8: 07187 - Honeywell International Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
H14-6: FB009 - Boeing Distribution Services Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 4
N135957: K0377 - Goodrich Actuation Systems Ltd (Active); Advisory Reference; RNCC C RNVC 1 DAC 4

Datasheet 5310-00-807-1477

Characteristic
Specifications
FIIG: A021A0
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.375 Inches
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Lubrication [ABAJ]: Dry Film Lubricant
Overall Height [ABKW]: 0.267 Inches Minimum And 0.282 Inches Maximum
Washer Outside Diameter [AAVX]: 0.620 Inches Maximum
Washer Thickness [ADEM]: 0.030 Inches Minimum
Width Across Flats [ASDB]: 0.430 Inches Minimum And 0.440 Inches Maximum
Specification/Standard Data [ZZZK]: 26512-Gn10u Manufacturers Standard
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall And Chromate Overall
Temp Rating [AZKQ]: 450.0 Deg Fahrenheit Nominal
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Series [BZRR]: Unjf
Thread Quantity Per Inch [CMLP]: 24

Weapon Systems (WSDC) 5310-00-807-1477

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-807-1477

Last Stock Position:: 8453 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-807-1477

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2021: Department of the Air Force (DF); EA; Subscribe; 1
Dec 2020: Department of the Navy (DN); EA; Subscribe; 1
Oct 2020: Department of the Air Force (DF); EA; Subscribe; 1
Feb 2020: Department of the Army (DA); EA; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
Department of the Air Force (DF): F; R; Refer To Aft095req; AFT095REQ

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

BJ: Rotary Wing Aircraft
AH-64 Airframe

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SO: SPECIAL OPERATIONAL FORCES (SOF) PECULIAR

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

K: Reserved

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5310-00-807-1477

5310-33-205-1703 5310-14-404-0587 5310-99-647-1109 5310-14-274-2470 5310-19-004-6142 5310-12-143-0603 5310-12-170-9545 5310-14-482-4495 5310-14-440-5096 5310-12-359-9537 5310-99-718-0538 5310-12-325-6443 5310-12-333-5547 5310-12-364-4337 5310-12-348-5474 5310-14-481-2700 5310-12-388-2949 5310-14-222-0546

Freight Information 5310-00-807-1477

5310-00-807-1477 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-807-1477 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-807-1477 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-807-1477 is not classified as a special type of cargo when transported by water. 5310-00-807-1477 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-807-1477

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-807-1477 25 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A723F125W: 22 Sep 2023; Subscribe; 1147; Subscribe; Subscribe
SPE4A723F125WP00001: 22 Sep 2023; Subscribe; 38470; Subscribe; Subscribe
SPE4A722F9512: 22 May 2022; Subscribe; 18597; Subscribe; Subscribe
SPE4A722F9512: 22 May 2022; Subscribe; 18597; Subscribe; Subscribe
SPE5EC16D00020043: 04 Sep 2017; Subscribe; 5078; Subscribe; Subscribe
SPE5EC16D00020042: 07 Aug 2017; Subscribe; 8809; Subscribe; Subscribe
SPE5EC16D00020039: 13 Jun 2017; Subscribe; 37272; Subscribe; Subscribe
SPE5EC16D00020030: 01 Jan 2017; Subscribe; 3878; Subscribe; Subscribe
SPE5EC16D00020022: 15 Aug 2016; Subscribe; 2088; Subscribe; Subscribe
SPE5EC16D00020021: 31 Jul 2016; Subscribe; 1880; Subscribe; Subscribe
SPE5EC16D00020020: 17 Jul 2016; Subscribe; 1196; Subscribe; Subscribe
SPE5EC16D00020019: 10 Jul 2016; Subscribe; 2470; Subscribe; Subscribe
SPE5EC16D00020017: 05 Jun 2016; Subscribe; 771; Subscribe; Subscribe
SPE5EC16D00020012: 25 May 2016; Subscribe; 10535; Subscribe; Subscribe
SPE5EC16D00020015: 17 May 2016; Subscribe; 5706; Subscribe; Subscribe
SPE5EC16D00020010: 27 Mar 2016; Subscribe; 185; Subscribe; Subscribe
SPE5EC16D00020011: 27 Mar 2016; Subscribe; 8531; Subscribe; Subscribe
SPE5EC16D00020006: 25 Mar 2016; Subscribe; 21150; Subscribe; Subscribe
SPE5EC16D00020005: 07 Mar 2016; Subscribe; 11838; Subscribe; Subscribe
SPE5EC16D00020004: 07 Mar 2016; Subscribe; 2166; Subscribe; Subscribe
SPE5EC15M0768: 05 Aug 2015; Subscribe; 20000; Subscribe; Subscribe
SPE5EC15M0404: 02 Mar 2015; Subscribe; 3703; Subscribe; Subscribe
SPEHA615M0005: 03 Oct 2014; Subscribe; 2500; Subscribe; Subscribe
SPE5EC14M0653: 27 Aug 2014; Subscribe; 9196; Subscribe; Subscribe
SPE5EC14M0315P00001: 22 Apr 2014; Subscribe; 160000; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-807-1477 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: Y
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-807-1477

Related Documents 5310-00-807-1477 5+ Documents (More...)

Restrictions 5310-00-807-1477

Import and Export 5310-00-807-1477

End Users 5310-00-807-1477

Approved Sources 5310-00-807-1477

Datasheet 5310-00-807-1477

Weapon Systems (WSDC) 5310-00-807-1477

DLA Procurement Analysis 5310-00-807-1477

Management Data 5310-00-807-1477

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5310-00-807-1477

Freight Information 5310-00-807-1477

Packaging Data 5310-00-807-1477

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-807-1477 25 Records

Contracting Technical Data File (CTDF) 5310-00-807-1477 February 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
