5310-00-807-1476

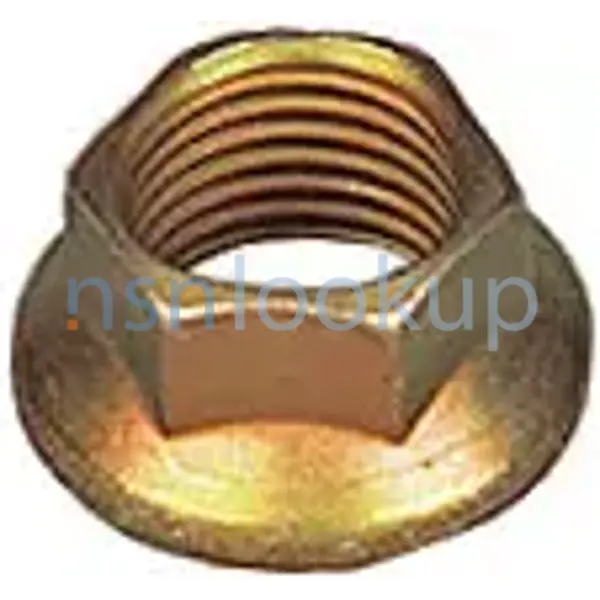

Hexagon Extended Washer Self-Locking Nut
5310008071476 008071476 2110063 984050 H14-5 MS21042-L5 MS21042L5 NAS679A5 T98S524 2628856 NAS1291-5 CIPRD-MS21042-L5 T6S524 010210-006 RM52LH3324-054 FN12M054 10121717 5310PL0141537
A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Hexagon Extended Washer Self-Locking Nut
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
November 2023
November 2023
NATO Update Count
91
91
NATO Data Quality
Marketplace 5310-00-807-1476
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
010210-006 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 691 HD NS
NAS679A5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 691 HD NS
MS21042L5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 691 HD NS
NAS1291-5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 691 HD NS
5310PL0141537 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 691 HD NS
FN12M054 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 691 HD NS
H14-5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 691 HD NS
T98S524 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 691 HD NS
H14-5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 6618 HD NS
2628856 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 9 HD NS
NAS679A5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 364 HD NS
MS21042L5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 2046 HD NS
NAS679A5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 502 HD NS
MS21042L5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 14 HD NS
H145 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 288 HD NS
NAS679A5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 83 HD NS
MS21042L5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 734 HD NS
MS21042L5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 193 HD NS
NAS679A5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 1 HD NS
NAS679A5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 129 HD NS
MS21042L5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 97 HD NS
MS21042L5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 3401 HD NS
NAS679A5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 38 HD NS
Updated Every Day 5310-00-807-1476 RQST NE
Updated Every Day 5310-00-807-1476 RQST
Updated Every Day 5310-00-807-1476 RQST NE
Related Documents 5310-00-807-1476 5+ Documents (More...)
MS21042L5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 14 EA NS Request Quotation Subscribe to View Vendor
MS21042L5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS Request Quotation Subscribe to View Vendor
MS21042L5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 13 EA NS Request Quotation Subscribe to View Vendor
MS21042L5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS Request Quotation Subscribe to View Vendor
MS21042L5 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 13 EA NS Request Quotation Subscribe to View Vendor
439-1154 107 Locknut AN365-1024A 5310-00-208-1918 108 Locknut 9411807 5310-01-461-8043 109 Locknut MS21042L5
5310-00-807-1476 110 Locknut MS21042L6 5310-00-807-1477 111 Locknut MS21042L4 5310-00-807-1475 112 Locknut
5310-00-807-1476 110 Locknut MS21042L6 5310-00-807-1477 111 Locknut MS21042L4 5310-00-807-1475 112 Locknut
4284 133.4 Locknut 12339728-3 5310-01-198-3487 133.5 Locknut 5584710 5310-01-203-3217 133.6 Locknut MS21042L5
5310-00-807-1476 133.7 Locknut MS21042L6 5310-00-807-1477 133.8 Locknut MS21042L4 5310-00-807-1475 133.9
5310-00-807-1476 133.7 Locknut MS21042L6 5310-00-807-1477 133.8 Locknut MS21042L4 5310-00-807-1475 133.9
4284 133.4 Locknut 12339728-3 5310-01-198-3487 133.5 Locknut 5584710 5310-01-203-3217 133.6 Locknut MS21042L5
5310-00-807-1476 133.7 Locknut MS21042L6 5310-00-807-1477 133.8 Locknut MS21042L4 5310-00-807-1475 133.9
5310-00-807-1476 133.7 Locknut MS21042L6 5310-00-807-1477 133.8 Locknut MS21042L4 5310-00-807-1475 133.9
14 5310-00-807-1466 275 13 5310-00-807-1466 276 9 80205 MS21042L4 5310-00-807-1475 279 14 80205 MS21042L5
5310-00-807-1476 279 18 80205 MS21042L6 5310-00-807-1477 279 26 96906 MS21044-C3 5310-00-208-9255 480
5310-00-807-1476 279 18 80205 MS21042L6 5310-00-807-1477 279 26 96906 MS21044-C3 5310-00-208-9255 480
Restrictions 5310-00-807-1476
5310-00-807-1476 is a Hexagon Extended Washer Self-Locking Nut that is an aviation critical safety item or flight safety critical aircraft part. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-807-1476
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-807-1476
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AJCTCLBFBDAZ
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- NASA (G940)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKEJVHSHD
- Sweden (VK01)
- Effective Date:
- 1 Feb 2017
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Finland (WF01)
- Effective Date:
- 1 Jul 2009
- Slovenia (WL01)
- Effective Date:
- 1 Apr 2006
- Poland (WP01)
- Effective Date:
- 1 Feb 2005
- Romania (WR01)
- Effective Date:
- 1 Jan 2012
- Bulgaria (WU01)
- Effective Date:
- 1 Nov 2002
- Czech Republic (WZ01)
- Effective Date:
- 1 Jan 2010
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Sep 2004
Approved Sources 5310-00-807-1476
- Part Number
- Manufacturer
- Status
- H14-5
- Manufacturer
- 15653 - Howmet Global Fastening Systems Inc (Active)
- Primary Buy
- Primary Buy
- MS21042L5
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- 2110063
- 001JK - Embraer S.A. (Active)
- Secondary Buy
- Secondary Buy
- 984050
- F0754 - Safran Martin-Baker France (Active)
- Secondary Buy
- Secondary Buy
- H14-5
- R1120 - Satair A/S (Active)
- Secondary Buy
- Secondary Buy
- MS21042L5
- AC910 - Aertekno S.R.L. (Active)
- Secondary Buy
- Secondary Buy
- MS21042-L5
- 15653 - Howmet Global Fastening Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- MS21042-L5
- 56878 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- MS21042L5
- A0311 - Tecno Trade S.R.L. (Active)
- Secondary Buy
- Secondary Buy
- MS21042-L5
- 27238 - Bristol Industries Llc (Active)
- Secondary Buy
- Secondary Buy
- MS21042-L5
- 52828 - Republic Fastener Mfg. Corp. (Active)
- Secondary Buy
- Secondary Buy
- NAS1291-5
- 019L2 - Esna, Llc (Active)
- Secondary Buy
- Secondary Buy
- NAS1291-5
- 78103 - Schweizer Aircraft Corp. (Replaced)
- Secondary Buy
- Secondary Buy
- NAS1291-5
- 78286 - Sikorsky Aircraft Corporation (Active)
- Secondary Buy
- Secondary Buy
- NAS1291-5
- 78022 - Northrop Grumman Systems Corporation (Active)
- Secondary Buy
- Secondary Buy
- NAS1291-5
- A3856 - Paolo Astori Spa (Active)
- Secondary Buy
- Secondary Buy
- NAS1291-5
- 17446 - Huck International, Inc. (Active)
- Secondary Buy
- Secondary Buy
- MS21042L5
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- NAS679A5
- 80205 - National Aerospace Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- H14-5
- 75237 - Howmet Global Fastening Systems Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- H14-5
- F7652 - Klx Aerospace Solutions Ii Sas (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- T98S524
- 11815 - Sps Technologies, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2628856
- 06848 - Honeywell International Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- NAS1291-5
- 80205 - National Aerospace Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- CIPRD-MS21042-L5
- 14153 - Defense Logistics Agency (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- T6S524
- 11815 - Sps Technologies, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- T98S524
- 05693 - Cherry Textron Inc Cherry Commercial (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS21042L5
- 60119 - Monadnock Company, The (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 010210-006
- 81413 - Bae Systems Information And (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- RM52LH3324-054
- 72962 - Harvard Industries Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- H14-5
- F6033 - Tecnotec Sarl (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2110063
- S4956 - Embraer Empresa Brasileira De (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- FN12M054
- 50392 - Sps Technologies Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 10121717
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 5310PL0141537
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- H14-5
- FB009 - Boeing Distribution Services Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5310-00-807-1476
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Hardness Rating [CQFM]
- 49.0 Rockwell C Maximum
- Material [MATT]
- Steel Overall
- Nominal Thread Size [CQJX]
- 0.312 Inches
- Nut Style [ACTA]
- Hexagon
- Locking Feature [AAUM]
- Prevailing Torque All Metal Design
- Lubrication [ABAJ]
- Dry Film Lubricant
- Overall Height [ABKW]
- 0.251 Inches Minimum And 0.266 Inches Maximum
- Thread Class [AAJD]
- 3B
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 24
- Thread Series [BZRR]
- Unjf
- Washer Outside Diameter [AAVX]
- 0.520 Inches Maximum
- Washer Thickness [ADEM]
- 0.023 Inches Minimum
- Width Across Flats [ASDB]
- 0.367 Inches Minimum And 0.378 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Temp Rating [AZKQ]
- 450.0 Deg Fahrenheit Nominal
Weapon Systems (WSDC) 5310-00-807-1476
DLA Procurement Analysis 5310-00-807-1476
- Last Stock Position:
- 2214900 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-00-807-1476
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- Oct 2021
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- Nov 2020
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- Mar 2020
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- R
- Refer To Aft095req
- AFT095REQ
- R
- Department of the Air Force (DF)
- F
- R
- Refer To Av 932-5270
- AV 932-5270
- R
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- BJ
- Rotary Wing Aircraft
AH-64 Airframe
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- KT
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5310-00-807-1476
5310-33-205-1703 5310-14-404-0587 5310-99-647-1109 5310-14-274-2470 5310-19-004-6142 5310-12-143-0603 5310-12-170-9545 5310-14-482-4495 5310-14-440-5096 5310-12-359-9537 5310-99-718-0538 5310-12-325-6443 5310-12-333-5547 5310-12-364-4337 5310-12-348-5474 5310-14-481-2700 5310-12-388-2949 5310-14-222-0546
Freight Information 5310-00-807-1476
5310-00-807-1476 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-807-1476 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-807-1476 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-807-1476 is not classified as a special type of cargo when transported by water. 5310-00-807-1476 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-807-1476
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- UU-B-36, Bags, Paper Grocers
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5310-00-807-1476 23 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5EC19F0042P00001
- 23 Dec 2018
- Subscribe
- 37
- Subscribe
- Subscribe
- Subscribe
- SPE5EC19F0033P00001
- 09 Dec 2018
- Subscribe
- 52
- Subscribe
- Subscribe
- Subscribe
- SPE5EC19F0032
- 01 Dec 2018
- Subscribe
- 644
- Subscribe
- Subscribe
- Subscribe
- SPE5EC18F0166P00003
- 29 Jun 2018
- Subscribe
- 1448
- Subscribe
- Subscribe
- Subscribe
- SPE5EC18F0158P00003
- 27 Jun 2018
- Subscribe
- 40
- Subscribe
- Subscribe
- Subscribe
- SPE5EC18F0157P00003
- 27 Jun 2018
- Subscribe
- 15
- Subscribe
- Subscribe
- Subscribe
- SPE5EC18F0152P00003
- 11 Jun 2018
- Subscribe
- 137
- Subscribe
- Subscribe
- Subscribe
- SPE5EC18F0142P00003
- 29 May 2018
- Subscribe
- 3945
- Subscribe
- Subscribe
- Subscribe
- SPE5EC18F0135
- 23 May 2018
- Subscribe
- 37
- Subscribe
- Subscribe
- Subscribe
- SPE5EC18F0128
- 14 May 2018
- Subscribe
- 778
- Subscribe
- Subscribe
- Subscribe
- SPE5EC16D00030047
- 07 Aug 2017
- Subscribe
- 12
- Subscribe
- Subscribe
- Subscribe
- SPE5EC16D00030043
- 02 Jul 2017
- Subscribe
- 136
- Subscribe
- Subscribe
- Subscribe
- SPE5EC16D00030042
- 13 Jun 2017
- Subscribe
- 691
- Subscribe
- Subscribe
- Subscribe
- SPE5EC16D00030031
- 01 Jan 2017
- Subscribe
- 460
- Subscribe
- Subscribe
- Subscribe
- SPE5EC16D0003001001
- 29 Mar 2016
- Subscribe
- 2000
- Subscribe
- Subscribe
- Subscribe
- SPE5EC16D00030005
- 25 Mar 2016
- Subscribe
- 1403
- Subscribe
- Subscribe
- Subscribe
- SPE5EC16D00030003
- 07 Mar 2016
- Subscribe
- 198
- Subscribe
- Subscribe
- Subscribe
- SPE5EC16D00030004
- 07 Mar 2016
- Subscribe
- 808
- Subscribe
- Subscribe
- Subscribe
- SPE5EC16D00030001
- 12 Feb 2016
- Subscribe
- 42
- Subscribe
- Subscribe
- Subscribe
- SPE5EC16D00030002
- 12 Feb 2016
- Subscribe
- 258
- Subscribe
- Subscribe
- Subscribe
- SPE5EC15M0763
- 04 Aug 2015
- Subscribe
- 47
- Subscribe
- Subscribe
- Subscribe
- SPE5EC15M0501P00002
- 14 Apr 2015
- Subscribe
- 300
- Subscribe
- Subscribe
- Subscribe
- SPE5EC14M0202
- 18 Mar 2014
- Subscribe
- 2000
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5310-00-807-1476 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
