5310-00-807-1473

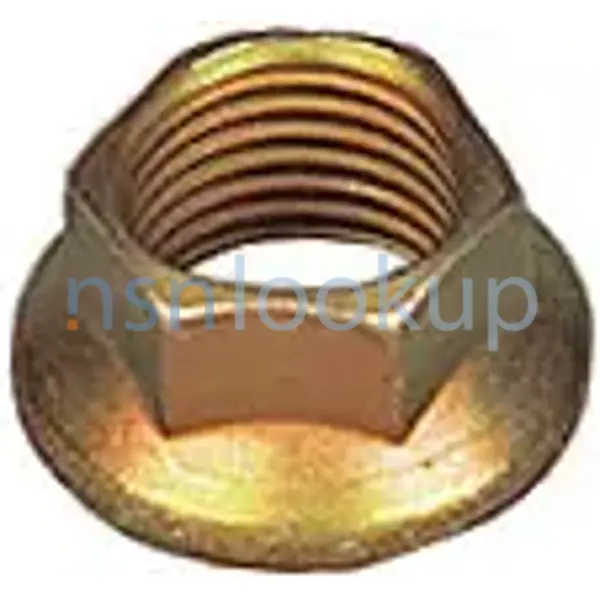

Hexagon Extended Washer Self-Locking Nut

5310008071473 008071473 NASM21042 NASM21042-08 400555-02 9NM400555-02 P26040 MN16PJ08 MS21042L08 000004001340000 984019 CH124175-4 Z00.N5415371175 T98S832 403335 FIND 6 1484C8 FN12M82 FN12MLM-82 RM52LH3324-82 10373387 5310PL1686599 5310PL1660268

A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Hexagon Extended Washer Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
November 2023

NATO Update Count
81

NATO Data Quality

ACTA Style A294 for 5310-00-807-1473 1/1 — NSN 5310-00-807-1473 (Identification) 1/1

Marketplace 5310-00-807-1473

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 44 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 983 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 2400 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 317 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 445 HD NS

MS-21042-L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 122 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 363 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 141 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 57 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT, SELF LOCKING 98 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 13 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 20 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 4 HD NS

Subscribe to View Vendor Details...

5310-00-807-1473 NUT,SELF-LOCKING 400 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 155 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 278 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 508 HD NS

Subscribe to View Vendor Details...

MS21042L08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 596 HD NS

Subscribe to View Vendor Details...

1549159 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 400 HD NS

Updated Every Day

5310-00-807-1473 RQST NE

Updated Every Day

5310-00-807-1473 RQST

Updated Every Day

5310-00-807-1473 RQST NE

Restrictions 5310-00-807-1473

5310-00-807-1473 is a Hexagon Extended Washer Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-807-1473

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-807-1473

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AZCTCLBFBD; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Sep 2013
Former MOE Rule:: FGGI; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC G IMC Z IMCACTY GH

Bosnia and Herzegovina (VB01)
Effective Date:: 1 Oct 2013

Sweden (VK01)
Effective Date:: 1 Feb 2017

Lithuania (WI01)
Effective Date:: 1 Jan 2010

Slovenia (WL01)
Effective Date:: 1 Apr 2006

Poland (WP01)
Effective Date:: 1 Apr 2003

Bulgaria (WU01)
Effective Date:: 1 Nov 2002

Brazil (YA01)
Effective Date:: 1 Dec 1999

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Mar 1995

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Dec 1999

Canada (ZC01)
Effective Date:: 1 Apr 1991

South Africa (ZD01)
Effective Date:: 1 Oct 2009

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5310-00-807-1473

Part Number
Manufacturer
Status
NASM21042-08: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC 4
MS21042L08: 80205 - National Aerospace Standards (Active); Original Design; RNCC 3 RNVC 9 MEDALS DAC E
NASM21042: 80205 - National Aerospace Standards (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 MEDALS DAC E
400555-02: D8095 - Goodrich Lighting Systems Gmbh & Co. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
9NM400555-02: D8095 - Goodrich Lighting Systems Gmbh & Co. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
P26040: U1604 - Martin-Baker Aircraft Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
MN16PJ08: C4293 - Fairchild Fasteners Europe - Vsd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
MS21042L08: AC910 - Aertekno S.R.L. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
000004001340000: F0554 - Aresia-Valenton (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
984019: F0754 - Safran Martin-Baker France (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
MN16PJ08: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
CH124175-4: K0377 - Goodrich Actuation Systems Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
MS21042L08: A0170 - Leonardo Spa Aerostructure Division (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042L08: A0126 - Leonardo Spa Helicopters Division - (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
Z00.N5415371175: F0086 - Daher Aerospace - Ex Socata (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
T98S832: 11815 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MN16PJ08: 73197 - Hi-Shear Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
403335 FIND 6: 35351 - Ge Aviation Systems Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
1484C8: 99167 - Hamilton Sundstrand Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
FN12M82: 56878 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC 5
MS21042L08: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC E
FN12MLM-82: 56878 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
RM52LH3324-82: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
10373387: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL1686599: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL1660268: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310008071473: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 5310-00-807-1473

Characteristic
Specifications
FIIG: A021A0
Criticality Code Justification [CRTL]: Feat
Hardness Rating [CQFM]: 49.0 Rockwell C Maximum
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.164 Inches
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Lubrication [ABAJ]: Dry Film Lubricant
Overall Height [ABKW]: 0.125 Inches Minimum And 0.188 Inches Maximum
Special Features [FEAT]: The Item Is A Flight Safety Critical Aircraft Part (Fscap).
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Quantity Per Inch [CMLP]: 32
Thread Series [BZRR]: Unjc
Washer Outside Diameter [AAVX]: 0.290 Inches Maximum
Washer Thickness [ADEM]: 0.015 Inches Minimum
Width Across Flats [ASDB]: 0.213 Inches Minimum And 0.221 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall
Temp Rating [AZKQ]: 450.0 Deg Fahrenheit Nominal

Weapon Systems (WSDC) 5310-00-807-1473

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-807-1473

Last Stock Position:: 567200 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-807-1473

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: US Marine Corps (DM); HD; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

GC: UH/60A BLACKHAWK

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5310-00-807-1473

5310-33-205-1703 5310-14-404-0587 5310-99-647-1109 5310-14-274-2470 5310-19-004-6142 5310-12-143-0603 5310-12-170-9545 5310-14-482-4495 5310-14-440-5096 5310-12-359-9537 5310-99-718-0538 5310-12-325-6443 5310-12-333-5547 5310-12-364-4337 5310-12-348-5474 5310-14-481-2700 5310-12-388-2949 5310-14-222-0546

Freight Information 5310-00-807-1473

5310-00-807-1473 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-807-1473 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-807-1473 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-807-1473 is not classified as a special type of cargo when transported by water. 5310-00-807-1473 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-807-1473

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-807-1473 30 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A623FB8NN: 17 Jul 2023; Subscribe; 1; Subscribe; Subscribe
SPE4A623FB8JM: 17 Jul 2023; Subscribe; 1; Subscribe; Subscribe
SPE4A623FB8TW: 17 Jul 2023; Subscribe; 11; Subscribe; Subscribe
SPE4A623FB3SY: 10 Jul 2023; Subscribe; 78; Subscribe; Subscribe
SPE4A623FB3SZ: 10 Jul 2023; Subscribe; 371; Subscribe; Subscribe
SPE4A623FB3SY: 10 Jul 2023; Subscribe; 78; Subscribe; Subscribe
SPE4A623FB3SZ: 10 Jul 2023; Subscribe; 371; Subscribe; Subscribe
SPE4A522P3929: 26 Jan 2022; Subscribe; 1671; Subscribe; Subscribe
SPE4A522V0431: 15 Nov 2021; Subscribe; 88; Subscribe; Subscribe
SPE5E321V0077P00002: 15 Mar 2021; Subscribe; 1678; Subscribe; Subscribe
SPE5EY18F5664: 05 Feb 2018; Subscribe; 113; Subscribe; Subscribe
SPM5EY13D05471052: 23 Aug 2017; Subscribe; 42; Subscribe; Subscribe
SPM5EY13D05471050: 23 Aug 2017; Subscribe; 6; Subscribe; Subscribe
SPM5EY13D05471051: 23 Aug 2017; Subscribe; 21; Subscribe; Subscribe
SPM5EY13D05471038: 17 Aug 2017; Subscribe; 586; Subscribe; Subscribe
SPM5EY13D05471037: 17 Aug 2017; Subscribe; 66; Subscribe; Subscribe
SPM5EY13D05471039: 17 Aug 2017; Subscribe; 1050; Subscribe; Subscribe
SPM5EY13D05470974: 04 Jun 2017; Subscribe; 1047; Subscribe; Subscribe
SPM5EY13D05470973: 04 Jun 2017; Subscribe; 7; Subscribe; Subscribe
SPM5EY13D05470932: 21 May 2017; Subscribe; 375; Subscribe; Subscribe
SPM5EY13D05470911: 08 May 2017; Subscribe; 402; Subscribe; Subscribe
SPM5EY13D05470867: 06 Mar 2017; Subscribe; 375; Subscribe; Subscribe
SPM5EY13D05470738: 06 Nov 2016; Subscribe; 329; Subscribe; Subscribe
SPM5EY13D05470424: 09 Sep 2015; Subscribe; 44; Subscribe; Subscribe
SPM5EY13D05470426: 09 Sep 2015; Subscribe; 579; Subscribe; Subscribe
SPM5EY13D05470423: 09 Sep 2015; Subscribe; 6; Subscribe; Subscribe
SPM5EY13D05470425: 09 Sep 2015; Subscribe; 174; Subscribe; Subscribe
SPE5E814MQ117: 29 May 2014; Subscribe; 132; Subscribe; Subscribe
SPE5E814V3777: 21 Mar 2014; Subscribe; 772; Subscribe; Subscribe
SPE5E814V0480: 22 Oct 2013; Subscribe; 76; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-807-1473 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-807-1473

Related Documents 5310-00-807-1473 5+ Documents (More...)

Restrictions 5310-00-807-1473

Import and Export 5310-00-807-1473

End Users 5310-00-807-1473

Approved Sources 5310-00-807-1473

Datasheet 5310-00-807-1473

Weapon Systems (WSDC) 5310-00-807-1473

DLA Procurement Analysis 5310-00-807-1473

Management Data 5310-00-807-1473

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5310-00-807-1473

Freight Information 5310-00-807-1473

Packaging Data 5310-00-807-1473

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-807-1473 30 Records

Contracting Technical Data File (CTDF) 5310-00-807-1473 February 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
