5310-00-807-1472

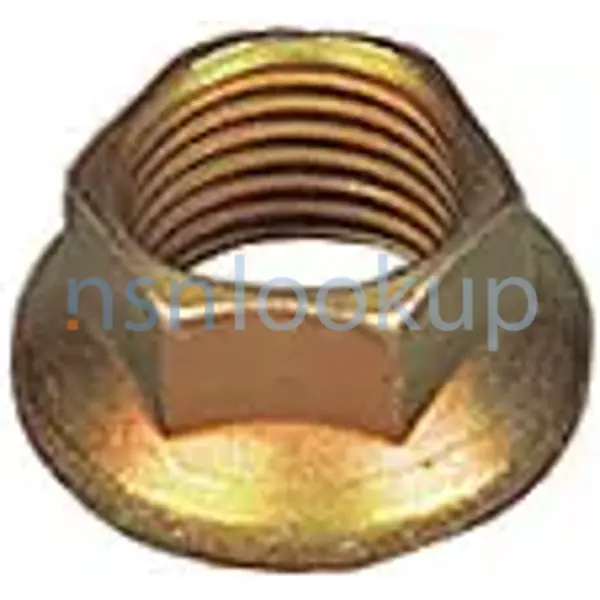

Hexagon Extended Washer Self-Locking Nut

5310008071472 008071472 H14L06 FN12M-62 984023 75523-003 AS8600B MS21042L06 P26039 MN16PJ06 30-297-665-03 000004001330000 000004001420000 RM52LH3324-62 333-1422-040 Z00.N5415371130 T98S632 MS21042C06 10121714 5310PL0150571

A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Hexagon Extended Washer Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
November 2023

NATO Update Count
107

NATO Data Quality

ACTA Style A294 for 5310-00-807-1472 1/1 — NSN 5310-00-807-1472 (Identification) 1/1

Marketplace 5310-00-807-1472

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 15 HD NS

Subscribe to View Vendor Details...

T98S632 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 200 HD NS

Subscribe to View Vendor Details...

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 42 HD NS

Subscribe to View Vendor Details...

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 66 HD NS

Subscribe to View Vendor Details...

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 700 HD NS

Subscribe to View Vendor Details...

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 552 HD NS

Subscribe to View Vendor Details...

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 175 HD NS

MS-21042-L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 12 HD NS

Subscribe to View Vendor Details...

MS21042-L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 110 HD NS

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 236 HD NS

Subscribe to View Vendor Details...

Updated Today

MS21042L06 NUT 780 HD NS

Subscribe to View Vendor Details...

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 32 HD NS

Subscribe to View Vendor Details...

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 16029 HD NS

Subscribe to View Vendor Details...

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 51 HD NS

Subscribe to View Vendor Details...

MS21042-L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 480 HD NS

H14L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 19 HD NS

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 10 HD NS

Subscribe to View Vendor Details...

MS21042-L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 63 HD NS

MS21042C06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 10 HD NS

MS21042-C06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 7 HD NS

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 246 HD NS

Subscribe to View Vendor Details...

MS21042L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 5168 HD NS

H14L06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 5168 HD NS

Subscribe to View Vendor Details...

008071472.5310 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 100 HD NS

Updated Every Day

5310-00-807-1472 RQST NE

Updated Every Day

5310-00-807-1472 RQST

Updated Every Day

5310-00-807-1472 RQST NE

Restrictions 5310-00-807-1472

5310-00-807-1472 is a Hexagon Extended Washer Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-807-1472

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-807-1472

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBD; AMC 1 AMSC G IMC Z IMCACTY CD

MOE Rule:: BGX1
Effective Date:: 1 Apr 2006
Former MOE Rule:: BKZ1; AMC 1 AMSC G

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FGGI)
Effective Date:: 1 Aug 2007
Former MOE Rule:: FXGI; AMC 1 AMSC G IMC Z IMCACTY TG

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEHXHD; AMC 1 AMSC G IMC Z IMCACTY GH

Bosnia and Herzegovina (VB01)
Effective Date:: 1 Oct 2013

Sweden (VK01)
Effective Date:: 1 Feb 2017

Finland (WF01)
Effective Date:: 1 Jul 2009

Lithuania (WI01)
Effective Date:: 1 Jan 2010

Slovenia (WL01)
Effective Date:: 1 Apr 2006

Poland (WP01)
Effective Date:: 1 Feb 2005

Romania (WR01)
Effective Date:: 1 Feb 2012

Bulgaria (WU01)
Effective Date:: 1 Nov 2002

Czech Republic (WZ01)
Effective Date:: 1 Jan 2010

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Jun 2000

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5310-00-807-1472

Part Number
Manufacturer
Status
MS21042L06: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
FN12M-62: 56878 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
984023: F0754 - Safran Martin-Baker France (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
75523-003: 52969 - Ceradyne, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
AS8600B: 60119 - Monadnock Company, The (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
MS21042L06: A0126 - Leonardo Spa Helicopters Division - (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
H14L06: 15653 - Howmet Global Fastening Systems Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
P26039: D1131 - Autoflug Gmbh (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
MN16PJ06: C4293 - Fairchild Fasteners Europe - Vsd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
H14L06: K1678 - Fairchild Fasteners Uk Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
30-297-665-03: K5294 - Ge Aviation Systems Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
000004001330000: F0554 - Aresia-Valenton (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
MN16PJ06: 73197 - Hi-Shear Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MN16PJ06: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
H14L06: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
000004001420000: F0554 - Aresia-Valenton (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
MS21042L06: K0668 - Leonardo Uk Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
MN16PJ06: L4528 - Lisi Aerospace Canada Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
H14L06: 75237 - Howmet Global Fastening Systems Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
RM52LH3324-62: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
333-1422-040: 95105 - Rockwell Collins, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
H14L06: F6033 - Tecnotec Sarl (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
Z00.N5415371130: F0086 - Daher Aerospace - Ex Socata (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
H14L06: K6405 - Kaynar Microdot Aerospace (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
AS8600B: U1653 - Society Of British Aerospace (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
H14L06: F7652 - Klx Aerospace Solutions Ii Sas (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
T98S632: 11815 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS21042C06: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MS21042L06: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
10121714: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL0150571: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
H14L06: FB009 - Boeing Distribution Services Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 4
MS21042L06: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
AS8600B: 0U583 - Sae International (Active); Advisory Reference; RNCC C RNVC 1 DAC 3

Datasheet 5310-00-807-1472

Characteristic
Specifications
FIIG: A021A0
Criticality Code Justification [CRTL]: Feat
Hardness Rating [CQFM]: 49.0 Rockwell C Maximum
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.138 Inches
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Lubrication [ABAJ]: Dry Film Lubricant
Overall Height [ABKW]: 0.115 Inches Minimum And 0.141 Inches Maximum
Special Features [FEAT]: Nut Self-Locking
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Quantity Per Inch [CMLP]: 32
Thread Series [BZRR]: Unjc
Washer Outside Diameter [AAVX]: 0.244 Inches Maximum
Washer Thickness [ADEM]: 0.010 Inches Minimum
Width Across Flats [ASDB]: 0.181 Inches Minimum And 0.190 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall
Temp Rating [AZKQ]: 450.0 Deg Fahrenheit Nominal

Weapon Systems (WSDC) 5310-00-807-1472

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-807-1472

Last Stock Position:: 2169200 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-807-1472

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); HD; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); HD; Subscribe; 1
Feb 2020: Department of the Army (DA); HD; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

BJ: Rotary Wing Aircraft
AH-64 Airframe

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

KT

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Operational Test:

0

Physical Category:

1: Bin

Similar Supply Items to 5310-00-807-1472

Freight Information 5310-00-807-1472

5310-00-807-1472 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-807-1472 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-807-1472 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-807-1472 is not classified as a special type of cargo when transported by water. 5310-00-807-1472 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-807-1472

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-807-1472 11 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE5EC18F0190: 31 Aug 2018; Subscribe; 2; Subscribe; Subscribe
SPE5EC16D00020041: 03 Aug 2017; Subscribe; 274; Subscribe; Subscribe
SPE5EC16D00020031: 04 Jan 2017; Subscribe; 26; Subscribe; Subscribe
SPE5EC16D00020029: 18 Dec 2016; Subscribe; 315; Subscribe; Subscribe
SPE5EC16D00020026: 16 Sep 2016; Subscribe; 131; Subscribe; Subscribe
SPE5EC16D00020016: 02 Jun 2016; Subscribe; 229; Subscribe; Subscribe
SPE5EC16M0227: 02 Feb 2016; Subscribe; 155; Subscribe; Subscribe
SPE5EC16M0033: 08 Oct 2015; Subscribe; 675; Subscribe; Subscribe
SPE5EC16M0006: 02 Oct 2015; Subscribe; 30; Subscribe; Subscribe
SPE5EC15M0487: 07 Apr 2015; Subscribe; 187; Subscribe; Subscribe
SPE5EC14M0711: 17 Sep 2014; Subscribe; 127; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-807-1472 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: Y
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-807-1472

Related Documents 5310-00-807-1472 5+ Documents (More...)

Restrictions 5310-00-807-1472

Import and Export 5310-00-807-1472

End Users 5310-00-807-1472

Approved Sources 5310-00-807-1472

Datasheet 5310-00-807-1472

Weapon Systems (WSDC) 5310-00-807-1472

DLA Procurement Analysis 5310-00-807-1472

Management Data 5310-00-807-1472

Army

Air Force

Navy

Marine Corps

Similar Supply Items to 5310-00-807-1472

Freight Information 5310-00-807-1472

Packaging Data 5310-00-807-1472

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-807-1472 11 Records

Contracting Technical Data File (CTDF) 5310-00-807-1472 February 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
