5310-00-807-1471

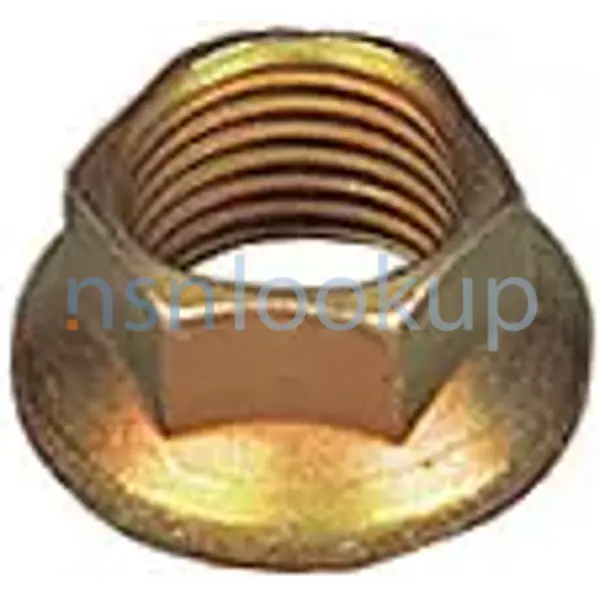

Hexagon Extended Washer Self-Locking Nut

5310008071471 008071471 6343-0600 334-0002-050 MS21042-L04 000004001320000 C11999-0010 MS21042L04 HL04 T98S440 MS210421L04 FN12M-40 2500929-2 333-1422-020 10121713 5310PL1369636 5310PL0564291

A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Hexagon Extended Washer Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
November 2023

NATO Update Count
79

NATO Data Quality

ACTA Style A294 for 5310-00-807-1471 1/1 — NSN 5310-00-807-1471 (Identification) 1/1

Marketplace 5310-00-807-1471

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 1100 HD NS

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 84 HD NS

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 76 HD NS

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 197 HD NS

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 318 HD NS

MS21042-L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 221 HD NS

HL375-6AW NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 84 HD NS

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

Subscribe to View Vendor Details...

Updated 6 Days Ago

MS21042L04 NUT 500 HD NS

MS21042L04 NUT 100 HD NS

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 1 HD NS

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 100 HD NS

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 4 HD NS

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 408 HD NS

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 750 HD NS

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 276 HD NS

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 197 HD NS

Subscribe to View Vendor Details...

MS21042L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 327 HD NS

Subscribe to View Vendor Details...

2500929-2 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 50 HD NS

MS210421L04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 50 HD NS

FN12M-40 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 50 HD NS

6343-0600 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 50 HD NS

HL04 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 50 HD NS

334-0002-050 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 50 HD NS

333-1422-020 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 50 HD NS

5310-00-807-1471 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 50 HD NS

C11999-0010 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 50 HD NS

Updated Every Day

5310-00-807-1471 RQST NE

Updated Every Day

5310-00-807-1471 RQST

Updated Every Day

5310-00-807-1471 RQST NE

Restrictions 5310-00-807-1471

5310-00-807-1471 is a Hexagon Extended Washer Self-Locking Nut that is an aviation critical safety item or flight safety critical aircraft part. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-807-1471

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-807-1471

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJVHXHSHD; AMC 1 AMSC G IMC Z IMCACTY GH

Bosnia and Herzegovina (VB01)
Effective Date:: 1 Oct 2013

Sweden (VK01)
Effective Date:: 1 Feb 2017

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Jul 2009

Lithuania (WI01)
Effective Date:: 1 Jan 2010

Slovenia (WL01)
Effective Date:: 1 Nov 2008

Poland (WP01)
Effective Date:: 1 Feb 2005

Romania (WR01)
Effective Date:: 1 Feb 2012

Bulgaria (WU01)
Effective Date:: 1 Nov 2002

Czech Republic (WZ01)
Effective Date:: 1 Dec 2006

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Jul 1997

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Jan 2014

Approved Sources 5310-00-807-1471

Part Number
Manufacturer
Status
MS21042L04: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
000004001320000: F0554 - Aresia-Valenton (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
C11999-0010: U8539 - Rosemount Aerospace Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042L04: 3B1R2 - Bell Boeing Joint Project Office (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042L04: 78022 - Northrop Grumman Systems Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042L04: 17446 - Huck International, Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042L04: 27238 - Bristol Industries, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042L04: 77272 - The Boeing Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042L04: 78286 - Sikorsky Aircraft Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042L04: 019L2 - Esna, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042L04: A3856 - Paolo Astori Spa (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042L04: 81205 - The Boeing Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042L04: A0126 - Leonardo Spa Helicopters Division - (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
HL04: 75237 - Howmet Global Fastening Systems Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
T98S440: 11815 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS210421L04: 2N335 - Pattonair Usa, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
FN12M-40: 56878 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
2500929-2: 07187 - Honeywell International Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
333-1422-020: 95105 - Rockwell Collins, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
MS21042L04: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
10121713: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL1369636: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL0564291: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
6343-0600: 96487 - Valcor Engineering Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
334-0002-050: 95105 - Rockwell Collins, Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 9
MS21042-L04: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 5310-00-807-1471

Characteristic
Specifications
FIIG: A021A0
Criticality Code Justification [CRTL]: Feat
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.112 Inches
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Lubrication [ABAJ]: Dry Film Lubricant
Overall Height [ABKW]: 0.103 Inches Minimum And 0.125 Inches Maximum
Special Features [FEAT]: The Item Is A Flight Safety Critical Aircraft Part (Fscap).
Washer Outside Diameter [AAVX]: 0.206 Inches Maximum
Washer Thickness [ADEM]: 0.010 Inches Minimum
Width Across Flats [ASDB]: 0.150 Inches Minimum And 0.158 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall And Chromate Overall
Temp Rating [AZKQ]: 450.0 Deg Fahrenheit Nominal
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Series [BZRR]: Unjc
Thread Quantity Per Inch [CMLP]: 40

Weapon Systems (WSDC) 5310-00-807-1471

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-807-1471

Last Stock Position:: 165100 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-807-1471

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); HD; Subscribe; 1
Dec 2021: Department of the Air Force (DF); HD; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: Department of the Air Force (DF); HD; Subscribe; 1
Feb 2020: Department of the Army (DA); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
Department of the Air Force (DF): F; R; Refer To Afto 95 Reqd; AFTO 95 REQD

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

BJ: Rotary Wing Aircraft
AH-64 Airframe

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

Similar Supply Items to 5310-00-807-1471

Freight Information 5310-00-807-1471

5310-00-807-1471 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-807-1471 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-807-1471 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-807-1471 is not classified as a special type of cargo when transported by water. 5310-00-807-1471 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-807-1471

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-807-1471 25 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A722F8709: 06 May 2022; Subscribe; 253; Subscribe; Subscribe
SPE4A722F8709: 06 May 2022; Subscribe; 253; Subscribe; Subscribe
SPE5EC19F0030: 27 Nov 2018; Subscribe; 21; Subscribe; Subscribe
SPE5EC19F0026: 22 Nov 2018; Subscribe; 56; Subscribe; Subscribe
SPE5EC19F0001: 03 Oct 2018; Subscribe; 385; Subscribe; Subscribe
SPE5EC18F0183: 17 Aug 2018; Subscribe; 689; Subscribe; Subscribe
SPE5EC16D00030052: 20 Sep 2017; Subscribe; 103; Subscribe; Subscribe
SPE5EC16D00030046: 02 Aug 2017; Subscribe; 169; Subscribe; Subscribe
SPE5EC16D00030036: 01 Mar 2017; Subscribe; 89; Subscribe; Subscribe
SPE5EC16D00030032: 04 Jan 2017; Subscribe; 195; Subscribe; Subscribe
SPE5EC16D00030030: 07 Dec 2016; Subscribe; 47; Subscribe; Subscribe
SPE5EC16D00030029: 09 Nov 2016; Subscribe; 54; Subscribe; Subscribe
SPE5EC16D00030028: 02 Nov 2016; Subscribe; 93; Subscribe; Subscribe
SPE5EC16D00030026: 01 Sep 2016; Subscribe; 31; Subscribe; Subscribe
SPE5EC16D00030025: 31 Aug 2016; Subscribe; 15; Subscribe; Subscribe
SPE5EC16D0003002301: 29 Jul 2016; Subscribe; 16; Subscribe; Subscribe
SPE5EC16D0003002101: 13 Jul 2016; Subscribe; 50; Subscribe; Subscribe
SPE5EC16D00030019: 29 Jun 2016; Subscribe; 20; Subscribe; Subscribe
SPE5EC16D00030017: 02 Jun 2016; Subscribe; 281; Subscribe; Subscribe
SPE5EC16D00030013: 04 May 2016; Subscribe; 495; Subscribe; Subscribe
SPE5EC16D00030011: 30 Mar 2016; Subscribe; 212; Subscribe; Subscribe
SPE5EC16D00030009: 28 Mar 2016; Subscribe; 144; Subscribe; Subscribe
SPE5EC15M0263P00001: 14 Jan 2015; Subscribe; 50; Subscribe; Subscribe
SPE5EC15M0003P00001: 01 Oct 2014; Subscribe; 2; Subscribe; Subscribe
SPE5EC14M0252: 03 Apr 2014; Subscribe; 353; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-807-1471 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: Y
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-807-1471

Related Documents 5310-00-807-1471 5+ Documents (More...)

Restrictions 5310-00-807-1471

Import and Export 5310-00-807-1471

End Users 5310-00-807-1471

Approved Sources 5310-00-807-1471

Datasheet 5310-00-807-1471

Weapon Systems (WSDC) 5310-00-807-1471

DLA Procurement Analysis 5310-00-807-1471

Management Data 5310-00-807-1471

Army

Air Force

Navy

Marine Corps

Similar Supply Items to 5310-00-807-1471

Freight Information 5310-00-807-1471

Packaging Data 5310-00-807-1471

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-807-1471 25 Records

Contracting Technical Data File (CTDF) 5310-00-807-1471 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
