5310-00-807-1467

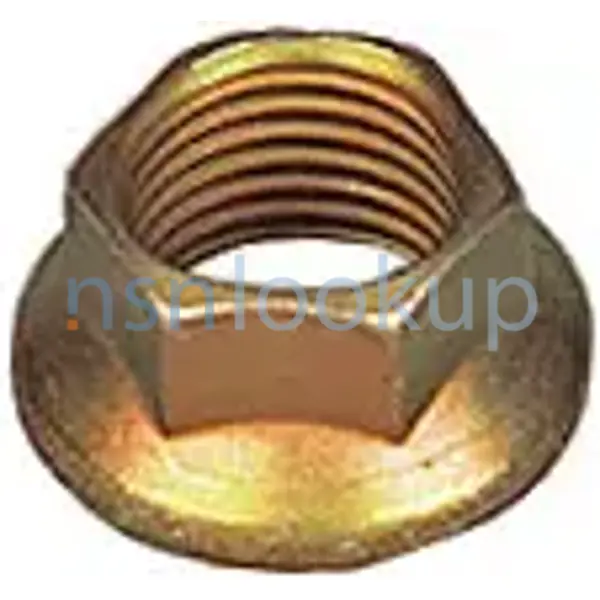

Hexagon Extended Washer Self-Locking Nut

5310008071467 008071467 MILN25027 MS21042N3 NAS1291-3 21-FKF-1032 525-628-90331 NAS1291X3 938.07.68.504 MN16-3 FN12AA-02 MS21042-3 723009731700 M2122366 T98S1032CPC F52LH3324-02 23185111200 163432 5310PL0797970 5310PL1640751 10121711

A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Hexagon Extended Washer Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
November 2023

NATO Update Count
111

NATO Data Quality

ACTA Style A294 for 5310-00-807-1467 1/1 — NSN 5310-00-807-1467 (Identification) 1/1

Marketplace 5310-00-807-1467

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

T98S1032CPC NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 413 HD NS

MN16-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 3500 HD NS

10121711 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 413 HD NS

F52LH3324-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 3500 HD NS

938.07.68.504 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 3500 HD NS

5310008071467 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 413 HD NS

Subscribe to View Vendor Details...

MS21042-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 538 HD NS

Subscribe to View Vendor Details...

MS21042-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 109 HD NS

Subscribe to View Vendor Details...

MS21042-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 42 HD NS

Subscribe to View Vendor Details...

MS21042-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 6463 HD NS

NAS1291-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 95 HD NS

Subscribe to View Vendor Details...

MS21042-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 97 HD NS

MIL-N-25027 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 265 HD NS

NAS1291X3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 431 HD NS

Subscribe to View Vendor Details...

MS21042-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 1 HD NS

Subscribe to View Vendor Details...

MS21042-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 155 HD NS

Subscribe to View Vendor Details...

TM1-2840-260-23PT53HUEY NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS21042-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 1 HD NS

Subscribe to View Vendor Details...

NAS1291-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

MS21042-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS21042-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 20 HD NS

Subscribe to View Vendor Details...

NAS1291X3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 34 HD NS

Subscribe to View Vendor Details...

MS21042-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 100 HD NS

Subscribe to View Vendor Details...

NAS1291-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 15 HD NS

MS21042-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 225 HD NS

Subscribe to View Vendor Details...

MS19068-092 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 30 HD NS

MS21042-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 289 HD NS

F52LH3324-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 403 HD NS

NAS1291-3 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 19 HD NS

Updated Every Day

5310-00-807-1467 RQST NE

Updated Every Day

5310-00-807-1467 RQST

Updated Every Day

5310-00-807-1467 RQST NE

Restrictions 5310-00-807-1467

5310-00-807-1467 is a Hexagon Extended Washer Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-807-1467

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-807-1467

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: CLBFBDAZAJCT; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G180)
Effective Date:: 1 Sep 1993; AMC 0 AMSC 0 AAC B

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJBHD; AMC 1 AMSC G IMC Z IMCACTY GH

MOE Rule:: RGX1
Effective Date:: 1 Apr 2006
Former MOE Rule:: R478
Supplementary Collaborators:: TR; AMC 1 AMSC G

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Jul 2009

Lithuania (WI01)
Effective Date:: 1 Jan 2010

Poland (WP01)
Effective Date:: 1 Apr 2003

Romania (WR01)
Effective Date:: 1 Feb 2012

Bulgaria (WU01)
Effective Date:: 1 Nov 2002

Czech Republic (WZ01)
Effective Date:: 1 Dec 2006

MOE Rule:: X002
Effective Date:: 1 Apr 1991

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

South Africa (ZD01)
Effective Date:: 1 Oct 2009

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5310-00-807-1467

Part Number
Manufacturer
Status
NAS1291X3: 80205 - National Aerospace Standards (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC E
MS21042-3: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
MILN25027: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
MS21042N3: 8V613 - The Boeing Company (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
NAS1291X3: K0668 - Leonardo Uk Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
938.07.68.504: S4080 - Pilatus Aircraft Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
MN16-3: 73197 - Hi-Shear Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MN16-3: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
MN16-3: L4528 - Lisi Aerospace Canada Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
FN12AA-02: 56878 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
MN16-3: C4293 - Fairchild Fasteners Europe - Vsd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
MS21042-3: A0126 - Leonardo Spa Helicopters Division - (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
723009731700: A1140 - Leonardo Spa Divisione Sistemi Di (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS21042-3: K0407 - Rbsl Washington (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
M2122366: 1045G - Aero Vodochody A.S. (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
T98S1032CPC: 11815 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
F52LH3324-02: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5310008071467: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
23185111200: S0522 - Tadiran Ltd (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
MS21042-3: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
163432: 71791 - Curtiss-Wright Controls, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5310PL0797970: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL1640751: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
10121711: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
NAS1291-3: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
21-FKF-1032: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
525-628-90331: 99193 - Honeywell International Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 5310-00-807-1467

Characteristic
Specifications
FIIG: A021A0
Hardness Rating [CQFM]: 49.0 Rockwell C Maximum
End Item Identification [AGAV]: Mrap - Cougar
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.190 Inches
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Lubrication [ABAJ]: Soluble Lubricant
Overall Height [ABKW]: 0.154 Inches Minimum And 0.188 Inches Maximum
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Series [BZRR]: Unjf
Thread Quantity Per Inch [CMLP]: 32
Washer Outside Diameter [AAVX]: 0.330 Inches Maximum
Washer Thickness [ADEM]: 0.015 Inches Minimum
Width Across Flats [ASDB]: 0.243 Inches Minimum And 0.252 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium And Chromate Overall
Temp Rating [AZKQ]: 450.0 Deg Fahrenheit Nominal

Weapon Systems (WSDC) 5310-00-807-1467

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-807-1467

Last Stock Position:: 1038500 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-807-1467

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); HD; Subscribe; 1
Mar 2020: Department of the Air Force (DF); HD; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

BJ: Rotary Wing Aircraft
AH-64 Airframe

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5310-00-807-1467

5310-33-205-1703 5310-14-404-0587 5310-99-647-1109 5310-14-274-2470 5310-19-004-6142 5310-12-143-0603 5310-12-170-9545 5310-14-482-4495 5310-14-440-5096 5310-12-359-9537 5310-99-718-0538 5310-12-325-6443 5310-12-333-5547 5310-12-364-4337 5310-12-348-5474 5310-14-481-2700 5310-12-388-2949 5310-14-222-0546

Freight Information 5310-00-807-1467

5310-00-807-1467 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-807-1467 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-807-1467 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-807-1467 is not classified as a special type of cargo when transported by water. 5310-00-807-1467 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-807-1467

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-807-1467 Most Recent 132 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A224F0921: 10 Nov 2023; Subscribe; 169; Subscribe; Subscribe
SPE4A224F0920P00001: 10 Nov 2023; Subscribe; 3; Subscribe; Subscribe
SPE4A224F0886: 08 Nov 2023; Subscribe; 17; Subscribe; Subscribe
SPE4A224F0887: 08 Nov 2023; Subscribe; 190; Subscribe; Subscribe
SPE4A223F8076: 30 Aug 2023; Subscribe; 293; Subscribe; Subscribe
SPE4A223F8076: 30 Aug 2023; Subscribe; 293; Subscribe; Subscribe
SPE4A223F3882P00001: 02 Mar 2023; Subscribe; 3; Subscribe; Subscribe
SPE4A223F3883: 02 Mar 2023; Subscribe; 180; Subscribe; Subscribe
SPE4A223F3884: 02 Mar 2023; Subscribe; 309; Subscribe; Subscribe
SPE4A223F3882P00001: 02 Mar 2023; Subscribe; 3; Subscribe; Subscribe
SPE4A223F3883: 02 Mar 2023; Subscribe; 180; Subscribe; Subscribe
SPE4A223F3884: 02 Mar 2023; Subscribe; 309; Subscribe; Subscribe
SPE4A223F3376: 16 Feb 2023; Subscribe; 547.02; Subscribe; Subscribe
SPE4A223F3374: 16 Feb 2023; Subscribe; 50.02; Subscribe; Subscribe
SPE4A223F3375: 16 Feb 2023; Subscribe; 150.02; Subscribe; Subscribe
SPE4A223F3376: 16 Feb 2023; Subscribe; 547.02; Subscribe; Subscribe
SPE4A223F3374: 16 Feb 2023; Subscribe; 50.02; Subscribe; Subscribe
SPE4A223F3373: 16 Feb 2023; Subscribe; 3.5; Subscribe; Subscribe
SPE4A223F3375: 16 Feb 2023; Subscribe; 150.02; Subscribe; Subscribe
SPE4A223F3373P00001: 16 Feb 2023; Subscribe; 4; Subscribe; Subscribe
SPE4A223F3373P00001: 16 Feb 2023; Subscribe; 4; Subscribe; Subscribe
SPE4A223F2539P00001: 10 Jan 2023; Subscribe; 378; Subscribe; Subscribe
SPE4A223F2539P00001: 10 Jan 2023; Subscribe; 378; Subscribe; Subscribe
SPE4A223F2538: 10 Jan 2023; Subscribe; 85; Subscribe; Subscribe
SPE4A223F2538: 10 Jan 2023; Subscribe; 85; Subscribe; Subscribe
SPE4A223F2539: 10 Jan 2023; Subscribe; 378; Subscribe; Subscribe
SPE4A222F7020: 22 Jul 2022; Subscribe; 110; Subscribe; Subscribe
SPE4A222F7021: 22 Jul 2022; Subscribe; 707; Subscribe; Subscribe
SPE4A222F5461: 20 May 2022; Subscribe; 83; Subscribe; Subscribe
SPE4A222F5462: 20 May 2022; Subscribe; 193; Subscribe; Subscribe
SPE4A222F5461: 20 May 2022; Subscribe; 83; Subscribe; Subscribe
SPE4A222F5462: 20 May 2022; Subscribe; 193; Subscribe; Subscribe
SPE4A222F4409: 14 Apr 2022; Subscribe; 277; Subscribe; Subscribe
SPE4A222F4410: 14 Apr 2022; Subscribe; 353; Subscribe; Subscribe
SPE4A222F4411: 14 Apr 2022; Subscribe; 510; Subscribe; Subscribe
SPE4A222F4412: 14 Apr 2022; Subscribe; 933; Subscribe; Subscribe
SPE4A222F4409: 14 Apr 2022; Subscribe; 277; Subscribe; Subscribe
SPE4A222F4410: 14 Apr 2022; Subscribe; 353; Subscribe; Subscribe
SPE4A222F4411: 14 Apr 2022; Subscribe; 510; Subscribe; Subscribe
SPE4A222F4412: 14 Apr 2022; Subscribe; 933; Subscribe; Subscribe
SPE4A222F4147: 30 Mar 2022; Subscribe; 116; Subscribe; Subscribe
SPE4A222F4148: 30 Mar 2022; Subscribe; 489; Subscribe; Subscribe
SPE4A222F4145: 30 Mar 2022; Subscribe; 89; Subscribe; Subscribe
SPE4A222F4146: 30 Mar 2022; Subscribe; 114; Subscribe; Subscribe
SPE4A222F4148: 30 Mar 2022; Subscribe; 489; Subscribe; Subscribe
SPE4A222F4145: 30 Mar 2022; Subscribe; 89; Subscribe; Subscribe
SPE4A222F4146: 30 Mar 2022; Subscribe; 114; Subscribe; Subscribe
SPE4A222F4147: 30 Mar 2022; Subscribe; 116; Subscribe; Subscribe
SPE4A222F3410: 22 Feb 2022; Subscribe; 20; Subscribe; Subscribe
SPE4A222F3411: 22 Feb 2022; Subscribe; 77; Subscribe; Subscribe
SPE4A222F3412: 22 Feb 2022; Subscribe; 83; Subscribe; Subscribe
SPE4A222F3413: 22 Feb 2022; Subscribe; 151; Subscribe; Subscribe
SPE4A222F3411: 22 Feb 2022; Subscribe; 77; Subscribe; Subscribe
SPE4A222F3412: 22 Feb 2022; Subscribe; 83; Subscribe; Subscribe
SPE4A222F3413: 22 Feb 2022; Subscribe; 151; Subscribe; Subscribe
SPE4A222F3410: 22 Feb 2022; Subscribe; 20; Subscribe; Subscribe
SPE4A222F2878: 10 Feb 2022; Subscribe; 76; Subscribe; Subscribe
SPE4A222F2879: 10 Feb 2022; Subscribe; 84; Subscribe; Subscribe
SPE4A222F2877: 10 Feb 2022; Subscribe; 16; Subscribe; Subscribe
SPE4A222F2880: 10 Feb 2022; Subscribe; 236; Subscribe; Subscribe
SPE4A222F2878: 10 Feb 2022; Subscribe; 76; Subscribe; Subscribe
SPE4A222F2880: 10 Feb 2022; Subscribe; 236; Subscribe; Subscribe
SPE4A222F2877: 10 Feb 2022; Subscribe; 16; Subscribe; Subscribe
SPE4A222F2879: 10 Feb 2022; Subscribe; 84; Subscribe; Subscribe
SPE4A222F2455: 13 Jan 2022; Subscribe; 88; Subscribe; Subscribe
SPE4A222F2456: 13 Jan 2022; Subscribe; 106; Subscribe; Subscribe
SPE4A222F2454: 13 Jan 2022; Subscribe; 18; Subscribe; Subscribe
SPE4A222F2457: 13 Jan 2022; Subscribe; 179; Subscribe; Subscribe
SPE4A222F2457: 13 Jan 2022; Subscribe; 179; Subscribe; Subscribe
SPE4A222F2455: 13 Jan 2022; Subscribe; 88; Subscribe; Subscribe
SPE4A222F2454: 13 Jan 2022; Subscribe; 18; Subscribe; Subscribe
SPE4A222F2456: 13 Jan 2022; Subscribe; 106; Subscribe; Subscribe
SPE4A222F1565: 24 Nov 2021; Subscribe; 61; Subscribe; Subscribe
SPE4A222F1566: 24 Nov 2021; Subscribe; 188; Subscribe; Subscribe
SPE4A222F1565: 24 Nov 2021; Subscribe; 61; Subscribe; Subscribe
SPE4A222F1566: 24 Nov 2021; Subscribe; 188; Subscribe; Subscribe
SPE4A222F1010: 04 Nov 2021; Subscribe; 15; Subscribe; Subscribe
SPE4A222F1012: 04 Nov 2021; Subscribe; 597; Subscribe; Subscribe
SPE4A222F1011: 04 Nov 2021; Subscribe; 85; Subscribe; Subscribe
SPE4A222F1010: 04 Nov 2021; Subscribe; 15; Subscribe; Subscribe
SPE4A222F1011: 04 Nov 2021; Subscribe; 85; Subscribe; Subscribe
SPE4A222F1012: 04 Nov 2021; Subscribe; 597; Subscribe; Subscribe
SPE4A222F0003: 14 Oct 2021; Subscribe; 110; Subscribe; Subscribe
SPE4A222F0001: 14 Oct 2021; Subscribe; 22; Subscribe; Subscribe
SPE4A222F0002: 14 Oct 2021; Subscribe; 94; Subscribe; Subscribe
SPE4A222F0004: 14 Oct 2021; Subscribe; 125; Subscribe; Subscribe
SPE4A222F0004: 14 Oct 2021; Subscribe; 125; Subscribe; Subscribe
SPE4A222F0002: 14 Oct 2021; Subscribe; 94; Subscribe; Subscribe
SPE4A222F0003: 14 Oct 2021; Subscribe; 110; Subscribe; Subscribe
SPE4A222F0001: 14 Oct 2021; Subscribe; 22; Subscribe; Subscribe
SPE4A221F6674: 01 Sep 2021; Subscribe; 27; Subscribe; Subscribe
SPE4A221F6676: 01 Sep 2021; Subscribe; 139; Subscribe; Subscribe
SPE4A221F6677: 01 Sep 2021; Subscribe; 430; Subscribe; Subscribe
SPE4A221F6675: 01 Sep 2021; Subscribe; 30; Subscribe; Subscribe
SPE4A221F6674: 01 Sep 2021; Subscribe; 27; Subscribe; Subscribe
SPE4A221F6675: 01 Sep 2021; Subscribe; 30; Subscribe; Subscribe
SPE4A221F6676: 01 Sep 2021; Subscribe; 139; Subscribe; Subscribe
SPE4A221F6677: 01 Sep 2021; Subscribe; 430; Subscribe; Subscribe
SPE4A221F6042: 12 Aug 2021; Subscribe; 91; Subscribe; Subscribe
SPE4A221F6044: 12 Aug 2021; Subscribe; 195; Subscribe; Subscribe
SPE4A221F6041: 12 Aug 2021; Subscribe; 23; Subscribe; Subscribe
SPE4A221F6043: 12 Aug 2021; Subscribe; 92; Subscribe; Subscribe
SPE4A221F6041: 12 Aug 2021; Subscribe; 23; Subscribe; Subscribe
SPE4A221F6043: 12 Aug 2021; Subscribe; 92; Subscribe; Subscribe
SPE4A221F6042: 12 Aug 2021; Subscribe; 91; Subscribe; Subscribe
SPE4A221F6044: 12 Aug 2021; Subscribe; 195; Subscribe; Subscribe
SPE5EC18F0105: 15 Apr 2018; Subscribe; 7; Subscribe; Subscribe
SPE5EC18F0103: 08 Apr 2018; Subscribe; 176; Subscribe; Subscribe
SPE5EC18F0099: 01 Apr 2018; Subscribe; 1151; Subscribe; Subscribe
SPE5EC18F0068: 05 Feb 2018; Subscribe; 77; Subscribe; Subscribe
SPE5EC18F0058: 21 Jan 2018; Subscribe; 426; Subscribe; Subscribe
SPE5EC18F0047: 31 Dec 2017; Subscribe; 365; Subscribe; Subscribe
SPE5EC18F0036: 03 Dec 2017; Subscribe; 2120; Subscribe; Subscribe
SPE5EC18F0003: 10 Oct 2017; Subscribe; 82; Subscribe; Subscribe
SPE5EC16D00030053: 28 Sep 2017; Subscribe; 750; Subscribe; Subscribe
SPE5EC16D00030045: 11 Jul 2017; Subscribe; 500; Subscribe; Subscribe
SPE5EC16D00030039: 21 May 2017; Subscribe; 239; Subscribe; Subscribe
SPE5EC16D0003003402: 16 Jan 2017; Subscribe; 28; Subscribe; Subscribe
SPE5EC16D00030033: 06 Jan 2017; Subscribe; 1251; Subscribe; Subscribe
SPE5EC16D00030027: 05 Sep 2016; Subscribe; 177; Subscribe; Subscribe
SPE5EC16D0003002201: 17 Jul 2016; Subscribe; 170; Subscribe; Subscribe
SPE5EC16D00030018: 05 Jun 2016; Subscribe; 25; Subscribe; Subscribe
SPE5EC16D0003000801: 28 Mar 2016; Subscribe; 2170; Subscribe; Subscribe
SPE5EC16D0003000701: 10 Mar 2016; Subscribe; 560; Subscribe; Subscribe
SPE5EC16D0003000601: 10 Mar 2016; Subscribe; 34; Subscribe; Subscribe
SPE5EC15M0619: 08 Jun 2015; Subscribe; 2100; Subscribe; Subscribe
SPE5EC14M0749: 29 Sep 2014; Subscribe; 10000; Subscribe; Subscribe
SPE5EC14M0068P00001: 13 Jan 2014; Subscribe; 2500; Subscribe; Subscribe
SPETA614M0020: 12 Dec 2013; Subscribe; 145; Subscribe; Subscribe
SPE5EC14M0029P00002: 14 Nov 2013; Subscribe; 591; Subscribe; Subscribe
SPMWA614M0110P00001: 08 Nov 2013; Subscribe; 1000; Subscribe; Subscribe
SPM5EC13M0499P00005: 24 Jun 2013; Subscribe; 47; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-807-1467 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-807-1467

Related Documents 5310-00-807-1467 5+ Documents (More...)

Restrictions 5310-00-807-1467

Import and Export 5310-00-807-1467

End Users 5310-00-807-1467

Approved Sources 5310-00-807-1467

Datasheet 5310-00-807-1467

Weapon Systems (WSDC) 5310-00-807-1467

DLA Procurement Analysis 5310-00-807-1467

Management Data 5310-00-807-1467

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5310-00-807-1467

Freight Information 5310-00-807-1467

Packaging Data 5310-00-807-1467

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-807-1467 Most Recent 132 Records

Contracting Technical Data File (CTDF) 5310-00-807-1467 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
