5310-00-807-1466

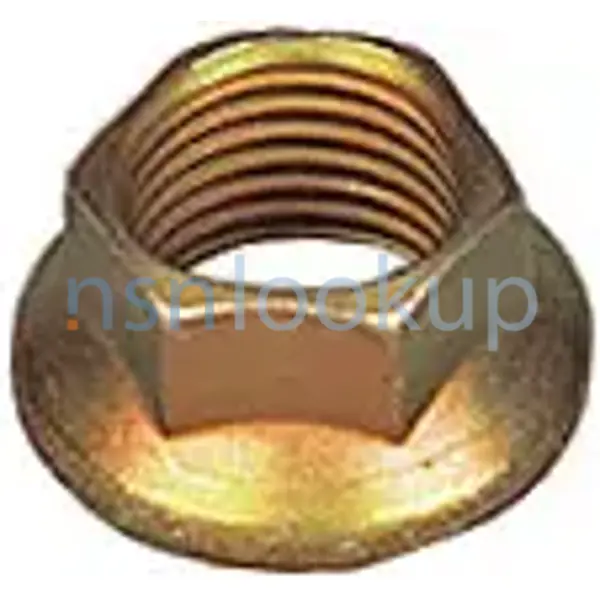

Hexagon Extended Washer Self-Locking Nut

5310008071466 008071466 MS21042-08 MN16-08 H14L08CW T98S832CPC MS20365-C0832A F768 FN12ALA-82 870-0235 002-004115 F52LH3324-82 MS21042-2 NAS1291X08 10121710 5310PL0192121

A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Hexagon Extended Washer Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
September 2025

NATO Update Count
95

NATO Data Quality

5310-00-807-1466 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 5310008071466 008071466 1/2 — 5310-00-807-1466 Photo 1/2

ACTA Style A294 for 5310-00-807-1466 2/2 — NSN 5310-00-807-1466 (Identification) 2/2

Marketplace 5310-00-807-1466

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 12 HD NS

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 780 HD NS

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 21 HD NS

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 663 HD NS

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 104 HD NS

Subscribe to View Vendor Details...

MN16-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 50 HD NS

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 72 HD NS

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 524 HD NS

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 112 HD NS

Subscribe to View Vendor Details...

H14-L08CW NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 302 HD NS

NAS1291X08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 320 HD NS

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 144 HD NS

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 166 HD NS

MS21042-2 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 2 HD NS

Subscribe to View Vendor Details...

TM9-2320-280-24P-21996PDFHUMV NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 30 HD NS

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 60 HD NS

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 1245 HD NS

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 44 HD NS

Subscribe to View Vendor Details...

MS2104208 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 5 HD NS

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 70 HD NS

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 5194 HD NS

Subscribe to View Vendor Details...

MS21042-08 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 79 HD NS

Updated Every Day

5310-00-807-1466 RQST NE

Updated Every Day

5310-00-807-1466 RQST

Updated Every Day

5310-00-807-1466 RQST NE

Restrictions 5310-00-807-1466

5310-00-807-1466 is a Hexagon Extended Washer Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5310-00-807-1466

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-807-1466

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AZCTCLBFBD; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

National Security Agency (DGXK)
Effective Date:: 1 Apr 2006
Former MOE Rule:: DKZ2; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G180)
Effective Date:: 1 Sep 1993; AMC 0 AMSC 0 AAC B

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJVHSHD; AMC 1 AMSC G IMC Z IMCACTY GH

Finland (WF01)
Effective Date:: 1 Jul 2009

Slovenia (WL01)
Effective Date:: 1 Jan 2007

Poland (WP01)
Effective Date:: 1 Apr 2003

Romania (WR01)
Effective Date:: 1 Feb 2012

Czech Republic (WZ01)
Effective Date:: 1 Dec 2006

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5310-00-807-1466

Part Number
Manufacturer
Status
MS21042-08: 77445 - Rtx Corporation (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
MS21042-08: 0PXV4 - The Boeing Company (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
MS21042-08: 3B1R2 - Bell Boeing Joint Project Office (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
MS21042-08: 52661 - Rtx Corporation (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
MS21042-08: 76301 - The Boeing Company (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
MS21042-08: 98897 - Lockheed Martin Corp (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
MS21042-08: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
MS21042-08: 96906 - Military Standards (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
MN16-08: C4293 - Fairchild Fasteners Europe - Vsd (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
H14L08CW: 75237 - Howmet Global Fastening Systems Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MS21042-08: 2N335 - Pattonair Usa, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
T98S832CPC: 11815 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MN16-08: 73197 - Hi-Shear Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS21042-08: 8K112 - Freundlich Supply Company, Inc. (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
H14L08CW: R1120 - Satair A/S (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
MN16-08: R1120 - Satair A/S (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
MS20365-C0832A: 80205 - National Aerospace Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
H14L08CW: 15653 - Howmet Global Fastening Systems Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
F768: 00365 - Tld Ace Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
FN12ALA-82: 56878 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
MS21042-08: 78022 - Northrop Grumman Systems Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MS21042-08: K0407 - Rbsl Washington (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
870-0235: 44940 - Cummins Power Generation Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
002-004115: 26916 - Northrop Grumman Systems Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
F52LH3324-82: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
H14L08CW: F6033 - Tecnotec Sarl (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
H14L08CW: F7652 - Klx Aerospace Solutions Ii Sas (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5310008071466: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
MS21042-2: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
NAS1291X08: 80205 - National Aerospace Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
10121710: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL0192121: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
MS21042-08: 0W6H8 - Northrop Grumman Systems Corp (Active); Advisory Reference; RNCC C RNVC 1 DAC E

Datasheet 5310-00-807-1466

Characteristic
Specifications
FIIG: A021A0
End Item Identification [AGAV]: Mrap Cougar Ambulance
Hardness Rating [CQFM]: 49.0 Rockwell C Maximum
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.164 Inches
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Lubrication [ABAJ]: Soluble Lubricant
Overall Height [ABKW]: 0.125 Inches Minimum And 0.188 Inches Maximum
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Quantity Per Inch [CMLP]: 32
Thread Series [BZRR]: Unjc
Washer Outside Diameter [AAVX]: 0.290 Inches Maximum
Washer Thickness [ADEM]: 0.015 Inches Minimum
Width Across Flats [ASDB]: 0.213 Inches Minimum And 0.221 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium And Chromate Overall
Temp Rating [AZKQ]: 450.0 Deg Fahrenheit Nominal

Weapon Systems (WSDC) 5310-00-807-1466

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-807-1466

Last Stock Position:: 211500 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-807-1466

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); HD; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-274-9377
US Marine Corps (DM): M; 2; Reversal Of Phrase Code H 5310-00-582-5765

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

BJ: Rotary Wing Aircraft
AH-64 Airframe

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

3: Critical for Health and Safety of Personnel

Echelon Management:

B2

Operational Test:

: No Special Procedures

Similar Supply Items to 5310-00-807-1466

Freight Information 5310-00-807-1466

5310-00-807-1466 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-807-1466 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-807-1466 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-807-1466 is not classified as a special type of cargo when transported by water. 5310-00-807-1466 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-807-1466

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-807-1466 10 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPEHA621F0770: 02 Sep 2021; Subscribe; 35; Subscribe; Subscribe
SPEHA621F0770: 02 Sep 2021; Subscribe; 35; Subscribe; Subscribe
SPEHA621F0769: 25 Aug 2021; Subscribe; 35; Subscribe; Subscribe
SPEHA621F0769: 25 Aug 2021; Subscribe; 35; Subscribe; Subscribe
SPEHA621F0690: 12 Aug 2021; Subscribe; 203; Subscribe; Subscribe
SPEHA621F0690: 12 Aug 2021; Subscribe; 203; Subscribe; Subscribe
SPE7L119F3336: 19 Oct 2018; Subscribe; 24; Subscribe; Subscribe
SPE4A718PC680P00002: 13 Jul 2018; Subscribe; 916; Subscribe; Subscribe
SPE5EC15M0464: 30 Mar 2015; Subscribe; 34; Subscribe; Subscribe
SPE5EC15M0303P00001: 26 Jan 2015; Subscribe; 28; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-807-1466 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-807-1466

Related Documents 5310-00-807-1466 5+ Documents (More...)

Restrictions 5310-00-807-1466

Import and Export 5310-00-807-1466

End Users 5310-00-807-1466

Approved Sources 5310-00-807-1466

Datasheet 5310-00-807-1466

Weapon Systems (WSDC) 5310-00-807-1466

DLA Procurement Analysis 5310-00-807-1466

Management Data 5310-00-807-1466

Army

Navy

Marine Corps

Similar Supply Items to 5310-00-807-1466

Freight Information 5310-00-807-1466

Packaging Data 5310-00-807-1466

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-807-1466 10 Records

Contracting Technical Data File (CTDF) 5310-00-807-1466 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
