5310-00-807-1465

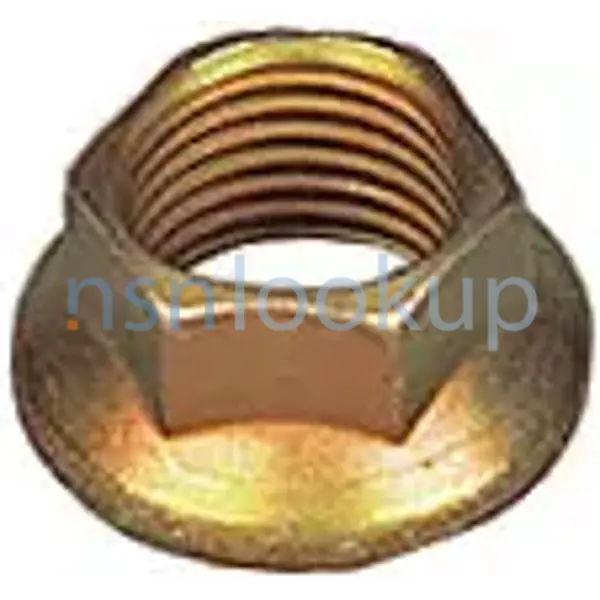

Hexagon Extended Washer Self-Locking Nut

5310008071465 008071465 H14L06CW A.S. 8600B D3004366 FIND NO 9 6300767-06 21FK632 96P-62W MN16-06 FN12A-62 T98S632CPC 4138-0022 MS21042-06 AN364-632C 23185111100 938.07.68.502 NAS679X06 5310PL0150559 457-5582 5310PL1370876

A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Hexagon Extended Washer Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
November 2023

NATO Update Count
86

NATO Data Quality

ACTA Style A294 for 5310-00-807-1465 1/1 — NSN 5310-00-807-1465 (Identification) 1/1

Marketplace 5310-00-807-1465

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

AN364-632C NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 450 HD NS

Subscribe to View Vendor Details...

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 200 HD NS

Subscribe to View Vendor Details...

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 300 HD NS

Subscribe to View Vendor Details...

AN364-632C NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 9 HD NS

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 12 HD NS

Subscribe to View Vendor Details...

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 198 HD NS

Subscribe to View Vendor Details...

NAS679X06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 350 HD NS

Subscribe to View Vendor Details...

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 181 HD NS

AN364-632C NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 93 HD NS

Subscribe to View Vendor Details...

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 100 HD NS

Subscribe to View Vendor Details...

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

Subscribe to View Vendor Details...

H14L06CW NUT 42 HD NS

Subscribe to View Vendor Details...

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 18 HD NS

Subscribe to View Vendor Details...

NAS679X06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 11803 HD NS

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 257 HD NS

Subscribe to View Vendor Details...

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 168 HD NS

Subscribe to View Vendor Details...

AN364-632C NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 1980 HD NS

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 10 HD NS

Subscribe to View Vendor Details...

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 184 HD NS

Subscribe to View Vendor Details...

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 1 HD NS

MS2104206 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 2 HD NS

Subscribe to View Vendor Details...

MS21042-06 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 2951 HD NS

Updated Every Day

5310-00-807-1465 RQST NE

Updated Every Day

5310-00-807-1465 RQST

Updated Every Day

5310-00-807-1465 RQST NE

Restrictions 5310-00-807-1465

5310-00-807-1465 is a Hexagon Extended Washer Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5310-00-807-1465

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-807-1465

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G180)
Effective Date:: 1 Sep 1993; AMC 0 AMSC 0 AAC B

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJBHD; AMC 1 AMSC G IMC Z IMCACTY GH

MOE Rule:: S911
Effective Date:: 1 Apr 2006
Former MOE Rule:: S006; AMC 1 AMSC G IMC Z IMCACTY XN

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Nov 2008

Poland (WP01)
Effective Date:: 1 Jun 2005

MOE Rule:: X002
Effective Date:: 1 Apr 1991

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Egypt (YQ01)
Effective Date:: 1 Jan 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Oct 1995

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5310-00-807-1465

Part Number
Manufacturer
Status
MS21042-06: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 MEDALS DAC E
96P-62W: 56878 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
MN16-06: 73197 - Hi-Shear Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
FN12A-62: 56878 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC A
MS21042-06: 2N335 - Pattonair Usa, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 MEDALS DAC 6
MN16-06: C4293 - Fairchild Fasteners Europe - Vsd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
MS21042-06: A0126 - Leonardo Spa Helicopters Division - (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MN16-06: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
H14L06CW: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
H14L06CW: 15653 - Howmet Global Fastening Systems Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
T98S632CPC: 52828 - Republic Fastener Mfg. Corp. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
MN16-06: L4528 - Lisi Aerospace Canada Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
4138-0022: 13467 - Associated Industries A Div Of (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
H14L06CW: F6033 - Tecnotec Sarl (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MS21042-06: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC 4
AN364-632C: 88044 - Aeronautical Standards Group (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC 4
H14L06CW: F7652 - Klx Aerospace Solutions Ii Sas (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
T98S632CPC: 11815 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
23185111100: S0522 - Tadiran Ltd (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
5310008071465: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
H14L06CW: 75237 - Howmet Global Fastening Systems Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
938.07.68.502: S4080 - Pilatus Aircraft Ltd (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
NAS679X06: 80205 - National Aerospace Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC 4
5310PL0150559: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
457-5582: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL1370876: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
H14L06CW: FB009 - Boeing Distribution Services Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 4
A.S. 8600B: K4975 - Ufc Aerospace Europe Limited (Active); Advisory Reference; RNCC C RNVC 1 DAC 4
A.S. 8600B: K7766 - Bsi Standards Limited (Active); Advisory Reference; RNCC C RNVC 1 DAC 4
D3004366 FIND NO 9: 3X894 - Control Flow, Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
6300767-06: 53711 - Naval Sea Systems Command (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
21FK632: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 5310-00-807-1465

Characteristic
Specifications
FIIG: A021A0
Hardness Rating [CQFM]: 49.0 Rockwell C Maximum
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.138 Inches
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Lubrication [ABAJ]: Soluble Lubricant
Overall Height [ABKW]: 0.115 Inches Minimum And 0.141 Inches Maximum
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Quantity Per Inch [CMLP]: 32
Thread Series [BZRR]: Unjc
Washer Outside Diameter [AAVX]: 0.244 Inches Maximum
Washer Thickness [ADEM]: 0.010 Inches Minimum
Width Across Flats [ASDB]: 0.181 Inches Minimum And 0.190 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall
Temp Rating [AZKQ]: 450.0 Deg Fahrenheit Nominal

Weapon Systems (WSDC) 5310-00-807-1465

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-807-1465

Last Stock Position:: 153800 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-807-1465

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: US Marine Corps (DM); HD; Subscribe; 1
Oct 2021: Department of the Air Force (DF); HD; Subscribe; 1
Oct 2020: Department of the Air Force (DF); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

BJ: Rotary Wing Aircraft
AH-64 Airframe

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

GA

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5310-00-807-1465

5310-33-205-1703 5310-14-404-0587 5310-99-647-1109 5310-14-274-2470 5310-19-004-6142 5310-12-143-0603 5310-12-170-9545 5310-14-482-4495 5310-14-440-5096 5310-12-359-9537 5310-99-718-0538 5310-12-325-6443 5310-12-333-5547 5310-12-364-4337 5310-12-348-5474 5310-14-481-2700 5310-12-388-2949 5310-14-222-0546

Freight Information 5310-00-807-1465

5310-00-807-1465 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-807-1465 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-807-1465 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-807-1465 is not classified as a special type of cargo when transported by water. 5310-00-807-1465 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-807-1465

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-807-1465 Most Recent 68 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A719P2893: 30 Nov 2018; Subscribe; 100; Subscribe; Subscribe
SPE7M119F7466: 23 Nov 2018; Subscribe; 100; Subscribe; Subscribe
SPE5EY18F391Y: 12 Sep 2018; Subscribe; 44; Subscribe; Subscribe
SPE5EY18F274W: 20 Jul 2018; Subscribe; 11; Subscribe; Subscribe
SPE5EY18F010E: 08 May 2018; Subscribe; 68; Subscribe; Subscribe
SPE5EY18F4248: 12 Jan 2018; Subscribe; 36; Subscribe; Subscribe
SPE5EY18F2582: 05 Dec 2017; Subscribe; 72; Subscribe; Subscribe
SPE5EY18F0655: 17 Oct 2017; Subscribe; 8; Subscribe; Subscribe
SPM5EY13D05471042: 23 Aug 2017; Subscribe; 25; Subscribe; Subscribe
SPM5EY13D05471043: 15 Aug 2017; Subscribe; 65; Subscribe; Subscribe
SPM5EY13D05471044: 15 Aug 2017; Subscribe; 156; Subscribe; Subscribe
SPM5EY13D05470863: 06 Mar 2017; Subscribe; 157; Subscribe; Subscribe
SPM5EY13D05470861: 01 Mar 2017; Subscribe; 2; Subscribe; Subscribe
SPM5EY13D05470862: 01 Mar 2017; Subscribe; 60; Subscribe; Subscribe
SPM5EY13D05470675: 29 Jul 2016; Subscribe; 139; Subscribe; Subscribe
SPM5EY13D05470670: 21 Jul 2016; Subscribe; 146; Subscribe; Subscribe
SPM5EY13D05470669: 19 Jul 2016; Subscribe; 34; Subscribe; Subscribe
SPM5EY13D05470668: 19 Jul 2016; Subscribe; 2; Subscribe; Subscribe
SPM5EY13D05470630: 24 Jun 2016; Subscribe; 153; Subscribe; Subscribe
SPM5EY13D05470628: 12 Jun 2016; Subscribe; 2; Subscribe; Subscribe
SPM5EY13D05470629: 12 Jun 2016; Subscribe; 72; Subscribe; Subscribe
SPM5EY13D05470570: 20 Apr 2016; Subscribe; 36; Subscribe; Subscribe
SPM5EY13D05470571: 20 Apr 2016; Subscribe; 136; Subscribe; Subscribe
SPM5EY13D05470569: 20 Apr 2016; Subscribe; 4; Subscribe; Subscribe
SPM5EY13D05470510: 04 Feb 2016; Subscribe; 2; Subscribe; Subscribe
SPM5EY13D05470511: 04 Feb 2016; Subscribe; 100; Subscribe; Subscribe
SPM5EY13D05470434: 30 Sep 2015; Subscribe; 42; Subscribe; Subscribe
SPM5EY13D05470435: 30 Sep 2015; Subscribe; 212; Subscribe; Subscribe
SPM5EY13D05470323: 22 Apr 2015; Subscribe; 15; Subscribe; Subscribe
SPM5EY13D05470324: 22 Apr 2015; Subscribe; 49; Subscribe; Subscribe
SPM5EY13D05470325: 29 Mar 2015; Subscribe; 308; Subscribe; Subscribe
SPM5EY13D05470118: 07 Jan 2015; Subscribe; 116; Subscribe; Subscribe
SPM5EY13D05470153: 31 Dec 2014; Subscribe; 5; Subscribe; Subscribe
SPM5EY13D05470154: 31 Dec 2014; Subscribe; 31; Subscribe; Subscribe
SPM5EY13D05470151: 24 Dec 2014; Subscribe; 32; Subscribe; Subscribe
SPM5EY13D05470152: 24 Dec 2014; Subscribe; 297; Subscribe; Subscribe
SPM5EY13D05470117: 20 Sep 2014; Subscribe; 8; Subscribe; Subscribe
SPM5EY13D05470084: 30 Jul 2014; Subscribe; 3; Subscribe; Subscribe
SPM5EY13D05470086: 30 Jul 2014; Subscribe; 23; Subscribe; Subscribe
SPM5EY13D05470085: 30 Jul 2014; Subscribe; 13; Subscribe; Subscribe
SPM5EY13D05470081: 27 Jul 2014; Subscribe; 46; Subscribe; Subscribe
SPM5EY13D05470082: 27 Jul 2014; Subscribe; 119; Subscribe; Subscribe
SPM5EY13D05470074: 16 Jul 2014; Subscribe; 36; Subscribe; Subscribe
SPM5EY13D05470075: 16 Jul 2014; Subscribe; 3; Subscribe; Subscribe
SPM5EY13D05470077: 16 Jul 2014; Subscribe; 18; Subscribe; Subscribe
SPM5EY13D05470076: 16 Jul 2014; Subscribe; 18; Subscribe; Subscribe
SPM5EY13D05470072: 15 Jul 2014; Subscribe; 1; Subscribe; Subscribe
SPM5EY13D05470073: 15 Jul 2014; Subscribe; 2; Subscribe; Subscribe
SPM5EY13D05470071: 11 Jul 2014; Subscribe; 238; Subscribe; Subscribe
SPM5EY13D05470069: 02 Jul 2014; Subscribe; 29; Subscribe; Subscribe
SPM5EY13D05470070: 02 Jul 2014; Subscribe; 106; Subscribe; Subscribe
SPM5EY13D05470066: 20 Jun 2014; Subscribe; 25; Subscribe; Subscribe
SPM5EY13D05470064: 20 Jun 2014; Subscribe; 3; Subscribe; Subscribe
SPM5EY13D05470065: 20 Jun 2014; Subscribe; 11; Subscribe; Subscribe
SPM5EY13D05470060: 18 Jun 2014; Subscribe; 6; Subscribe; Subscribe
SPM5EY13D05470061: 18 Jun 2014; Subscribe; 15; Subscribe; Subscribe
SPM5EY13D05470062: 18 Jun 2014; Subscribe; 18; Subscribe; Subscribe
SPM5EY13D05470058: 13 Jun 2014; Subscribe; 5; Subscribe; Subscribe
SPM5EY13D05470059: 13 Jun 2014; Subscribe; 56; Subscribe; Subscribe
SPM5EY13D05470057: 13 Jun 2014; Subscribe; 1; Subscribe; Subscribe
SPM5EY13D05470053: 12 Jun 2014; Subscribe; 296; Subscribe; Subscribe
SPM5EY13D05470052: 04 Jun 2014; Subscribe; 40; Subscribe; Subscribe
SPM5EY13D05470051: 04 Jun 2014; Subscribe; 11; Subscribe; Subscribe
SPM5EY13D0547004801: 02 Jun 2014; Subscribe; 12; Subscribe; Subscribe
SPM5EY13D0547004901: 02 Jun 2014; Subscribe; 73; Subscribe; Subscribe
SPM5EY13D0547005001: 02 Jun 2014; Subscribe; 168; Subscribe; Subscribe
SPM5E813V2867: 31 May 2013; Subscribe; 550; Subscribe; Subscribe
SPM5E813V2757: 20 May 2013; Subscribe; 1; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-807-1465 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: Y
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-807-1465

Related Documents 5310-00-807-1465 5+ Documents (More...)

Restrictions 5310-00-807-1465

Import and Export 5310-00-807-1465

End Users 5310-00-807-1465

Approved Sources 5310-00-807-1465

Datasheet 5310-00-807-1465

Weapon Systems (WSDC) 5310-00-807-1465

DLA Procurement Analysis 5310-00-807-1465

Management Data 5310-00-807-1465

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5310-00-807-1465

Freight Information 5310-00-807-1465

Packaging Data 5310-00-807-1465

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-807-1465 Most Recent 68 Records

Contracting Technical Data File (CTDF) 5310-00-807-1465 February 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
