5310-00-778-9283
Plate Self-Locking Nut
5310007789283 007789283 F2000-4CW MS21061-4 RF100X4 13615NM-048 F52LHTA517-048
A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member. View more Plate Self-Locking Nut
Managed by United States
NSN Created on 1 Jan 1960
Data Last Changed
September 2025
September 2025
NATO Update Count
42
42
NATO Data Quality
Marketplace 5310-00-778-9283
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-778-9283 5+ Documents (More...)
F2000-4CW MS21061-4 RF100X4 13615NM-048 F52LHTA517-048 A nut with a flanged base of varied shapes which

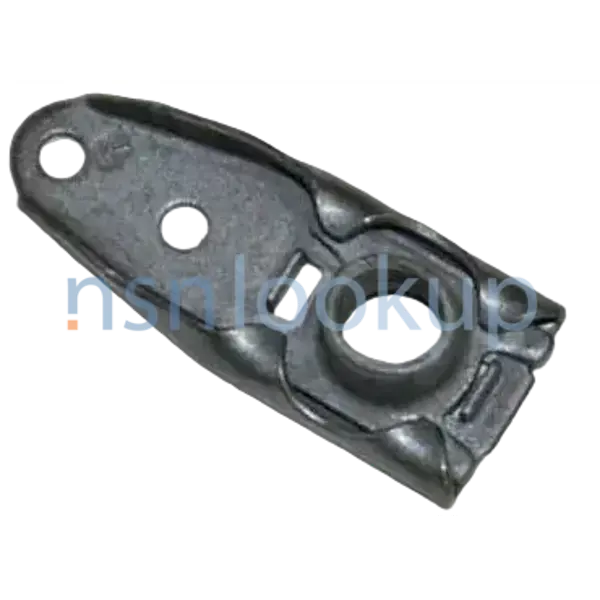

Photo 1/3 NSN 5310-00-778-9283 (Identification) 2/3 NSN 5310-00-778-9283 (Identification) 3/3 -
MS21061-4 NUT,SELF-LOCKING,PLATE 12 EA NS Request Quotation Updated Every Day 5310-00-778-9283 RQST NE
Photo 1/3 NSN 5310-00-778-9283 (Identification) 2/3 NSN 5310-00-778-9283 (Identification) 3/3 -
MS21061-4 NUT,SELF-LOCKING,PLATE 12 EA NS Request Quotation Updated Every Day 5310-00-778-9283 RQST NE
Plate Self-Locking Nut Similar https//www.nsnlookup.com www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-778-9283
Plate Self-Locking Nut 5310007789283 Supply Items to 9999-99-610-2865 https//www.nsnlookup.com
/fsg-53/fsc-5310/us 5310-00-778-9283 Plate Self-Locking Nut 5310007789283 Supply Items to 9999-99-603
Plate Self-Locking Nut 5310007789283 Supply Items to 9999-99-610-2865 https//www.nsnlookup.com
/fsg-53/fsc-5310/us 5310-00-778-9283 Plate Self-Locking Nut 5310007789283 Supply Items to 9999-99-603
Plate Self-Locking Nut 5310007789283 Supply Items to 9999-99-603-4561 https//www.nsnlookup.com
/fsg-53/fsc-5310/us 5310-00-778-9283 Plate Self-Locking Nut 5310007789283 Quotation Updated Every Day
5310-00-778-9283 RQST NE https//www.nsnlookup.com /fsg-99/fsc-9999/uk 9999-99-603-4561 Plate Self-Locking
/fsg-53/fsc-5310/us 5310-00-778-9283 Plate Self-Locking Nut 5310007789283 Quotation Updated Every Day
5310-00-778-9283 RQST NE https//www.nsnlookup.com /fsg-99/fsc-9999/uk 9999-99-603-4561 Plate Self-Locking
9999-99-605-5839 Plate Self-Locking Nut 9999996055839 www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-778-9283
Plate Self-Locking Nut Similar https//www.nsnlookup.com www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-778-9283
Plate Self-Locking Nut 5310007789283 Supply Items to 9999-99-609-2805 https//www.nsnlookup.com
Plate Self-Locking Nut Similar https//www.nsnlookup.com www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-778-9283
Plate Self-Locking Nut 5310007789283 Supply Items to 9999-99-609-2805 https//www.nsnlookup.com
Restrictions Approved Plate Self-Locking Nut 9999996055839 www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-778-9283
Plate Self-Locking Nut 5310007789283 Supply Items to 9999-99-609-2805 5310-00-778-9283 https//www.nsnlookup.com
ADPEC : 9999-99-605-5839 is a Plate Self-Locking Nut Similar Supply Items to 9999-99-605-5839 5310-00-778-9283
Plate Self-Locking Nut 5310007789283 Supply Items to 9999-99-609-2805 5310-00-778-9283 https//www.nsnlookup.com
ADPEC : 9999-99-605-5839 is a Plate Self-Locking Nut Similar Supply Items to 9999-99-605-5839 5310-00-778-9283
Restrictions 5310-00-778-9283
5310-00-778-9283 is a Plate Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-00-778-9283
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-778-9283
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GT
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 May 2015
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2014
- Greece (ZU01)
- Effective Date:
- 1 Jun 2005
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Jan 2014
Approved Sources 5310-00-778-9283
- Part Number
- Manufacturer
- Status
- MS21061-4
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- F2000-4CW
- 15653 - Howmet Global Fastening Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- RF100X4
- 52828 - Republic Fastener Mfg. Corp. (Active)
- Secondary Buy
- Secondary Buy
- 13615NM-048
- 80539 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- F2000-4CW
- R1120 - Satair A/S (Active)
- Secondary Buy
- Secondary Buy
- F52LHTA517-048
- 72962 - Harvard Industries Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- F2000-4CW
- F7652 - Klx Aerospace Solutions Ii Sas (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS21061-4
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 13615NM-048
- 56878 - Sps Technologies, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- F2000-4CW
- FB009 - Boeing Distribution Services Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5310-00-778-9283
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Center To Center Distance Between Mounting Holes Along Length [ADFY]
- 0.310 Inches Minimum And 0.314 Inches Maximum
- Distance From Aperture Center To Mounting Hole Center [ADFW]
- 0.495 Inches Minimum And 0.505 Inches Maximum
- Features Provided [CBBL]
- Floating Nut
- Hardness Rating [CQFM]
- 49.0 Rockwell C Maximum
- Material [MATT]
- Steel Overall
- Mounting Hole Arrangement Style [ADFU]
- 2 Holes
- Mounting Hole Diameter [ABTB]
- 0.098 Inches Minimum And 0.103 Inches Maximum
- Nominal Thread Size [CQJX]
- 0.250 Inches
- Nut Height [ADEA]
- 0.281 Inches Maximum
- Nut Length [ACVN]
- 1.306 Inches Maximum
- Nut Mounting Provision [ADFP]
- Straight Holes
- Nut Style [ACTA]
- Plate
- Locking Feature [AAUM]
- Prevailing Torque All Metal Design
- Plate Width [ADEC]
- 0.350 Inches Minimum And 0.531 Inches Maximum
- Plate Thickness [ADEB]
- 0.032 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Temp Rating [AZKQ]
- 450.0 Deg Fahrenheit Nominal
- Thread Class [AAJD]
- 3B
- Thread Direction [AAJF]
- Right-Hand
- Thread Series [BZRR]
- Unf
- Thread Quantity Per Inch [CMLP]
- 28
DLA Procurement Analysis 5310-00-778-9283
- Last Stock Position:
- 210 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-00-778-9283
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jun 2015
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Oct 2014
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- F
- When Exhausted Use 5310-00-778-9482
- F
- Department of the Navy (DN)
- N
- F
- When Exhausted Use 5310-00-778-9482
- F
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5310-00-778-9283
Freight Information 5310-00-778-9283
5310-00-778-9283 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-778-9283 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-778-9283 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-778-9283 is not classified as a special type of cargo when transported by water. 5310-00-778-9283 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-778-9283
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 5310-00-778-9283 2 Records
Contracting Technical Data File (CTDF) 5310-00-778-9283 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
