5310-00-761-0654

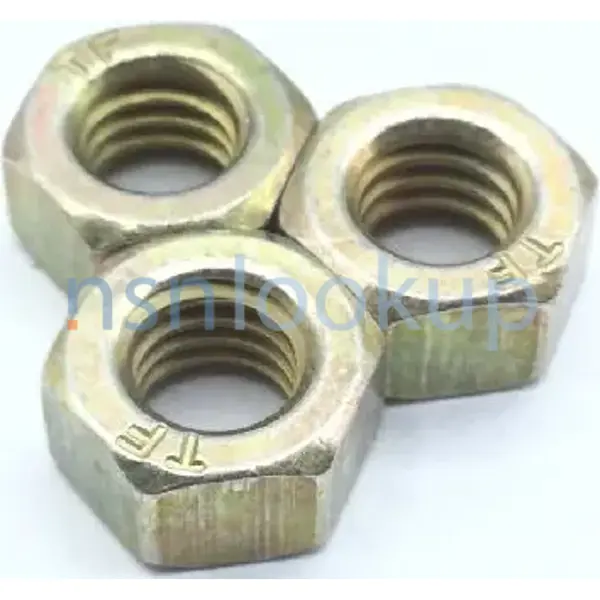

Hexagon Plain Nut

5310007610654 007610654 201-4510950-68 12387305-9 EE45598 04-0060 ITEM NO 57 SPP52-0015 MS51967-9 0725253 456720121102 5310PL0369772

A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.) View more Hexagon Plain Nut

Managed by United States

NSN Created on 1 Jan 1960

Data Last Changed
November 2023

NATO Update Count
57

NATO Data Quality

ACTA Style A12 for 5310-00-761-0654 1/1 — NSN 5310-00-761-0654 (Identification) 1/1

Marketplace 5310-00-761-0654

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

5310-00-761-0654 NUT,PLAIN,HEXAGON 5 HD NS

Subscribe to View Vendor Details...

MS51967-9 NUT,PLAIN,HEXAGON 99 HD NS

Subscribe to View Vendor Details...

MS51967-9 NUT,PLAIN,HEXAGON 35 HD NS

Subscribe to View Vendor Details...

5310-00-761-0654 NUT,PLAIN,HEXAGON 12 HD NS

Subscribe to View Vendor Details...

MS51967-9 NUT,PLAIN,HEXAGON 300 HD NS

Subscribe to View Vendor Details...

MS51967-9 NUT,PLAIN,HEXAGON 2519 HD NS

Subscribe to View Vendor Details...

MS51967-9 NUT 62 HD NS

Subscribe to View Vendor Details...

201-4510950TM NUT,PLAIN,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS51967-9 NUT,PLAIN,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS51967-9 NUT,PLAIN,HEXAGON 40 HD NS

Subscribe to View Vendor Details...

M551967-9 NUT,PLAIN,HEXAGON 100 HD NS

Subscribe to View Vendor Details...

MS51967-9 NUT,PLAIN,HEXAGON 100 HD NS

Subscribe to View Vendor Details...

MS51967-9 NUT,PLAIN,HEXAGON 897 HD NS

Subscribe to View Vendor Details...

007610654.5310 NUT,PLAIN,HEXAGON 10 HD NS

Subscribe to View Vendor Details...

12387305-9 NUT,PLAIN,HEXAGON 1 HD NS

Subscribe to View Vendor Details...

5310-00-761-0654 NUT,PLAIN,HEXAGON 2 HD NS

MS51967-9 NUT,PLAIN,HEXAGON 500 HD NS

Updated Every Day

5310-00-761-0654 RQST NE

Updated Every Day

5310-00-761-0654 RQST

Updated Every Day

5310-00-761-0654 RQST NE

Restrictions 5310-00-761-0654

5310-00-761-0654 is a Hexagon Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5310-00-761-0654

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-761-0654

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G190)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC B

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Hungary (WH01)
Effective Date:: 1 Sep 2013

Poland (WP01)
Effective Date:: 1 Oct 2006

Brazil (YA01)
Effective Date:: 1 Feb 2014

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Jun 2014

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Jun 2010

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Jul 1997

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

Approved Sources 5310-00-761-0654

Part Number
Manufacturer
Status
MS51967-9: 96906 - Military Standards (Active); Definitive Standard; RNCC 2 RNVC 2 MEDALS DAC E
201-4510950-68: 51563 - Rohr, Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
12387305-9: 19207 - U S Army Tank Automotive Command (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
EE45598: 75Q65 - Oshkosh Defense Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
0725253: S3002 - General Dynamics European, (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
EE45598: 45152 - Oshkosh Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
456720121102: 0000V - Ncb Hungary (Honvedsegi Egyseges (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL0369772: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
04-0060 ITEM NO 57: 20019 - Ward Leonard Ct Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
SPP52-0015: 20019 - Ward Leonard Ct Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 5310-00-761-0654

Characteristic
Specifications
FIIG: A021A0
Bearing Surface Type [CRTM]: Chamfered Or Washer Faced
Hardness Rating [CQFM]: 163.0 Brinell Standard Minimum
End Item Identification [AGAV]: Mrap Buffalo Mk2a2; Mrap - M-Atv Dv178
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.375 Inches
Nut Height [ADEA]: 0.320 Inches Minimum And 0.337 Inches Maximum
Nut Style [ACTA]: Hexagon
Width Across Flats [ASDB]: 0.5510 Inches Minimum And 0.5625 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium And Chromate Overall
Thread Class [AAJD]: 2B
Thread Direction [AAJF]: Right-Hand
Thread Series [BZRR]: Unc
Thread Quantity Per Inch [CMLP]: 16

Weapon Systems (WSDC) 5310-00-761-0654

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-761-0654

Last Stock Position:: 138900 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-761-0654

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); HD; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-543-4865
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-616-1291

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5310-00-761-0654

5310-14-558-7805 5310-14-548-8576 5310-14-396-5539 5310-14-257-8451 5310-14-556-3965 5310-14-469-0789 5310-14-042-4616 5310-14-402-4767 5310-99-209-1404 5310-17-102-9085 5310-26-300-4675 5310-14-040-4538 5310-14-401-1478 5310-14-543-7313 5310-14-494-1963 5310-14-042-1616 5310-17-109-0499 5310-17-104-9776

Freight Information 5310-00-761-0654

5310-00-761-0654 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-761-0654 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-761-0654 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-761-0654 is not classified as a special type of cargo when transported by water. 5310-00-761-0654 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-761-0654

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Contracting Technical Data File (CTDF) 5310-00-761-0654 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
