5310-00-682-5822

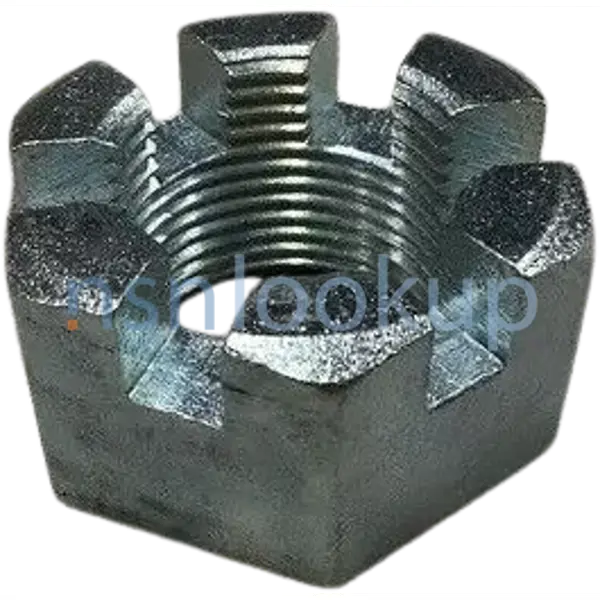

Hexagon Slotted Plain Nut
5310006825822 006825822 10866118 10088211 5310PL0890463
A nut having a flat bearing surface and 6 flat sides with slots in its upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin. Excludes NUT (1), PLAIN, CASTELLATED, HEXAGON. View more Hexagon Slotted Plain Nut
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
March 2025
March 2025
NATO Update Count
51
51
NATO Data Quality
Marketplace 5310-00-682-5822
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-682-5822 3+ Documents (More...)
10866118 10088211 5310PL0890463 A nut having a flat bearing surface and 6 flat sides with slots in its
United States (US) 4. 5310-00-682-5822 Marketplace Restrictions Approved Sources Datasheet Management
NUT,PLAIN,SLOTTED,HEXAGON 2 EA NS Request Quotation Subscribe to View Vendor Details... 10866118
United States (US) 4. 5310-00-682-5822 Marketplace Restrictions Approved Sources Datasheet Management
NUT,PLAIN,SLOTTED,HEXAGON 2 EA NS Request Quotation Subscribe to View Vendor Details... 10866118
ADPEC : 9999-99-610-9360 is a Hexagon Slotted Plain Nut Similar Supply Items to 9999-99-610-9360 5310-00-682-5822
5305007252317,Qty4;Washer,Flat,5310008775972,Qty4;Pin,Cotter,5315000137258,Qty1;Nut,Plain,Slotted,Hex,5310006825822
Restrictions 5310-00-682-5822
5310-00-682-5822 is a Hexagon Slotted Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-682-5822
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-682-5822
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Finland (WF01)
- Effective Date:
- 1 Feb 2008
- Lithuania (WI01)
- Effective Date:
- 1 Mar 2001
- Poland (WP01)
- Effective Date:
- 1 May 2005
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Mar 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 2010
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5310-00-682-5822
- Part Number
- Manufacturer
- Status
- 10866118
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 10866118
- A9271 - Goriziane Group Spa (Active)
- Secondary Buy
- Secondary Buy
- 5310006825822
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 10088211
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 5310PL0890463
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5310006825822
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 10866118
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 5310-00-682-5822
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Bearing Surface Type [CRTM]
- Washer Faced
- Countersink Angle [CRSQ]
- 85.0 Degrees Minimum Nut And 95.0 Degrees Maximum Nut
- Material [MATT]
- Steel Comp 1330H Overall Or Steel Comp 4130H Overall Or Steel Comp 5130H Overall Or Steel Comp 8630H Overall Or Steel Comp 1132 Overall Or Steel Comp 1137 Overall Or Steel Comp 1139 Overall Or Steel Comp 1141 Overall
- Nominal Thread Size [CQJX]
- 1.250 Inches
- Nut Height [ADEA]
- 0.609 Inches Minimum And 0.641 Inches Maximum
- Nut Style [ACTA]
- Slotted, Hexagon
- Material Document And Classification [MDCL]
- Astm A304 Assn Std 1St Material Response Overall Or Astm A332 Assn Std 2Nd Material Response Overall Or Astm A331 Assn Std 2Nd Material Response Overall Or Astm A304 Assn Std 3Rd Material Response Overall Or Astm A304 Assn Std 4Th Material Response Overall Or 00-S-637 Fed Spec 5Th Material Response Overall Or Qq-S-637 Fed Spec 6Th Material Response Overall Or Qq-S-637 Fed Spec 7Th Material Response Overall Or Qq-S-637 Fed Spec 8Th Material Response Overall
- Width Across Flats [ASDB]
- 1.875 Inches Nominal
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 1,Cl 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2B
- Thread Quantity Per Inch [CMLP]
- 16
- Thread Series [BZRR]
- Un
Weapon Systems (WSDC) 5310-00-682-5822
DLA Procurement Analysis 5310-00-682-5822
- Last Stock Position:
- 3091 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-00-682-5822
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5310-00-682-5822
Freight Information 5310-00-682-5822
5310-00-682-5822 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-682-5822 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-682-5822 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-682-5822 is not classified as a special type of cargo when transported by water. 5310-00-682-5822 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-682-5822
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 5310-00-682-5822 20 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A622PM490
- 18 May 2022
- Subscribe
- 7
- Subscribe
- Subscribe
- Subscribe
- SPE4A622PM490P00001
- 18 May 2022
- Subscribe
- 1660
- Subscribe
- Subscribe
- Subscribe
- SPE4A522P3679
- 14 Jan 2022
- Subscribe
- 1586
- Subscribe
- Subscribe
- Subscribe
- SPE5E921V0815
- 13 Jan 2021
- Subscribe
- 3700
- Subscribe
- Subscribe
- Subscribe
- SPE5E719V0345P00001
- 16 Oct 2018
- Subscribe
- 150
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F311U
- 20 Aug 2018
- Subscribe
- 118
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F296N
- 05 Aug 2018
- Subscribe
- 126
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F2997
- 17 Dec 2017
- Subscribe
- 107
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F2459
- 03 Dec 2017
- Subscribe
- 122
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F0117
- 01 Oct 2017
- Subscribe
- 689
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05520273
- 04 Sep 2017
- Subscribe
- 530
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05520263
- 07 Aug 2017
- Subscribe
- 726
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05520150
- 10 Jul 2016
- Subscribe
- 464
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D0552011901
- 01 May 2016
- Subscribe
- 351
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05520112
- 10 Apr 2016
- Subscribe
- 70
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05520025
- 02 Nov 2014
- Subscribe
- 29
- Subscribe
- Subscribe
- Subscribe
- SPM5EY13D05520026
- 02 Nov 2014
- Subscribe
- 1125
- Subscribe
- Subscribe
- Subscribe
- SPE5E714V3467
- 24 Apr 2014
- Subscribe
- 90
- Subscribe
- Subscribe
- Subscribe
- SPM5AZ09D00240806
- 03 Jul 2013
- Subscribe
- 1389
- Subscribe
- Subscribe
- Subscribe
- SPM5AZ09D0024078901
- 29 May 2013
- Subscribe
- 1389
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5310-00-682-5822 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
