5310-00-655-9860

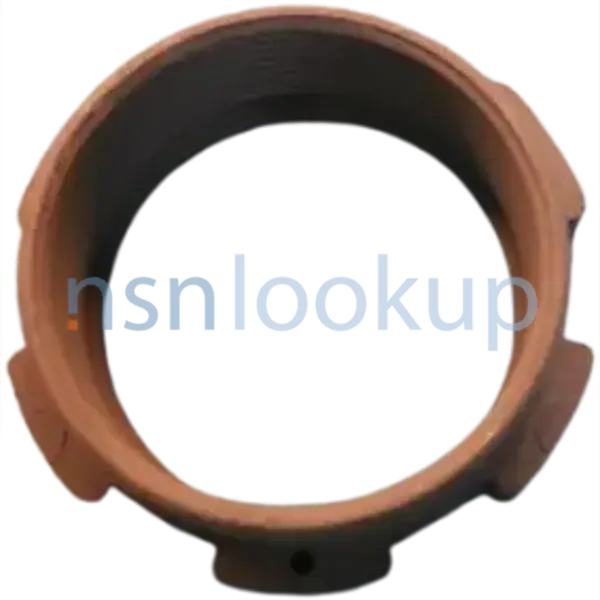

Sleeve Nut

5310006559860 006559860 8701325

An internally threaded item with a cylindrical and/or square, hexagonal, octagonal, or dodecagonal outer periphery (parallel to the threaded axis) a portion(s) of which may or may not be enlarged, forming a flange(s) and/or shoulder(s). Items not having an enlarged outer portion may be threaded, a part of the full length, or tapped from both ends. Items having an enlarged outer portion (flange(s) or shoulder(s)) may be threaded the full length, threaded a part of the full length, or tapped from both ends. Items tapped from both ends shall have either right-hand threads on both ends or left-hand threads on both ends. For items conforming to any of the above and having a length overall exceeding two times the largest outside diameter or width across flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. For items with an outside contour that is the same the full length, having a continuous thread through its entire length, and the length does not exceed two times the diameter or width across the flats use NUT (1), PLAIN (as modified). Excludes NUT (1), PLAIN, CAP. See also TURNBUCKLE BODY. View more Sleeve Nut

5310-00-655-9860 NUT,SLEEVE 5310006559860 006559860

Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
NATO Update Count
40
NATO Data Quality
ACTA Style A35B for 5310-00-655-9860 1/2
NSN 5310-00-655-9860 (Identification) 1/2
CRHC Style H9 for 5310-00-655-9860 2/2
NSN 5310-00-655-9860 (Identification) 2/2

5310-00-655-9860 Stock and Availability Marketplace 5310-00-655-9860

5310-00-655-9860 Related Documents Related Documents 5310-00-655-9860 5+ Documents (More...)

5940-01-170-4956 41 10 5940-01-170-4956 41 19 5940-01-170-4956 313 15 5940-01-170-4956 474 11 19207 8701325
5310-00-655-9860 80 8 5310-00-655-9860 85 8 5310-00-655-9860 86 4 76700 870889A 4330-01-506-2918 176A
5310-00-655-9370 438 18 5940-00-705-6703 75 17 5305-00-655-9711 73 12 5940-00-705-6703 76 17 5310-00-655-9860
80 8 5940-00-705-6703 93 10 5310-00-655-9860 85 8 5940-00-705-6708 75 7 5310-00-655-9860 86 4 5940
8701309 2590-01-047-0804 67 47 71 20 19207 8701317 67 39 19207 8701324 5999-00-532-0264 67 40 19207 8701325
5310-00-655-9860 67 51 71 17 19207 8701329 5935-00-489-6784 67 24 76 3 19207 8701338 5935-01-033-7945
7X677 8686123 94 24 7X677 8686124 5306-01-461-3555 88 15 19207 8689221 5940-01-170-4956 255 15 19207 8701325
5310-00-655-9860 76 5 19207 8724258 5935-00-686-2599 76 10 19207 8724494 5975-00-660-5962 46 8 19207
277-4508 BULK 18 19207 8689221 5940-01-170-4956 169 9 19207 8690900 9905-00-141-1619 157 11 19207 8701325
5310-00-655-9860 72 19 19207 8710612 5340-00-027-2068 155 23 19207 https//www.nsnlookup.com /fsg-47/
5310-00-655-9860 72 19 19207 8710612 5340-00-027-2068 155 23 19207 https//www.nsnlookup.com /fsg-59/

5310-00-655-9860 Demil Restrictions 5310-00-655-9860

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: U | EDC: | ADPEC:

5310-00-655-9860 is a Sleeve Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
