5310-00-655-9544

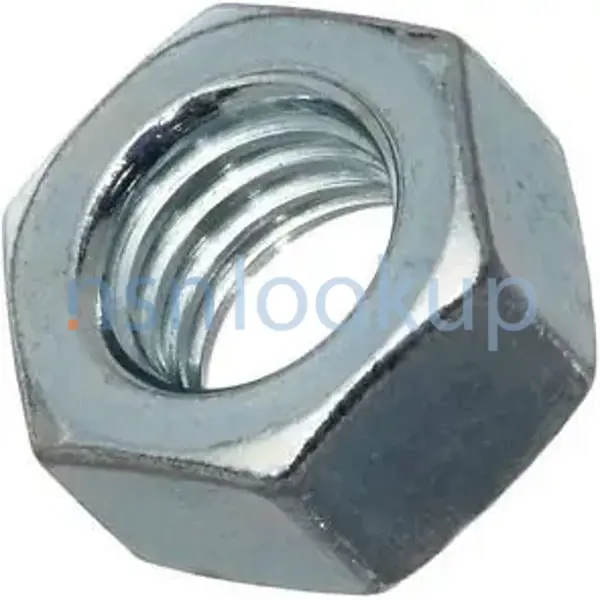

Hexagon Plain Nut
5310006559544 006559544 ASME B18.2.2 28902 M909A B18.6.3 MS35690-604 FF-N-836
A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.) View more Hexagon Plain Nut
November 2023
49
Marketplace 5310-00-655-9544
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5310-00-655-9544 5+ Documents (More...)
Day 5310-00-655-9544 RQST Updated Every Day 5310-00-655-9544 RQST NE Related Documents 5310-00-655-9544
Day 5310-00-655-9544 RQST Updated Every Day 5310-00-655-9544 RQST NE Related Documents 5310-00-655-9544
B18.6.3 NUT,PLAIN,HEXAGON 1 HD NS Request Quotation Subscribe to View Vendor Details...
ASME B18.6.3 NUT 1100 HD NS Request Quotation FF-N-836 NUT 1200 HD NS Request Quotation Subscribe to
ASME B18.6.3 NUT 1100 HD NS Request Quotation FF-N-836 NUT 1200 HD NS Request Quotation Subscribe to
https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-655-9544 Hexagon Plain Nut 5310006559544 006559544
B18.6.3 NUT,PLAIN,HEXAGON 1 HD NS Request Quotation Subscribe to View Vendor Details...
FF-N-836 TY2ST13 0101 0901309 B18.6.3 901309 A nut, flat on top https//www.nsnlookup.com /fsg-53/
B1618-6 NUT,PLAIN,HEXAGON 24 HD NS Request Quotation B18.6.3.
FF-N-836 NUT 200 HD NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5310-00-655-9544
5310-00-655-9544 is a Hexagon Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-00-655-9544
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-655-9544
- US Army (A191)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AZCTBFBD
- MOE Rule:
- B750
- Effective Date:
- 1 Oct 2007
- MOE Rule:
- D752
- Effective Date:
- 1 Apr 1991
- US Air Force (FXGS)
- Effective Date:
- 1 Jan 2001
- Former MOE Rule:
- FEGS
- NASA (G751)
- Effective Date:
- 1 Aug 2000
- NASA (G861)
- Effective Date:
- 1 Apr 1991
- NASA (G881)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTKEHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Oct 1998
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5310-00-655-9544
- Part Number
- Manufacturer
- Status
- ASME B18.2.2
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- 28902
- 53964 - Kaydon Custom Filtration Corporation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- M909A
- 11568 - Gardner Denver Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 5310006559544
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- B18.6.3
- 80204 - American National Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS35690-604
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- FF-N-836
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5310-00-655-9544
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Bearing Surface Type [CRTM]
- Chamfered Or Washer Faced
- Hardness Rating [CQFM]
- 69.0 Rockwell B Minimum And 32.0 Rockwell C Maximum
- Material [MATT]
- Steel Overall
- Nominal Thread Size [CQJX]
- 0.375 Inches
- Nut Height [ADEA]
- 0.320 Inches Minimum And 0.337 Inches Maximum
- Nut Style [ACTA]
- Hexagon
- Width Across Flats [ASDB]
- 0.551 Inches Minimum And 0.563 Inches Maximum
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 16
- Thread Series [BZRR]
- Unc
DLA Procurement Analysis 5310-00-655-9544
Management Data 5310-00-655-9544
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- May 2019
- US Marine Corps (DM)
- HD
- Subscribe
- HD
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5310-00-655-9544
Freight Information 5310-00-655-9544
5310-00-655-9544 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093483. A Sub NMFC of X. It has a NMFC Description of BOLTS,NUTS OR SCREWS,NOI IRON OR. 5310-00-655-9544 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-655-9544 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-655-9544 is not classified as a special type of cargo when transported by water. 5310-00-655-9544 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
