5310-00-655-9370
Lock Washer
5310006559370 006559370 FF-W-84 12387302-47 MS35340-47 5310PL0836045
A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces View more Lock Washer
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
June 2025
June 2025
NATO Update Count
53
53
NATO Data Quality
Marketplace 5310-00-655-9370
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-655-9370 5+ Documents (More...)
FF-W-84 12387302-47 MS35340-47 5310PL0836045 A washer which is usually round with a centrally located

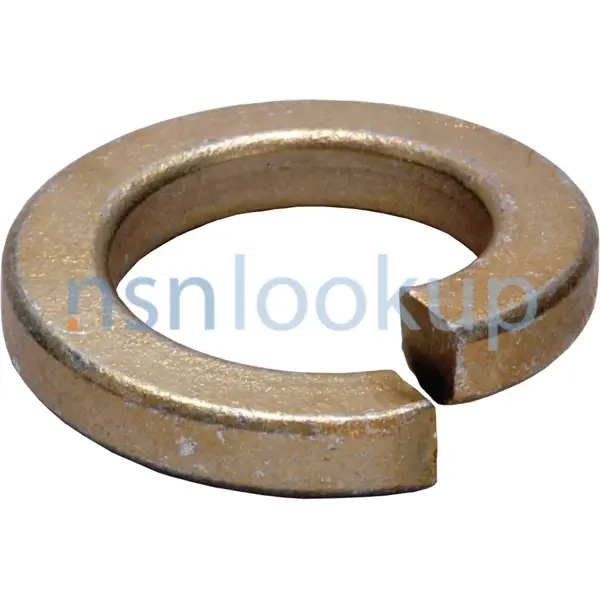

Photo 1/2 NSN 5310-00-655-9370 (Identification) 2/2 - - 1.
FF-W-84 WASHER,LOCK 116 HD NS Request Quotation Subscribe to View Vendor Details...
Photo 1/2 NSN 5310-00-655-9370 (Identification) 2/2 - - 1.
FF-W-84 WASHER,LOCK 116 HD NS Request Quotation Subscribe to View Vendor Details...
FF-W-84 WASHER,LOCK 116 EA NS Request Quotation Subscribe to View Vendor Details...
MS35340-47 WASHER,LOCK 264 EA NS Request Quotation MS3534047 WASHER,LOCK 264 EA NS Request Quotation
MS35340-47 WASHER,LOCK 264 EA NS Request Quotation MS3534047 WASHER,LOCK 264 EA NS Request Quotation
MS35340-47 WASHER,LOCK 264 EA NS Request Quotation MS3534047 WASHER,LOCK 264 EA NS Request Quotation
MS35340-47 WASHER,LOCK 264 EA NS Request Quotation MS3534047 WASHER,LOCK 264 EA NS Request Quotation
FF-W-84 WASHER,LOCK 116 EA NS Request Quotation Subscribe to View Vendor Details...
MS3534047 WASHER,LOCK 264 EA NS Request Quotation MS35340-47 WASHER,LOCK 264 EA NS Request Quotation
MS35340-47 WASHER,LOCK 264 EA NS Request Quotation MS3534047 WASHER,LOCK 264 EA NS Request Quotation
MS3534047 WASHER,LOCK 264 EA NS Request Quotation MS35340-47 WASHER,LOCK 264 EA NS Request Quotation
MS35340-47 WASHER,LOCK 264 EA NS Request Quotation MS3534047 WASHER,LOCK 264 EA NS Request Quotation
FF-W-84 WASHER,LOCK 116 EA NS Request Quotation Subscribe to View Vendor Details...
MS3534047 WASHER,LOCK 264 EA NS Request Quotation MS35340-47 WASHER,LOCK 264 EA NS Request Quotation
MS35340-47 WASHER,LOCK 264 EA NS Request Quotation MS3534047 WASHER,LOCK 264 EA NS Request Quotation
MS3534047 WASHER,LOCK 264 EA NS Request Quotation MS35340-47 WASHER,LOCK 264 EA NS Request Quotation
MS35340-47 WASHER,LOCK 264 EA NS Request Quotation MS3534047 WASHER,LOCK 264 EA NS Request Quotation
733-8736 5310-01-576-7296 5310-00-209-2615 5310-01-617-7930 5310-00-550-0284 5310-00-194-1483 5310-00-655-9370
Restrictions 5310-00-655-9370
5310-00-655-9370 is a Lock Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-655-9370
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-655-9370
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBFBD
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G170)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Jul 2000
- Poland (WP01)
- Effective Date:
- 1 Jun 2011
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5310-00-655-9370
- Part Number
- Manufacturer
- Status
- MS35340-47
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- FF-W-84
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- 12387302-47
- 19207 - U S Army Tank Automotive Command (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 5310006559370
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5310PL0836045
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5310006559370
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5310-00-655-9370
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0
- Hardness Rating [CQFM]
- 45.0 Rockwell C Minimum And 53.0 Rockwell C Maximum
- Hole Diameter [AAUB]
- 0.446 Inches Minimum And 0.459 Inches Maximum
- Material Thickness [ABPX]
- 0.143 Inches Minimum And 0.153 Inches Maximum
- Material [MATT]
- Steel Comp 1060 Overall Or Steel Comp 1561 Overall Or Steel Comp 1064 Overall Or Steel Comp 1065 Overall Or Steel Comp 1566 Overall Or Steel Comp 1069 Overall Or Steel Comp 1070 Overall Or Steel Comp 1572 Overall Or Steel Comp 1074 Overall Or Steel Comp 1075 Overall Or Steel Comp 1078 Overall Or Steel Comp 1080 Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 4 Style And A Class
- Outside Diameter [ABKV]
- 0.839 Inches Maximum
- Material Document And Classification [MDCL]
- 66 Fed Std All Material Responses Overall
- Style Designator [STYL]
- Split Helical-Right Hand
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
Weapon Systems (WSDC) 5310-00-655-9370
DLA Procurement Analysis 5310-00-655-9370
- Last Stock Position:
- 236200 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-00-655-9370
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- May 2023
- Defense Logistics Agency (DS)
- HD
- Subscribe
- 1
- HD
- Oct 2022
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- Oct 2021
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- Oct 2020
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- Oct 2019
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5310-00-543-2202
- 0
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5310-00-838-6931
- 4
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5310-00-655-9370
Freight Information 5310-00-655-9370
5310-00-655-9370 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194160. A Sub NMFC of X. It has a NMFC Description of WASHER OR GASKETS, IRON OR STEEL,. 5310-00-655-9370 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55210 which rates the freight between FCL and LCL. 5310-00-655-9370 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-655-9370 is not classified as a special type of cargo when transported by water. 5310-00-655-9370 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-655-9370
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5310-00-655-9370 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
