5310-00-639-5109
Sheet Spring Nut
5310006395109 006395109 A8935-8Z3
A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED. View more Sheet Spring Nut
January 2023
8
Marketplace 5310-00-639-5109
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-639-5109 2+ Documents (More...)
RQST NE Updated Every Day 5310-00-639-5109 RQST Updated Every Day 5310-00-639-5109 RQST NE Related Documents
5310-00-639-5109 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-639-5109
Sheet Spring Nut 5310006395109 006395109 $1 a day Upgrade your Account Upgrade 5310-00-639-5109Sheet
Spring Nut5310006395109 006395109 A8935-8Z3 www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-639-5109 Sheet
Restrictions 5310-00-639-5109
5310-00-639-5109 is a Sheet Spring Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5310-00-639-5109
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5310-00-639-5109
- Part Number
- Manufacturer
- Status
- A8935-8Z3
- Manufacturer
- 78553 - Tinnerman Palnut Engineered (Obsolete)
- Original Design
- Original Design

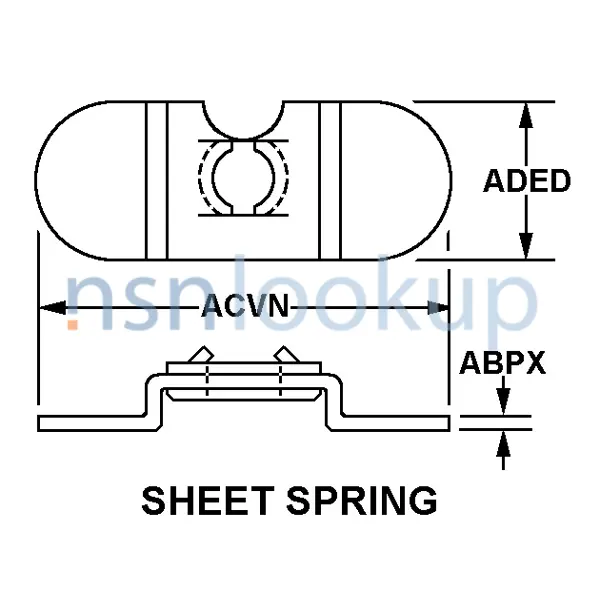

Datasheet 5310-00-639-5109
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Material Thickness [ABPX]
- 0.027 Inches Minimum And 0.037 Inches Maximum
- Material [MATT]
- Aluminum Alloy Overall Or Steel Overall
- Mating Member Diameter Accommodated [ACSZ]
- 0.187 Inches Nominal
- Nut Length [ACVN]
- 1.240 Inches Minimum And 1.260 Inches Maximum
- Nut Mounting Provision [ADFP]
- Welding Recess
- Nut Style [ACTA]
- Sheet Spring
- Nut Width [ADED]
- 0.495 Inches Minimum And 0.505 Inches Maximum
Similar Supply Items to 5310-00-639-5109
Freight Information 5310-00-639-5109
5310-00-639-5109 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 013540. A Sub NMFC of X. It has a NMFC Description of ALUM NUTS. 5310-00-639-5109 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5310-00-639-5109 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 05680 which rates the freight between FCL and LCL. 5310-00-639-5109 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-639-5109 is not classified as a special type of cargo when transported by water. 5310-00-639-5109 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
