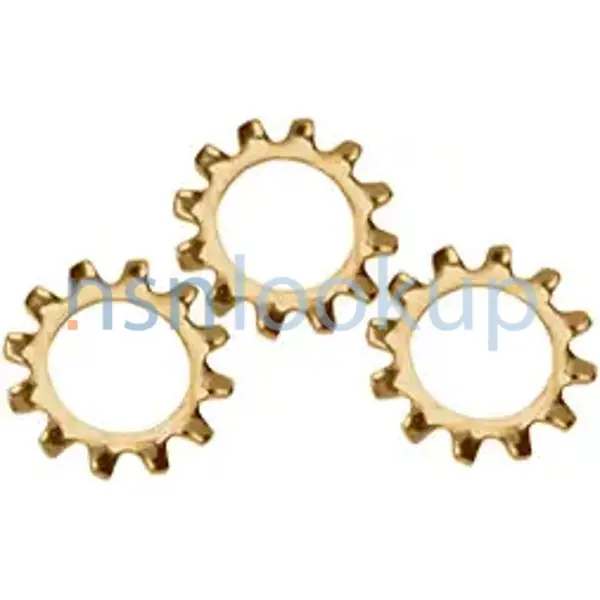

5310-00-627-6128

Lock Washer

5310006276128 006276128 MILB6986 AN936B616 MS35335-35 7417715 807004 53135 5293482 23MS35335-7 60309-57 193-10 138489 853918 6066 13207E3409FNFN19 869011-2700 04055064007355 407 143 FFW100 34942S7 93610-822 130MAY1 84X6U 3-8 1120-00 12114C

A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces View more Lock Washer

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
57

NATO Data Quality

STYL Style 100 for 5310-00-627-6128 1/1 — NSN 5310-00-627-6128 (Identification) 1/1

Marketplace 5310-00-627-6128

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS3533535 WASHER,LOCK 150 HD NS

Subscribe to View Vendor Details...

MS35335-35 WASHER,LOCK 1200 HD NS

Subscribe to View Vendor Details...

MS35335-35 WASHER,LOCK 136 HD NS

Subscribe to View Vendor Details...

38 WASHER,LOCK 1 HD NS

1931-#0 WASHER,LOCK 1 HD NS

Subscribe to View Vendor Details...

19310 WASHER,LOCK 59 HD NS

Subscribe to View Vendor Details...

5310-00-627-6128 WASHER,LOCK 1300 HD NS

Subscribe to View Vendor Details...

19310 WASHER,LOCK 1 HD NS

Subscribe to View Vendor Details...

3-8 WASHER,LOCK 2 HD NS

19310 WASHER,LOCK 8 HD NS

MS35335-21 WASHER,LOCK 100 HD NS

Subscribe to View Vendor Details...

AN936B616 WASHER,LOCK 931 HD NS

6066 WASHER,LOCK 52 HD NS

38 WASHER,LOCK 47 HD NS

Subscribe to View Vendor Details...

3/8 WASHER,LOCK 216 HD NS

6066 WASHER,LOCK 371 HD NS

Subscribe to View Vendor Details...

93610-822WASHER38LOCK-SPLIT WASHER,LOCK RQST NS

Subscribe to View Vendor Details...

AN936B616 WASHER,LOCK 2100 HD NS

Subscribe to View Vendor Details...

5310-00-627-6128 WASHER,LOCK,3/8 810 HD NS

Subscribe to View Vendor Details...

AN936B616 WASHER,LOCK 73 HD NS

Subscribe to View Vendor Details...

MS35335-35 WASHER,LOCK 465 HD NS

Subscribe to View Vendor Details...

38 WASHER,LOCK 3 HD NS

Subscribe to View Vendor Details...

MS35335-35 WASHER,LOCK 387 HD NS

Subscribe to View Vendor Details...

3-8 WASHER,LOCK 87 HD NS

Subscribe to View Vendor Details...

MS35335-35 WASHER,LOCK 59 HD NS

Subscribe to View Vendor Details...

MS35335-35 WASHER,LOCK 1 HD NS

Updated Every Day

138489 RQST NE

Updated Every Day

5310-00-627-6128 RQST NE

Updated Every Day

5310-00-627-6128 RQST

Updated Every Day

5310-00-627-6128 RQST NE

Restrictions 5310-00-627-6128

5310-00-627-6128 is a Lock Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-627-6128

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-627-6128

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GEKEJVHXHSHDGT; AMC 1 AMSC G IMC Z IMCACTY HD

MOE Rule:: RGX1
Effective Date:: 1 Apr 2006
Former MOE Rule:: R478
Supplementary Collaborators:: TR; AMC 1 AMSC G

Austria (WB01)
Effective Date:: 1 Feb 2005

Poland (WP01)
Effective Date:: 1 Oct 2006

Brazil (YA01)
Effective Date:: 1 Mar 2001

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Aug 1997

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

Approved Sources 5310-00-627-6128

Part Number
Manufacturer
Status
MS35335-35: 96906 - Military Standards (Active); Definitive Standard; RNCC 2 RNVC 2 DAC 4
MILB6986: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
AN936B616: 88044 - Aeronautical Standards Group (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
MS35335-35: Z0655 - Thales Australia - Bendigo Land & (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 3
7417715: 0FW39 - Bae Systems Tactical Vehicle Systems (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
93610-822: 11447 - L3 Technologies, Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
807004: 19203 - Combat Capabilities Development (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 1
53135: 34623 - Am General Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
5293482: 19204 - Army, United States Department Of (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 1
23MS35335-7: 80045 - L3harris Cincinnati Electronics (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
60309-57: 50309 - John Reiner & Co. Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
193-10: 10988 - Cnh Industrial America Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 1
7417715: 19207 - U S Army Tank Automotive Command (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
138489: 24617 - General Motors Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
1120-00: 30323 - Illinois Tool Works Inc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
853918: 19203 - Combat Capabilities Development (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 1
138489: 72582 - Rolls-Royce Solutions America Inc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
6066: 32770 - Kato Engineering Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
04055064007355: C7773 - Degen-Logistik-Koblenz Gmbh (Active); Secondary Buy; RNCC 5 RNVC 2 DAC U
407 143: 77294 - Piper Industrial Manufacturing (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS35335-35: 0158B - Psa Peugeot-Citroen Espana, Sa (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
34942S7: 23040 - Ford Motor Co Ford Parts And Service (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
93610-822: 49671 - Lockheed Martin Corporation (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
130MAY1: 05415 - Linde Lift Truck Corp. (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
84X6U: 58275 - Sasco Inc Canadian Div (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
3-8: 05241 - Ajax Magnethermec Corp Lectrodryer (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
1120-00: 78189 - Itw Shakeproof Automotive Products (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
12114C: 59431 - Tecumseh Products Company Llc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
EE45626: 45152 - Oshkosh Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
70178-35: 95097 - Little Giant Crane And Shovel Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
138489: 16764 - General Motors Corp Delco Remy Div (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
D117-76: 74465 - Hoof Products Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
MS35335-21: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5310006276128: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
13207E3409FNFN19: 97403 - Cecom Lr Center (Active); Advisory Reference; RNCC C RNVC 1 DAC 1
869011-2700: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
130MAY1: 556A6 - Linde Material Handling North (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
EE45626: 75Q65 - Oshkosh Defense Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC A
FFW100: 81348 - Federal Specifications Promulgated (Active); Transferred; RNCC E RNVC 8 DAC 3

Datasheet 5310-00-627-6128

Characteristic
Specifications
FIIG: A022B0
Hardness Rating [CQFM]: 40.0 Rockwell C Minimum And 50.0 Rockwell C Maximum
Hole Diameter [AAUB]: 0.384 Inches Minimum And 0.398 Inches Maximum
Material Thickness [ABPX]: 0.032 Inches Minimum And 0.040 Inches Maximum
Material [MATT]: Steel Comp 1050 Overall Or Steel Comp 1551 Overall Or Steel Comp 1059 Overall Or Steel Comp 1060 Overall Or Steel Comp 1561 Overall Or Steel Comp 1064 Overall
Outside Diameter [ABKV]: 0.670 Inches Minimum And 0.694 Inches Maximum
Material Document And Classification [MDCL]: 66 Fed Std All Material Responses Overall
Style Designator [STYL]: Flat External Teeth
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall

Weapon Systems (WSDC) 5310-00-627-6128

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-627-6128

Last Stock Position:: 167200 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-627-6128

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); HD; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-012-0930
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-209-4401
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-01-016-5059
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5310-00-167-0872
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5310-00-224-9372
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5310-00-458-1970
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5310-00-629-6376
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5310-00-639-8062
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5310-00-791-0510

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

K: Reserved

Operational Test:

: No Special Procedures

Similar Supply Items to 5310-00-627-6128

Freight Information 5310-00-627-6128

5310-00-627-6128 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194160. A Sub NMFC of X. It has a NMFC Description of WASHER OR GASKETS, IRON OR STEEL,. 5310-00-627-6128 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55210 which rates the freight between FCL and LCL. 5310-00-627-6128 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-627-6128 is not classified as a special type of cargo when transported by water. 5310-00-627-6128 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-627-6128

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-627-6128 Most Recent 95 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7L118F21GJ: 24 Sep 2018; Subscribe; 10; Subscribe; Subscribe
SPE7L115D0017149X: 27 Aug 2016; Subscribe; 5; Subscribe; Subscribe
SPE7L115D0017141T: 18 Aug 2016; Subscribe; 4; Subscribe; Subscribe
SPE7L115D0017138F: 11 Aug 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017135N: 09 Aug 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017134X: 08 Aug 2016; Subscribe; 4; Subscribe; Subscribe
SPE7L115D0017130S: 29 Jul 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017127W: 28 Jul 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017121U: 25 Jul 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017111K: 18 Jul 2016; Subscribe; 12; Subscribe; Subscribe
SPE7L115D0017108L: 14 Jul 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017098F: 06 Jul 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017095S: 01 Jul 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017079J: 22 Jun 2016; Subscribe; 9; Subscribe; Subscribe
SPE7L115D0017077B: 21 Jun 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017068V: 16 Jun 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017064L: 14 Jun 2016; Subscribe; 2; Subscribe; Subscribe
SPE7L115D0017059H: 11 Jun 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017054U: 08 Jun 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017043S: 31 May 2016; Subscribe; 10; Subscribe; Subscribe
SPE7L115D0017039L: 26 May 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017014T: 19 May 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017014K: 18 May 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017010Q: 16 May 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D0017004P: 13 May 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00179650: 04 May 2016; Subscribe; 4; Subscribe; Subscribe
SPE7L115D00179540: 01 May 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00179299: 27 Apr 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00179315: 27 Apr 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00178497: 11 Apr 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00178306: 07 Apr 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00178261: 06 Apr 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00178160: 03 Apr 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00178131: 01 Apr 2016; Subscribe; 11; Subscribe; Subscribe
SPE7L115D00177906: 29 Mar 2016; Subscribe; 2; Subscribe; Subscribe
SPE7L115D00177740: 24 Mar 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00177596: 22 Mar 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00177416: 16 Mar 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00177407: 16 Mar 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00177197: 14 Mar 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00177097: 09 Mar 2016; Subscribe; 11; Subscribe; Subscribe
SPE7L115D00177106: 09 Mar 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00176558: 01 Mar 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00176565: 01 Mar 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00176575: 01 Mar 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00176486: 26 Feb 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00176477: 26 Feb 2016; Subscribe; 2; Subscribe; Subscribe
SPE7L115D00176310: 24 Feb 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00176158: 19 Feb 2016; Subscribe; 2; Subscribe; Subscribe
SPE7L115D00176204: 19 Feb 2016; Subscribe; 5; Subscribe; Subscribe
SPE7L115D00176157: 19 Feb 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00176225: 19 Feb 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00175957: 17 Feb 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00175716: 12 Feb 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00175399: 04 Feb 2016; Subscribe; 3; Subscribe; Subscribe
SPE7L115D00175171: 01 Feb 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00175177: 01 Feb 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00174864: 26 Jan 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00174797: 23 Jan 2016; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00174489: 18 Jan 2016; Subscribe; 2; Subscribe; Subscribe
SPE7L115D00173646: 18 Dec 2015; Subscribe; 6; Subscribe; Subscribe
SPE7L115D00173603: 17 Dec 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00173318: 10 Dec 2015; Subscribe; 2; Subscribe; Subscribe
SPE7L115D00172509: 14 Nov 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00172336: 09 Nov 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00172359: 09 Nov 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00172151: 29 Oct 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00172145: 29 Oct 2015; Subscribe; 3; Subscribe; Subscribe
SPE7L115D00172085: 28 Oct 2015; Subscribe; 8; Subscribe; Subscribe
SPE7L115D00172109: 28 Oct 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00172086: 28 Oct 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00172061: 27 Oct 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00172045: 27 Oct 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00172072: 27 Oct 2015; Subscribe; 14; Subscribe; Subscribe
SPE7L115D00171636: 14 Oct 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00171610: 13 Oct 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00171466: 06 Oct 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00171200: 23 Sep 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00170988: 18 Sep 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00170813: 15 Sep 2015; Subscribe; 2; Subscribe; Subscribe
SPE7L115D00170355: 01 Sep 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00170346: 01 Sep 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00170183: 28 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00170046: 26 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00170048: 26 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPE7L115D00170069: 26 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7MX10D900753DU: 20 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7MX10D900753AZ: 18 Aug 2015; Subscribe; 2; Subscribe; Subscribe
SPM7MX10D900753AE: 17 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7MX10D900752ZR: 14 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7MX10D900752XR: 13 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7MX10D900752TU: 12 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7MX10D900752SC: 10 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7MX10D900752QU: 07 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7MX10D900752PL: 06 Aug 2015; Subscribe; 1; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-627-6128 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-627-6128

Related Documents 5310-00-627-6128 5+ Documents (More...)

Restrictions 5310-00-627-6128

Import and Export 5310-00-627-6128

End Users 5310-00-627-6128

Approved Sources 5310-00-627-6128

Datasheet 5310-00-627-6128

Weapon Systems (WSDC) 5310-00-627-6128

DLA Procurement Analysis 5310-00-627-6128

Management Data 5310-00-627-6128

Army

Navy

Marine Corps

Similar Supply Items to 5310-00-627-6128

Freight Information 5310-00-627-6128

Packaging Data 5310-00-627-6128

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-627-6128 Most Recent 95 Records

Contracting Technical Data File (CTDF) 5310-00-627-6128 February 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
