5310-00-612-9003

Double Hexagon Extended Washer Self-Locking Nut

5310006129003 006129003 3051G63-001 42FLW-428 42FLW428

A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Double Hexagon Extended Washer Self-Locking Nut

Managed by United States

NSN Created on 8 Feb 1975

Data Last Changed
November 2023

NATO Update Count
21

NATO Data Quality

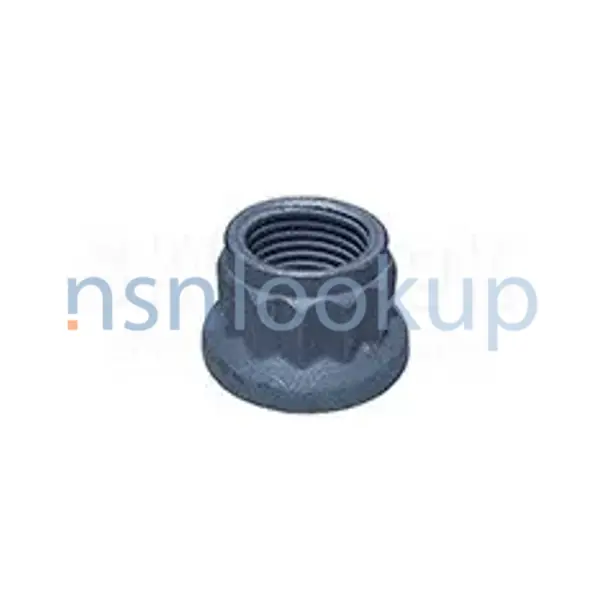

5310-00-612-9003 NUT,SELF-LOCKING,EXTENDED WASHER,DOUBLE HEXAGON 5310006129003 006129003 1/2 — 5310-00-612-9003 Photo 1/2

ACTA Style A293 for 5310-00-612-9003 2/2 — NSN 5310-00-612-9003 (Identification) 2/2

Marketplace 5310-00-612-9003

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

42FLW428 NUT,SELF-LOCKING,EXTENDED WASHER,DOUBLE HEXAGON 1 EA NS

Subscribe to View Vendor Details...

42FLW428 NUT,SELF-LOCKING,EXTENDED WASHER,DOUBLE HEXAGON 99 EA NS

Subscribe to View Vendor Details...

42FLW428 NUT,SELF-LOCKING,EXTENDED WASHER,DOUBLE HEXAGON 100 EA NS

Subscribe to View Vendor Details...

Updated 25 Days Ago

3051G63-001 NUT 21 EA NS

Subscribe to View Vendor Details...

5310-00-612-9003 NUT,SELF-LOCKING,EXTENDED WASHER,DOUBLE HEXAGON 136 EA NS

Subscribe to View Vendor Details...

42FLW428 NUT,SELF-LOCKING,EXTENDED WASHER,DOUBLE HEXAGON 15 EA NS

Subscribe to View Vendor Details...

42FLW428 NUT,SELF-LOCKING,EXTENDED WASHER,DOUBLE HEXAGON 8 EA NS

Updated Every Day

5310-00-612-9003 RQST NE

Updated Every Day

5310-00-612-9003 RQST

Updated Every Day

5310-00-612-9003 RQST NE

Restrictions 5310-00-612-9003

5310-00-612-9003 is a Double Hexagon Extended Washer Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-612-9003

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-612-9003

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 3 AMSC L

US Air Force (FUGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FUKZ; AMC 3 AMSC L IMC Z IMCACTY SU

NASA (G860)
Effective Date:: 1 Jun 1997; AMC 0 AMSC 0 AAC C

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTHD; AMC 3 AMSC L IMC Z IMCACTY GH

Brazil (YA01)
Effective Date:: 1 Oct 2001

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Jun 2012

Australia (ZA01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 May 2013

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Feb 2003

Denmark (ZS01)
Effective Date:: 1 May 2016

Greece (ZU01)
Effective Date:: 1 Jun 2005

Turkey (ZW01)
Effective Date:: 1 Sep 2001

Approved Sources 5310-00-612-9003

Part Number
Manufacturer
Status
42FLW428: 56878 - Sps Technologies, Llc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 2
3051G63-001: 17454 - Timken Gears & Services Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
3051G63-001: 01289 - General Electric Company (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
42FLW-428: 57878 - Bor-Ca Machine Tool Co (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 5310-00-612-9003

Characteristic
Specifications
FIIG: A021A0
Hardness Rating [CQFM]: 34.0 Rockwell C Minimum And 43.0 Rockwell C Maximum
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.250 Inches
Nut Style [ACTA]: Double Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Lubrication [ABAJ]: Dry Film Lubricant
Material Document And Classification [MDCL]: Ams 6280 Assn Std Single Material Response Overall Or Ams 6300 Assn Std Single Material Response Overall Or Ams 6322 Assn Std Single Material Response Overall
Overall Height [ABKW]: 0.290 Inches Maximum
Washer Outside Diameter [AAVX]: 0.444 Inches Maximum
Washer Thickness [ADEM]: 0.040 Inches Minimum
Width Across Flats [ASDB]: 0.367 Inches Minimum And 0.376 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 1,Cl 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall
Temp Rating [AZKQ]: 450.0 Deg Fahrenheit Nominal
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Quantity Per Inch [CMLP]: 28
Thread Series [BZRR]: Unjf
