5310-00-514-6674

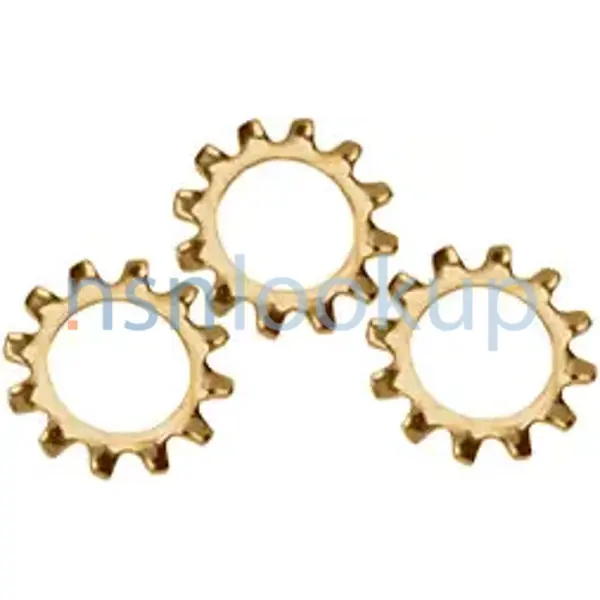

Lock Washer

5310005146674 005146674 MILW6986 529W 138485 P9891 69127 565613 114605 14047 PF46 PF46A 56097 13897D 8E05 13218E0518-41 J0612 130MAN1 M911A AU27AR201 E-4515 ITEM 12H MS35335-34 701988 407 144 34941S7 1118

A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces View more Lock Washer

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
September 2024

NATO Update Count
105

NATO Data Quality

5310-00-514-6674 WASHER,LOCK 5310005146674 005146674 1/2 — 5310-00-514-6674 Photo 1/2

STYL Style 100 for 5310-00-514-6674 2/2 — NSN 5310-00-514-6674 (Identification) 2/2

Marketplace 5310-00-514-6674

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

111-8 WASHER,LOCK 1 HD NS

MS3533534 WASHER,LOCK 14 HD NS

Subscribe to View Vendor Details...

1118 WASHER,LOCK 6 HD NS

529-W WASHER,LOCK 1 HD NS

Subscribe to View Vendor Details...

MIL-W-6986 WASHER,LOCK 13 HD NS

MS35335-34 WASHER,LOCK 20 HD NS

Subscribe to View Vendor Details...

Updated 39 Days Ago

MS35335-34 WASHER 21400 HD NS

MS35335-34 LOCK WASHER 4360 HD NS

MS35335-34 WASHER 2225 HD NS

Subscribe to View Vendor Details...

WASHER516LOCK-SPLIT WASHER,LOCK RQST NS

Subscribe to View Vendor Details...

114605 WASHER,LOCK 3 HD NS

Subscribe to View Vendor Details...

MS35335-34 WASHER,LOCK 1452 HD NS

AN936B516 WASHER,LOCK 3080 HD NS

Subscribe to View Vendor Details...

5310-00-514-6674 WASHER,LOCK 1 HD NS

Subscribe to View Vendor Details...

114605 WASHER,LOCK 5 HD NS

138485 WASHER,LOCK 13 HD NS

Subscribe to View Vendor Details...

AN936B516 WASHER,LOCK 500 HD NS

Subscribe to View Vendor Details...

005146674.5310 WASHER,LOCK 21995 HD NS

1549159 WASHER,LOCK 1 HD NS

5310-00-514-6674 RQST NE

Updated Every Day

5310-00-514-6674 RQST

Updated Every Day

5310-00-514-6674 RQST NE

Restrictions 5310-00-514-6674

5310-00-514-6674 is a Lock Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5310-00-514-6674

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-514-6674

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G930)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEHXHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Jul 2000

Poland (WP01)
Effective Date:: 1 Sep 2006

Brazil (YA01)
Effective Date:: 1 Sep 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Mar 1997

Thailand (YY01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 May 2015

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Jan 2011

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Jan 2014

Approved Sources 5310-00-514-6674

Part Number
Manufacturer
Status
MS35335-34: 96906 - Military Standards (Active); Definitive Standard; RNCC 2 RNVC 2 DAC 4
MILW6986: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
529W: 95019 - Dana Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
138485: 24617 - General Motors Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
P9891: 06848 - Honeywell International Inc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
69127: 13841 - Tiffin Parts, L.L.C. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
565613: 46522 - Dcm Manufacturing, Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
138485: 12204 - Chrysler Realty Company Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
114605: 24617 - General Motors Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
AU27AR201: 10855 - Carrier Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
14047: 73740 - Trw Inc Trw Commercial Steering Div (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
1118: 30323 - Illinois Tool Works Inc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
PF46: 66289 - Wisconsin Motors Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
PF46A: 66289 - Wisconsin Motors Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
56097: 96046 - Crane Pumps & Systems Pft Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
13897D: 89346 - Navistar Intl Corp Truck Br Ohio (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
8E05: 77237 - Dana Off Highway Products, Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
906B2013: 79343 - Asrc Federal Facilities Logistics, (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
13218E0518-41: 97403 - Cecom Lr Center (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC A
114605: 12204 - Chrysler Realty Company Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
J0612: 29215 - Jenny Products, Inc (Obsolete); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
701988: Z1286 - Ebsray Pumps Pty Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
407 144: 77294 - Piper Industrial Manufacturing (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS35335-34: 0158B - Psa Peugeot-Citroen Espana, Sa (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
34941S7: 23040 - Ford Motor Co Ford Parts And Service (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
138485: 92679 - Navistar Intl Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
1118: 78189 - Itw Shakeproof Automotive Products (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
906B2013: 93568 - Harsco Corp Bmy-Combat Systems Div (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
1A502: 12603 - Clark Equipment Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
XX002-0675: H2229 - Rdm Technology B.V. (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
130MAN1: 05415 - Linde Lift Truck Corp. (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
34941S: 23040 - Ford Motor Co Ford Parts And Service (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
138485: 29510 - Komatsu American Intl Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS35335-6: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
P9891: 55284 - Honeywell International Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
853-1016: 44940 - Cummins Power Generation Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AN936B516: 88044 - Aeronautical Standards Group (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
138485: 31007 - Navistar International Corporation (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
13897D: 31007 - Navistar International Corporation (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
87525: 08683 - Brockway Motor Trucks Div Of Mack (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
8E05: 12603 - Clark Equipment Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
138485: 56442 - Diamond Reo Truck Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
56-12-13: 31137 - White Consolidated Industries Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5310001670871: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
5310005146674: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
5310PL0822124: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310PL1866793: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
130MAN1: 556A6 - Linde Material Handling North (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
M911A: 11568 - Gardner Denver Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 9
138485: 80195 - Ed Etnyre & Co (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
AU27AR201: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
E-4515 ITEM 12H: 07524 - Dover Pumps & Process Solutions (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 5310-00-514-6674

Characteristic
Specifications
FIIG: A022B0
Hardness Rating [CQFM]: 40.0 Rockwell C Minimum And 50.0 Rockwell C Maximum
Hole Diameter [AAUB]: 0.320 Inches Minimum And 0.332 Inches Maximum
Material Thickness [ABPX]: 0.028 Inches Minimum And 0.034 Inches Maximum
Material [MATT]: Steel Comp 1050 Overall Or Steel Comp 1551 Overall Or Steel Comp 1552 Overall Or Steel Comp 1053 Overall Or Steel Comp 1055 Overall Or Steel Comp 1059 Overall Or Steel Comp 1060 Overall Or Steel Comp 1561 Overall Or Steel Comp 1064 Overall
Nondefinitive Spec/Std Data [ZZZT]: B Type
Outside Diameter [ABKV]: 0.588 Inches Minimum And 0.610 Inches Maximum
Material Document And Classification [MDCL]: 66 Fed Std All Material Responses Overall
Style Designator [STYL]: Flat External Teeth
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall

Weapon Systems (WSDC) 5310-00-514-6674

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-514-6674

Last Stock Position:: 1110200 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-514-6674

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Apr 2023: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2022: US Marine Corps (DM); HD; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-193-7637
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-582-9926
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-01-062-3384
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5310-00-013-8485
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5310-00-011-4605
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5310-00-167-0871
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5310-00-653-0641
US Marine Corps (DM): M; 8; Reversal Of Phrase Code Q 2530-00-697-3864

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Material Identification:

K: Reserved

Operational Test:

: No Special Procedures

Similar Supply Items to 5310-00-514-6674

Freight Information 5310-00-514-6674

5310-00-514-6674 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194160. A Sub NMFC of X. It has a NMFC Description of WASHER OR GASKETS, IRON OR STEEL,. 5310-00-514-6674 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55210 which rates the freight between FCL and LCL. 5310-00-514-6674 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-514-6674 is not classified as a special type of cargo when transported by water. 5310-00-514-6674 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-514-6674

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Contracting Technical Data File (CTDF) 5310-00-514-6674 February 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-514-6674

Related Documents 5310-00-514-6674 5+ Documents (More...)

Restrictions 5310-00-514-6674

Import and Export 5310-00-514-6674

End Users 5310-00-514-6674

Approved Sources 5310-00-514-6674

Datasheet 5310-00-514-6674

Weapon Systems (WSDC) 5310-00-514-6674

DLA Procurement Analysis 5310-00-514-6674

Management Data 5310-00-514-6674

Army

Navy

Marine Corps

Similar Supply Items to 5310-00-514-6674

Freight Information 5310-00-514-6674

Packaging Data 5310-00-514-6674

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Contracting Technical Data File (CTDF) 5310-00-514-6674 February 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
