5310-00-465-5653
Plate Self-Locking Nut
5310004655653 004655653 BACN10DY-3-20 WSI333-24
A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member. View more Plate Self-Locking Nut
November 2023
6
Marketplace 5310-00-465-5653
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-465-5653 2+ Documents (More...)
WSI333-24 NUT,SELF-LOCKING,PLATE 6 EA NS Request Quotation FedMall Updated Every 15 Minutes 5310-00-465
-5653 BUY NE FedMall Updated Every Day 5310-00-465-5653 RQST NE Updated Every Day 5310-00-465-5653 RQST
Quotation 03A165-3-240 NUT,SELF-LOCKING,PLATE 95 https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-465-5653
004655653 BACN10DY-3-20 WSI333-24 WSI333-24 NUT,SELF-LOCKING,PLATE 11 EA NS Request Quotation Subscribe
Restrictions 5310-00-465-5653
5310-00-465-5653 is a Plate Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-465-5653
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-465-5653
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
Approved Sources 5310-00-465-5653
- Part Number
- Manufacturer
- Status
- BACN10DY-3-20
- Manufacturer
- 81205 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
- WSI333-24
- 04169 - Atlas Corp Western Sky Industries (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5310-00-465-5653
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0

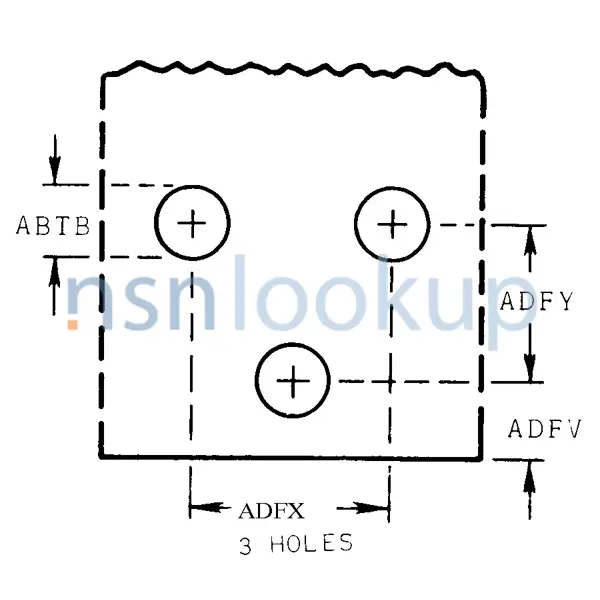

- Distance From Mounting Hole Center To Base [ADFV]
- 0.250 Inches Nominal
- Center To Center Distance Between Mounting Holes Along Width [ADFX]
- 1.000 Inches Nominal
- Center To Center Distance Between Mounting Holes Along Length [ADFY]
- 0.560 Inches Nominal

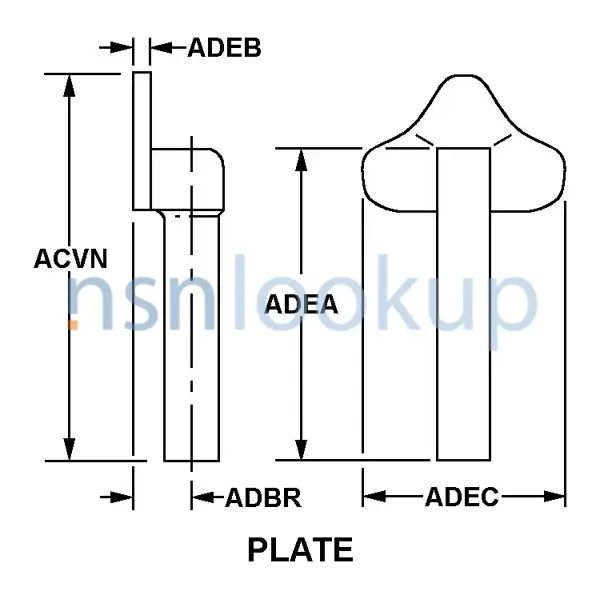

- Distance From Base To Center Of Aperture [ADBR]
- 0.310 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-A-367 Fed Spec Single Material Response Nut
- Material [MATT]
- Aluminum Alloy 2014 Nut
- Material [MATT]
- Steel Corrosion Resisting Locking Insert
- Mounting Hole Arrangement Style [ADFU]
- 3 Holes
- Mounting Hole Diameter [ABTB]
- 0.098 Nominal Inches
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Nut Height [ADEA]
- 2.712 Inches Nominal
- Nut Length [ACVN]
- 3.460 Inches Nominal
- Nut Mounting Provision [ADFP]
- Straight Holes
- Nut Style [ACTA]
- Plate
- Locking Feature [AAUM]
- Prevailing Torque All Metal Design
- Material Document And Classification [MDCL]
- Ams 7245 Assn Std Single Material Response Locking Insert
- Plate Thickness [ADEB]
- 0.050 Inches Nominal
- Plate Width [ADEC]
- 1.500 Inches Nominal
- Surface Treatment Document And Classification [STDC]
- Mil-C-5541 Mil Spec Single Treatment Response Overall Except Insert
- Surface Treatment [SFTT]
- Chromate Overall Except Insert
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series [BZRR]
- Unf
Weapon Systems (WSDC) 5310-00-465-5653
DLA Procurement Analysis 5310-00-465-5653
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-00-465-5653
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Nov 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 5310-00-465-5653
Freight Information 5310-00-465-5653
5310-00-465-5653 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 013540. A Sub NMFC of X. It has a NMFC Description of ALUM NUTS. 5310-00-465-5653 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05680 which rates the freight between FCL and LCL. 5310-00-465-5653 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-465-5653 is not classified as a special type of cargo when transported by water. 5310-00-465-5653 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-465-5653
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 5310-00-465-5653 2 Records
Contracting Technical Data File (CTDF) 5310-00-465-5653 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
