5310-00-452-2607
Wing Plain Nut
5310004522607 004522607 F244638 99-6036496
A nut having wings designed for manual turning without driver or wrench. View more Wing Plain Nut
May 2023
6
Marketplace 5310-00-452-2607
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-452-2607 4+ Documents (More...)
/fsg-53/fsc-5310/us
F244638 NUT,PLAIN,WING 6 EA NS Request Quotation FedMall Updated Every 15 Minutes 5310-00-452-2607 BUY
NE FedMall Updated Every Day 5310-00-452-2607 RQST NE Updated Every Day 5310-00-452-2607 RQST Updated
Day 5310-99-603-6496 RQST NE Related Documents https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-452-2607
Wing Plain Nut 5310004522607 004522607 F244638 NUT,PLAIN,WING 6 EA NS Request Quotation FedMall
Wing Plain Nut 5310004522607 004522607 (Identification) 1/2 NSN 5310-00-452-2607 (Identification
NE FedMall Updated Every Day 5310-00-452-2607 RQST NE Updated Every Day 5310-00-452-2607 RQST Updated
Wing Plain Nut 5310004522607 004522607 4730-21-668-0374 Pipe Cross 4730216680374 216680374,B16-
Restrictions 5310-00-452-2607
5310-00-452-2607 is a Wing Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-452-2607
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-452-2607
- National Security Agency (DGX1)
- Effective Date:
- 1 Jan 2014
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2014
- Supplementary Collaborators:
- HDKEHX
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5310-00-452-2607
- Part Number
- Manufacturer
- Status
- F244638
- Manufacturer
- K0289 - British Aerospace (Military Aircraft (Replaced)
- Original Design
- Original Design
- 99-6036496
- 99995 - Nato Stock Number Assigned (Replaced)
- NATO Reference
- NATO Reference
- F244638
- U9143 - Bae Systems (Operations) Limited (Active)
- Advisory Reference
- Advisory Reference

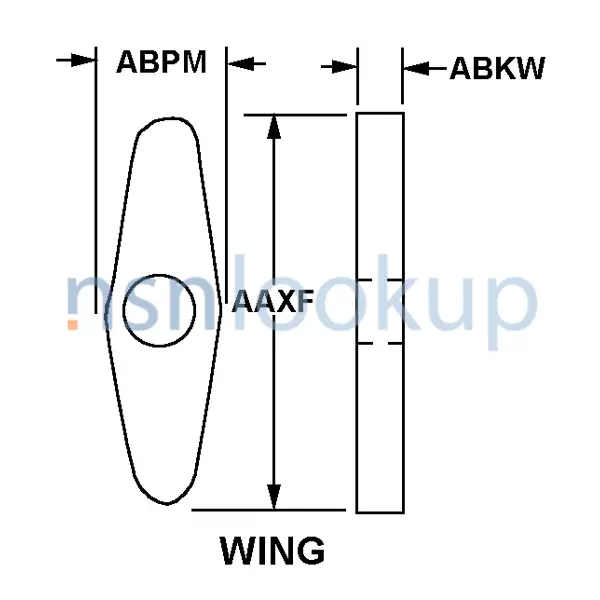

Datasheet 5310-00-452-2607
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Drilled Hole Diameter [AGGP]
- 0.125 Inches Nominal
- Body Diameter [ABPM]
- 0.570 Inches Nominal
- Hole Configuration Style [CRHC]
- Configuration K
- Hole Type And Quantity [ALET]
- 2 Drilled
- Material [MATT]
- Steel Overall
- Nominal Thread Size [CQJX]
- 0.250 Inches
- Nut Style [ACTA]
- Wing
- Overall Height [ABKW]
- 0.273 Inches Nominal
- Wing Spread Width [AAXF]
- 1.073 Inches Nominal
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 28
- Thread Series [BZRR]
- Unf
DLA Procurement Analysis 5310-00-452-2607
Management Data 5310-00-452-2607
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5310-00-452-2607
Freight Information 5310-00-452-2607
5310-00-452-2607 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-452-2607 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-452-2607 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-452-2607 is not classified as a special type of cargo when transported by water. 5310-00-452-2607 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5310-00-452-2607 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
