5310-00-423-8156
Wing Self-Locking Nut
5310004238156 004238156 T558
A nut having wings designed for manual turning without driver or wrench with an integral feature incorporated for locking on the threads of a mating member. View more Wing Self-Locking Nut
January 2023
10
Marketplace 5310-00-423-8156
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-423-8156 5+ Documents (More...)
United States (US) 4. 5310-00-423-8156 Marketplace Restrictions Approved Sources Datasheet Management
T558 NUT,SELF-LOCKING,WING 466 EA NS Request Quotation Updated Every Day 5310-00-423-8156 RQST NE Updated
enable JavaScript in your web browser . 8140-14-262-6526Conteneur Pour 1 Si8140142626526 142626526 T558
/www.nsnlookup.com /fsg-81/fsc-8140/fr 8140-14-262-6526 Conteneur Pour 1 Si 8140142626526142626526 T558
/www.nsnlookup.com /fsg-81/fsc-8140/fr 8140-14-262-6496 Paquetage Pour Tete 8140142626496142626496 T558
Wing Self-Locking Nut 5310004238156 004238156 Pour 1 Si8140142626526 142626526 www.nsnlookup.com
/www.nsnlookup.com /fsg-69/fsc-6910/fr 6910-14-267-6080 Maquette Marqueur I 6910142676080142676080 T558
enable JavaScript in your web browser . 6910-14-267 -6080Maquette Marqueur I6910142676080 142676080 T558
320-2354 Unterrichtsausstatt 6910123202354 123202354 5310004238156 004238156 6910142676080142676080
T558 https//www.nsnlookup.com /fsg-81/fsc-8140/fr 8140-14-262-6497 Caisse Propulseur R 8140142626497
Restrictions 5310-00-423-8156
5310-00-423-8156 is a Wing Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-423-8156
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-423-8156
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5310-00-423-8156
- Part Number
- Manufacturer
- Status
- T558
- Manufacturer
- 11083 - Caterpillar Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5310-00-423-8156
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Thread Series [BZRR]
- Unc
- Nominal Thread Size [CQJX]
- 0.375 Inches
- Thread Quantity Per Inch [CMLP]
- 16
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
- Material [MATT]
- Lead Locking Insert
- Material [MATT]
- Aluminum Alloy Overall Except Insert

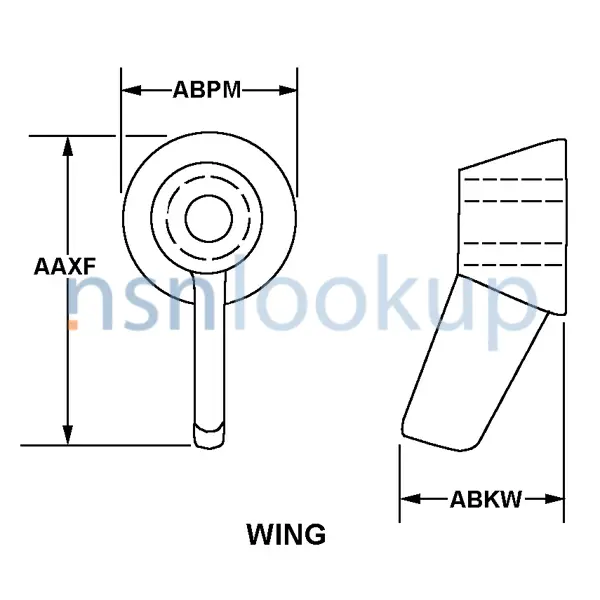

- Nut Style [ACTA]
- Wing
- Wing Spread Width [AAXF]
- 1.750 Inches Nominal
- Overall Height [ABKW]
- 0.812 Inches Nominal
- Body Diameter [ABPM]
- 0.750 Inches Nominal
- Locking Feature [AAUM]
- Prevailing Torque With Metallic Insert
- Fabrication Method [AARN]
- Cast
Similar Supply Items to 5310-00-423-8156
Freight Information 5310-00-423-8156
5310-00-423-8156 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 013540. A Sub NMFC of X. It has a NMFC Description of ALUM NUTS. 5310-00-423-8156 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 5310-00-423-8156 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 05680 which rates the freight between FCL and LCL. 5310-00-423-8156 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-423-8156 is not classified as a special type of cargo when transported by water. 5310-00-423-8156 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
