5310-00-409-9031

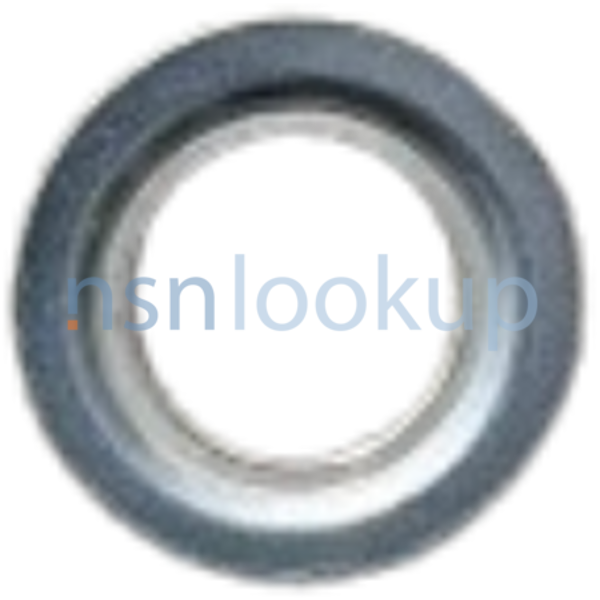

Shouldered And Recessed Washer
5310004099031 004099031 B5144178 5144178 PC5144178
A washer, round in shape, having a centrally located hole. One bearing surface is flat, the other surface is in the form of a raised shoulder (boss) having a flat bearing surface. Either or both of the bearing surfaces must be broken by a counterbore, countersink, or similar shaped recess. The thickness of the shoulder (boss) must not exceed 25 percent of the shoulder (boss) diameter. For items having a shoulder (boss) of greater thickness, use BEARING, SLEEVE; BUSHING, SLEEVE; or SPACER, SLEEVE. Excludes INSULATOR, WASHER and thrust type washers. View more Shouldered And Recessed Washer
September 2023
36
Marketplace 5310-00-409-9031
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-409-9031 5+ Documents (More...)
Restrictions 5310-00-409-9031
5310-00-409-9031 is a Shouldered And Recessed Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-409-9031
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-409-9031
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBF
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2005
- Australia (ZA01)
- Effective Date:
- 1 May 1996
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 5310-00-409-9031
- Part Number
- Manufacturer
- Status
- B5144178
- Manufacturer
- 7U177 - Federal-Mogul Corporation (Active)
- Primary Buy
- Primary Buy
- 5144178
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Secondary Buy
- Secondary Buy
- PC5144178
- C7432 - Power Components (Deutschland) Gmbh (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5310004099031
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5310004099031
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5310-00-409-9031
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0
- Hole Diameter [AAUB]
- 0.379 Inches Minimum And 0.389 Inches Maximum
- Material Thickness [ABPX]
- 0.027 Inches Minimum And 0.033 Inches Maximum
- Material [MATT]
- Steel Overall
- Outside Diameter [ABKV]
- 0.680 Inches Nominal
- Recess Angle [CSTM]
- 270.0 Degrees Nominal
- Shoulder Diameter [AAVH]
- 0.530 Inches Nominal
- Shoulder Height [ABMG]
- 0.025 Inches Minimum And 0.030 Inches Maximum
- Style Designator [STYL]
- Shouldered And Recessed
Weapon Systems (WSDC) 5310-00-409-9031
DLA Procurement Analysis 5310-00-409-9031
- Last Stock Position:
- 191 In Stock
