5310-00-297-4145
Wing Plain Nut
5310002974145 002974145 325361PC3
A nut having wings designed for manual turning without driver or wrench. View more Wing Plain Nut
May 2023
21
Marketplace 5310-00-297-4145
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-297-4145 1+ Documents (More...)
/fsg-53/fsc-5310/us
United States (US) 4. 5310-00-297-4145 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 5310-00-297-4145
Restrictions 5310-00-297-4145
5310-00-297-4145 is a Wing Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-297-4145
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-297-4145
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5310-00-297-4145
- Part Number
- Manufacturer
- Status
- 325361PC3
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy

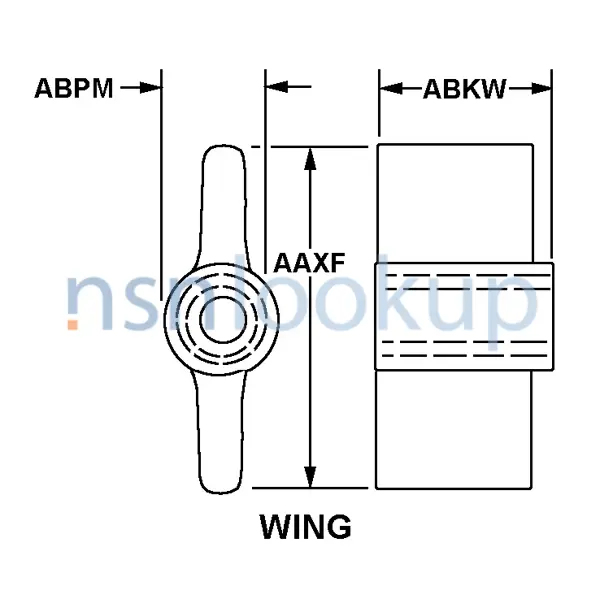

Datasheet 5310-00-297-4145
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Body Diameter [ABPM]
- 0.609 Inches Minimum And 0.641 Inches Maximum
- Fabrication Method [AARN]
- Cast
- Material Document And Classification [MDCL]
- Qq-C-390 Fed Spec Single Material Response Overall
- Material [MATT]
- Copper Alloy 943 Overall
- Nominal Thread Size [CQJX]
- 0.312 Inches
- Nut Style [ACTA]
- Wing
- Overall Height [ABKW]
- 0.984 Inches Minimum And 1.016 Inches Maximum
- Wing Spread Width [AAXF]
- 2.234 Inches Minimum And 2.266 Inches Maximum
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2B
- Thread Quantity Per Inch [CMLP]
- 24
- Thread Series [BZRR]
- Unf
DLA Procurement Analysis 5310-00-297-4145
Management Data 5310-00-297-4145
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5310-00-297-4145
Freight Information 5310-00-297-4145
5310-00-297-4145 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093460. A Sub NMFC of X. It has a NMFC Description of BOLTS/NUTS NOI BBC/ZINC. 5310-00-297-4145 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48930 which rates the freight between FCL and LCL. 5310-00-297-4145 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-297-4145 is not classified as a special type of cargo when transported by water. 5310-00-297-4145 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-297-4145
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5310-00-297-4145 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
