5310-00-274-9364

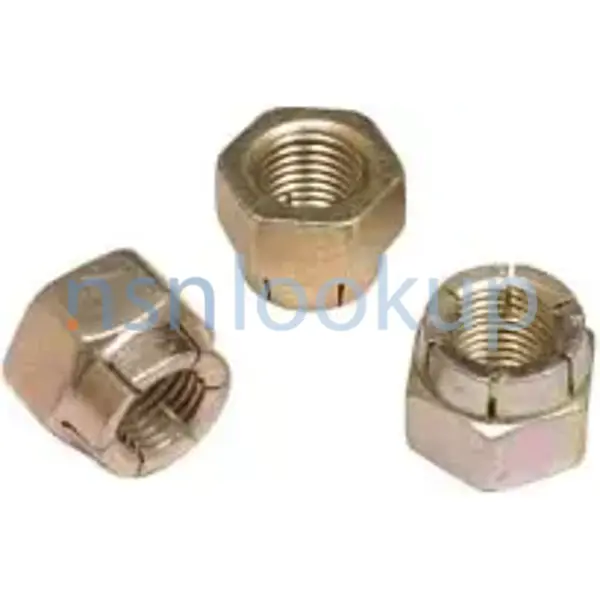

Hexagon Self-Locking Nut

5310002749364 002749364 27FH-720UN 27GH720 404 891 YE3183 2GH813 MS21045-7 F1801-070U LFLH1801-070U 406685

A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
August 2024

NATO Update Count
58

NATO Data Quality

5310-00-274-9364 NUT,SELF-LOCKING,HEXAGON 5310002749364 002749364 1/2 — 5310-00-274-9364 Photo 1/2

ACTA Style A12 for 5310-00-274-9364 2/2 — NSN 5310-00-274-9364 (Identification) 2/2

Marketplace 5310-00-274-9364

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS20365-720C NUT,SELF-LOCKING,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS20365-720C NUT,SELF-LOCKING,HEXAGON 24 HD NS

MS21045-7 NUT,SELF-LOCKING,HEXAGON 300 HD NS

Subscribe to View Vendor Details...

MS21045-7 NUT,SELF-LOCKING,HEXAGON 99 HD NS

Subscribe to View Vendor Details...

MS20365-720C NUT,SELF-LOCKING,HEXAGON 99 HD NS

404-891 NUT,SELF-LOCKING,HEXAGON 99 HD NS

MS21045-7 NUT,SELF-LOCKING,HEXAGON 99 HD NS

Subscribe to View Vendor Details...

MS21045-7 NUT,SELF-LOCKING,HEXAGON 318 HD NS

Subscribe to View Vendor Details...

MS20365-720C NUT,SELF-LOCKING,HEXAGON 12 HD NS

MS21045-7 NUT,SELF-LOCKING,HEXAGON 50 HD NS

Subscribe to View Vendor Details...

MS21045-7 NUT,SELF-LOCKING,HEXAGON 325 HD NS

Subscribe to View Vendor Details...

MS21045-7 NUT,SELF-LOCKING,HEXAGON 92 HD NS

Subscribe to View Vendor Details...

TM9-2320-280-24P-21996PDFHUMV NUT,SELF-LOCKING,HEXAGON RQST NS

Subscribe to View Vendor Details...

F1801-070U NUT,SELF-LOCKING,HEXAGON 1 HD NS

MS21045-7 NUT,SELF-LOCKING,HEXAGON 12700 HD NS

Subscribe to View Vendor Details...

MS21045-7 NUT,SELF-LOCKING,HEXAGON 15 HD NS

Subscribe to View Vendor Details...

MS21045-7 NUT,SELF-LOCKING,HEXAGON 137 HD NS

Subscribe to View Vendor Details...

MS21045-7 NUT,SELF-LOCKING,HEXAGON 104 HD NS

Subscribe to View Vendor Details...

002749364.5310 NUT,SELF-LOCKING,HEXAGON 30 HD NS

Updated Every Day

5310-00-274-9364 RQST NE

Updated Every Day

5310-00-274-9364 RQST

Updated Every Day

5310-00-274-9364 RQST NE

Restrictions 5310-00-274-9364

5310-00-274-9364 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-274-9364

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-274-9364

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCLBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G180)
Effective Date:: 1 Sep 1993; AMC 0 AMSC 0 AAC B

NASA (G930)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJVJBHSHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Feb 2001

Poland (WP01)
Effective Date:: 1 Jul 2006

Brazil (YA01)
Effective Date:: 1 Aug 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

Approved Sources 5310-00-274-9364

Part Number
Manufacturer
Status
MS21045-7: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
27FH-720UN: 56878 - Sps Technologies, Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
27GH720: 56878 - Sps Technologies, Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
404 891: 77294 - Piper Industrial Manufacturing (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
YE3183: 75497 - Lamson And Sessions Co The (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
LFLH1801-070U: 019L2 - Esna, Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
F1801-070U: 019L2 - Esna, Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC E
F1801-070U: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
LFLH1801-070U: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5310002749364: A00AM - E.C.A Etablissement Central Des (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
406685: 77294 - Piper Industrial Manufacturing (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
MS21045-7: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
2GH813: 45152 - Oshkosh Corp (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 5310-00-274-9364

Characteristic
Specifications
FIIG: A021A0
Bearing Surface Finish [CSXL]: 125.0 Microinches
Bearing Surface Type [CRTM]: Chamfered Or Washer Faced
Countersink Angle [CRSQ]: 88.0 Degrees Nominal Nut
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.438 Inches
Nut Height [ADEA]: 0.435 Inches Minimum And 0.469 Inches Maximum
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Lubrication [ABAJ]: Soluble Lubricant
Width Across Flats [ASDB]: 0.679 Inches Minimum And 0.690 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall
Temp Rating [AZKQ]: 450.0 Deg Fahrenheit Nominal
Thread Direction [AAJF]: Right-Hand
Thread Class [AAJD]: 3B
Thread Quantity Per Inch [CMLP]: 20
Thread Series [BZRR]: Unjf

Weapon Systems (WSDC) 5310-00-274-9364

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-274-9364

Last Stock Position:: 31000 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-274-9364

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); HD; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-044-2800
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-044-2830
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-275-0789
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-844-0127

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

2: Non-Critical Repair Part

Echelon Management:

B2

Material Identification:

K: Reserved

Operational Test:

: No Special Procedures

Similar Supply Items to 5310-00-274-9364

Freight Information 5310-00-274-9364

5310-00-274-9364 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-274-9364 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-274-9364 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-274-9364 is not classified as a special type of cargo when transported by water. 5310-00-274-9364 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-274-9364

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-274-9364 7 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A623FB136: 22 Jun 2023; Subscribe; 208; Subscribe; Subscribe
SPE4A623FB136: 22 Jun 2023; Subscribe; 208; Subscribe; Subscribe
SPE4A621V602G: 09 Aug 2021; Subscribe; 40; Subscribe; Subscribe
SPE5EJ21V3139P00001: 12 Apr 2021; Subscribe; 173; Subscribe; Subscribe
SPE5E319V0108: 03 Oct 2018; Subscribe; 221; Subscribe; Subscribe
SPE5EM18V7210: 07 Aug 2018; Subscribe; 198; Subscribe; Subscribe
SPE5E817V1170: 08 Nov 2016; Subscribe; 273; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-274-9364 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-274-9364

Related Documents 5310-00-274-9364 5+ Documents (More...)

Restrictions 5310-00-274-9364

Import and Export 5310-00-274-9364

End Users 5310-00-274-9364

Approved Sources 5310-00-274-9364

Datasheet 5310-00-274-9364

Weapon Systems (WSDC) 5310-00-274-9364

DLA Procurement Analysis 5310-00-274-9364

Management Data 5310-00-274-9364

Army

Air Force

Navy

Marine Corps

Similar Supply Items to 5310-00-274-9364

Freight Information 5310-00-274-9364

Packaging Data 5310-00-274-9364

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-274-9364 7 Records

Contracting Technical Data File (CTDF) 5310-00-274-9364 February 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
