5310-00-272-5704

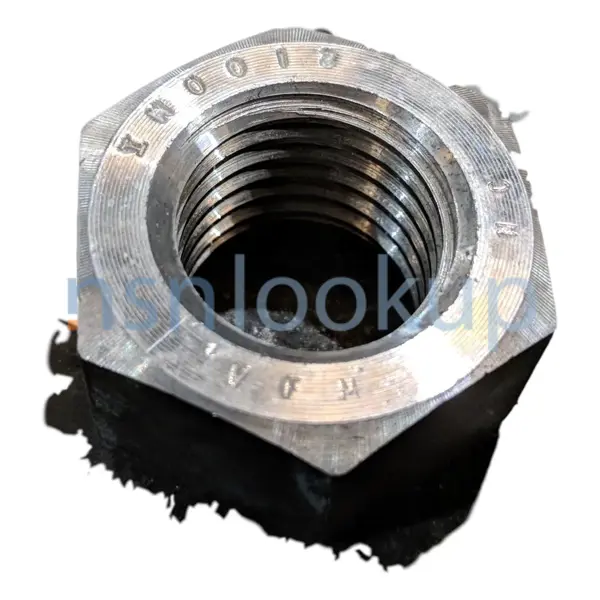

Hexagon Plain Nut
5310002725704 002725704 MIL-DTL-1222 6305-11 PIECE 46 M1222N2W16C20NBNN SSN688 203-4457005 PIECE 46 MIL-DTL-1222J TY 1 ST AORB GR405 MILB857TYPE2STYLEA0RB
A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.) View more Hexagon Plain Nut
November 2023
19
Marketplace 5310-00-272-5704
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-272-5704 5+ Documents (More...)
M1222N2W16C20NBNN NUT,PLAIN,HEXAGON 4 EA NS Request Quotation Subscribe to View Vendor Details... 6305
MIL-DTL-1222 NUT,PLAIN,HEXAGON 50 EA NS Request Quotation Updated Every Day 5310-00-272-5704 RQST NE
Hexagon Plain Nut 5310002725704 002725704 MIL-DTL-1222 6305-11 PIECE 46 M1222N2W16C20NBNN SSN688
203-4457005 PIECE 46 MIL-DTL-1222J TY 1 ST AORB GR405 Naval Ship Systems Command (Active) Canceled/Obsolete
Restrictions 5310-00-272-5704
5310-00-272-5704 is a Hexagon Plain Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-272-5704
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-272-5704
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTJBHD
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5310-00-272-5704
- Part Number
- Manufacturer
- Status
- M1222N2W16C20NBNN
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-1222
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- SSN688 203-4457005 PIECE 46
- 80064 - Naval Ship Systems Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-DTL-1222J TY 1 ST AORB GR405
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MILB857TYPE2STYLEA0RB
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6305-11 PIECE 46
- 43689 - Huntington Ingalls Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5310-00-272-5704
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Bearing Surface Type [CRTM]
- Washer Faced
- Material Document And Classification [MDCL]
- Mil-Dtl-1222, Grade 405 Fed Spec Single Material Response Nut
- Material [MATT]
- Nickel Alloy R-405 Overall
- Nominal Thread Size [CQJX]
- 1.000 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 405 Grade And As Formed Or Stress Relieved Condition
- Nut Height [ADEA]
- 0.831 Inches Minimum And 0.887 Inches Maximum
- Nut Style [ACTA]
- Hexagon
- Thread Series [BZRR]
- Unc
- Thread Quantity Per Inch [CMLP]
- 8
- Width Across Flats [ASDB]
- 1.450 Inches Minimum And 1.500 Inches Maximum
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
Weapon Systems (WSDC) 5310-00-272-5704
DLA Procurement Analysis 5310-00-272-5704
- Last Stock Position:
- 822 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-00-272-5704
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5310-00-272-5704
Freight Information 5310-00-272-5704
5310-00-272-5704 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 139820. A Sub NMFC of X. It has a NMFC Description of NICKEL BOLTS/NAILS/NUTS/RIVETS ETC. 5310-00-272-5704 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 70220 which rates the freight between FCL and LCL. 5310-00-272-5704 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-272-5704 is not classified as a special type of cargo when transported by water. 5310-00-272-5704 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-272-5704
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 5310-00-272-5704 4 Records
Contracting Technical Data File (CTDF) 5310-00-272-5704 April 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
