5310-00-249-5248
Stamped Nut
5310002495248 002495248 AC632C0G AC632 AC632EBG 7978435 W11284-1
A nut formed from sheet spring material, usually steel, into various shapes, having the external appearance of a solid nut, and having an aperture with suitable bosses, lugs, notches, and/or slits capable of securely gripping a mating threaded member. See also NUT (1), SHEET SPRING. View more Stamped Nut
August 2023
2
Marketplace 5310-00-249-5248
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-249-5248 3+ Documents (More...)
Every 15 Minutes 5310-00-249-5248 BUY NE FedMall Updated Every Day 5310-00-249-5248 RQST NE Updated
Every Day 5310-00-249-5248 RQST Updated Every Day 5310-00-249-5248 RQST NE Related Documents 5310-00-
1066/AC632 33/1066/AC632 H926-704983 Managed by United Kingdom NSN Created on 25 Apr 1991 Data Last
Stamped Nut 5310002495248 002495248 $1 a day Upgrade your Account Upgrade 5310-00-249-5248Stamped
Restrictions 5310-00-249-5248
5310-00-249-5248 is a Stamped Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-249-5248
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-249-5248
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBF
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
Approved Sources 5310-00-249-5248
- Part Number
- Manufacturer
- Status
- 7978435
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- AC632C0G
- 77122 - Trw Assemblies And Fasteners Group (Obsolete)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AC632
- 77122 - Trw Assemblies And Fasteners Group (Obsolete)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AC632EBG
- 77122 - Trw Assemblies And Fasteners Group (Obsolete)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- W11284-1
- 28835 - Hobart Bros Co (Active)
- Secondary Buy
- Secondary Buy

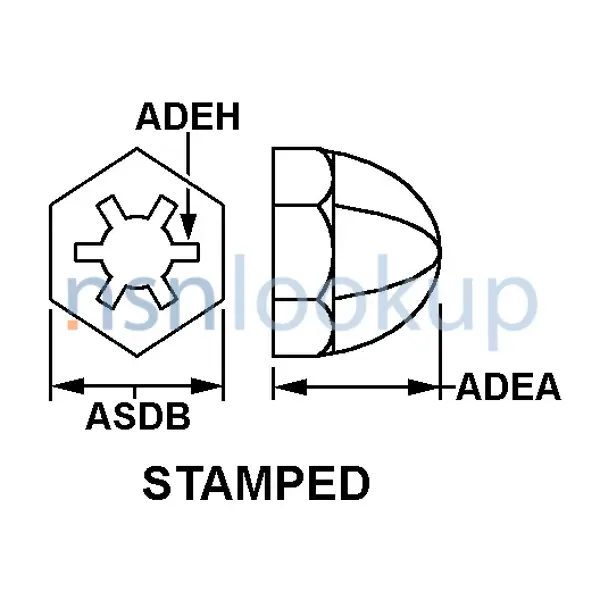

Datasheet 5310-00-249-5248
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Gripping Notch Quantity [ADEH]
- 1
- Material [MATT]
- Steel Overall
- Mating Member Diameter Accommodated [ACSZ]
- 0.138 Inches Nominal
- Nut Height [ADEA]
- 0.261 Inches Nominal
- Nut Style [ACTA]
- Stamped
- Width Across Flats [ASDB]
- 0.312 Inches Nominal
- Surface Treatment [SFTT]
- Cadmium Overall Or Zinc Overall
Weapon Systems (WSDC) 5310-00-249-5248
DLA Procurement Analysis 5310-00-249-5248
Management Data 5310-00-249-5248
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5310-00-249-5248
Freight Information 5310-00-249-5248
5310-00-249-5248 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-249-5248 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-249-5248 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-249-5248 is not classified as a special type of cargo when transported by water. 5310-00-249-5248 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-249-5248
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5310-00-249-5248 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
