5310-00-241-6664

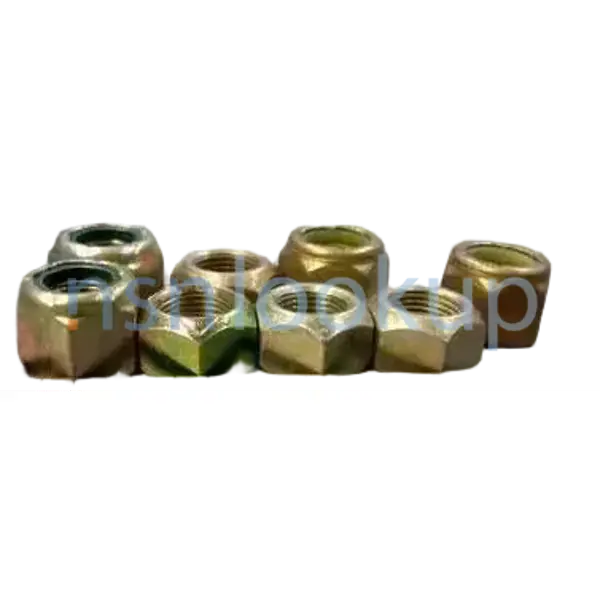

Hexagon Self-Locking Nut
5310002416664 002416664 122-5277737 ITEM 24 122-5277670 ITEM 24 M45913/3-10FG8C MS51943-44 2126 2191-107 10200506 5310001987565
A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut
Managed by United States
NSN Created on 11 Jul 1969
Data Last Changed
November 2023
November 2023
NATO Update Count
56
56
NATO Data Quality
Marketplace 5310-00-241-6664
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-241-6664 5+ Documents (More...)
9608Flat Washer5310014829608 014829608 122-5277670 https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-241-6664
Hexagon Self-Locking Nut 5310002416664 Account Upgrade 5310-00-241-6664Hexagon Self-Locking Nut5310002416664
002416664 122-5277737 ITEM 24 122-5277670 5277737 ITEM 24 53711 - Naval Sea Systems Command (Active)
Hexagon Self-Locking Nut 5310002416664 Account Upgrade 5310-00-241-6664Hexagon Self-Locking Nut5310002416664
002416664 122-5277737 ITEM 24 122-5277670 5277737 ITEM 24 53711 - Naval Sea Systems Command (Active)
9608Flat Washer5310014829608 014829608 122-5277670 https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-241-6664
Hexagon Self-Locking Nut 5310002416664 Account Upgrade 5310-00-241-6664Hexagon Self-Locking Nut5310002416664
002416664 122-5277737 ITEM 24 122-5277670 5277737 ITEM 24 53711 - Naval Sea Systems Command (Active)
Hexagon Self-Locking Nut 5310002416664 Account Upgrade 5310-00-241-6664Hexagon Self-Locking Nut5310002416664
002416664 122-5277737 ITEM 24 122-5277670 5277737 ITEM 24 53711 - Naval Sea Systems Command (Active)
MS51943-39 5310-00-488-3889 113 53 96906 MS51943-40 5310-00-488-3888 97 7 97 7 109 6 172 18 96906 MS51943-44
5310-00-241-6664 139 9 96906 MS51943-46 5310-00-935-3569 123 31 124 15 128 4 139 11 96906 MS51953
5310-00-241-6664 139 9 96906 MS51943-46 5310-00-935-3569 123 31 124 15 128 4 139 11 96906 MS51953
935-9021 Locknut 90 MS51943-36 5310-00-814-0672 Locknut 91 MS51943-40 5310-00-488-3888 Locknut 92 MS51943-44
5310-00-241-6664 Locknut 93 MS51943-46 5310-00-935-3569 Locknut 94 MS9021-225 5331-00-527-7939 O-Ring
5310-00-241-6664 Locknut 93 MS51943-46 5310-00-935-3569 Locknut 94 MS9021-225 5331-00-527-7939 O-Ring
MS90726-90 96906 SCREW:SHIFT LEVER CLAMP EA 1 GROUP 0800-TRANSFER 0801-POWER TRANSFER 5 1 PAFZZ 5310-00-241-6664
MS51943-44 96906 NUT,SELF-LOCKING,HEXAGON;SUPPORT STUD, EA 10 TRANSFER ASSEMBLY 5 2 PAFZZ 5307-
MS51943-44 96906 NUT,SELF-LOCKING,HEXAGON;SUPPORT STUD, EA 10 TRANSFER ASSEMBLY 5 2 PAFZZ 5307-
Restrictions 5310-00-241-6664
5310-00-241-6664 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-00-241-6664
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-241-6664
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AJCLBFBDAZ
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Finland (WF01)
- Effective Date:
- 1 Jan 2010
- Poland (WP01)
- Effective Date:
- 1 Jul 2006
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5310-00-241-6664
- Part Number
- Manufacturer
- Status
- M45913/3-10FG8C
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- 2126 2191-107
- AC90N - Bae Systems Hagglunds Aktiebolag (Active)
- Secondary Buy
- Secondary Buy
- MS51943-44
- A9271 - Goriziane Group Spa (Active)
- Secondary Buy
- Secondary Buy
- MS51943-44
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2126 2191-107
- S3465 - Bae Systems Hagglunds Ab (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5310002416664
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 10200506
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 5310001987565
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 122-5277737 ITEM 24
- 53711 - Naval Sea Systems Command (Active)
- Advisory Reference
- Advisory Reference
- 122-5277670 ITEM 24
- 53711 - Naval Sea Systems Command (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5310-00-241-6664
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Bearing Surface Type [CRTM]
- Chamfered Or Washer Faced
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum And 35.0 Rockwell C Maximum
- Material [MATT]
- Plastic Polyamide Locking Insert
- Material [MATT]
- Steel Nut
- Nominal Thread Size [CQJX]
- 0.625 Inches
- Nut Height [ADEA]
- 0.765 Inches Maximum
- Nut Style [ACTA]
- Hexagon
- Locking Feature [AAUM]
- Prevailing Torque With Nonmetallic Insert
- Width Across Flats [ASDB]
- 0.9220 Inches Minimum And 0.9395 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Nut
- Surface Treatment [SFTT]
- Cadmium Nut
- Temp Rating [AZKQ]
- 250.0 Deg Fahrenheit Nominal
- Thread Class [AAJD]
- 3B
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 18
- Thread Series [BZRR]
- Unf
Weapon Systems (WSDC) 5310-00-241-6664
DLA Procurement Analysis 5310-00-241-6664
- Last Stock Position:
- 98100 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-00-241-6664
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- US Marine Corps (DM)
- PG
- Subscribe
- 1
- PG
- Oct 2021
- Defense Logistics Agency (DS)
- PG
- Subscribe
- 1
- PG
- Oct 2020
- Defense Logistics Agency (DS)
- PG
- Subscribe
- 1
- PG
- Oct 2019
- Department of the Air Force (DF)
- PG
- Subscribe
- 1
- PG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- K
- U/I Contains 50 Ea
- 00000000050EA
- K
- Department of the Air Force (DF)
- F
- K
- U/I Contains 50 Ea
- 00000000050EA
- K
- US Marine Corps (DM)
- M
- K
- U/I Contains 50 Ea
- 00000000050EA
- K
- Department of the Navy (DN)
- N
- K
- U/I Contains 50 Ea
- 00000000050EA
- K
- Defense Logistics Agency (DS)
- I
- K
- U/I Contains 50 Ea
- 00000000050EA
- K
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5310-00-241-6664
5310-99-464-1164 5310-99-105-5300 5310-66-139-6386 5310-14-572-9383 5310-99-137-7019 5310-14-010-0678 5310-15-181-3119 5310-14-553-7547 5310-99-795-2566 5310-99-887-3853 5310-33-200-6844 5310-15-008-0903 5310-14-515-2624 5310-27-015-8542 5310-13-117-8192 5310-15-111-8076 5310-15-111-0803 5310-14-254-5116
Freight Information 5310-00-241-6664
5310-00-241-6664 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-241-6664 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-241-6664 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-241-6664 is not classified as a special type of cargo when transported by water. 5310-00-241-6664 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-241-6664
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 5310-00-241-6664 6 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5E319V0667
- 16 Oct 2018
- Subscribe
- 460
- Subscribe
- Subscribe
- Subscribe
- SPE5E318P1388P00001
- 29 Sep 2018
- Subscribe
- 774
- Subscribe
- Subscribe
- Subscribe
- SPE5E818V4529P00001
- 16 Mar 2018
- Subscribe
- 1040
- Subscribe
- Subscribe
- Subscribe
- SPE5E318V2624
- 29 Jan 2018
- Subscribe
- 376
- Subscribe
- Subscribe
- Subscribe
- SPE5E318V2303P00001
- 18 Jan 2018
- Subscribe
- 473
- Subscribe
- Subscribe
- Subscribe
- SPE5E317P0171P00001
- 10 May 2017
- Subscribe
- 1063
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5310-00-241-6664 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
