5310-00-217-8059
Spring Tension Washer
5310002178059 002178059 303345
A bent spring metal washer with a centrally located hole. It is designed to exert pressure axially when assembled in place. View more Spring Tension Washer
January 2023
12
Marketplace 5310-00-217-8059
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-217-8059 5+ Documents (More...)
RQST NE Updated Every Day 5310-00-217-8059 RQST Updated Every Day 5310-00-217-8059 RQST NE Related
Documents 5310-00-217-8059 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310
www.nsnlookup.com Intravenous Cannula 6515661460045661460045 303345 www.nsnlookup.com /fsg-65/fsc-6515
Spring Tension Washer 5310002178059 002178059 $1 a day Upgrade your Account Upgrade 5310-00-217-
web browser . 5340-12-370-5520Compression Cup5340123705520 123705520 4312000035 2178-04-00-01/27 303345
www.nsnlookup.com /fsg-65/fsc-6515/au 6515-66-146-0045 Intravenous Cannula 6515661460045661460045 303345
Spring Tension Washer 5310002178059 002178059 $1 a day Upgrade your Account Upgrade 5310-00-217
-8059Spring Tension Washer5310002178059 002178059 303345 a day Upgrade your Account Upgrade 5345-01-484
Spring Tension Washer 5310002178059 002178059 $1 a day Upgrade your Account Upgrade 5310-00-217
-8059Spring Tension Washer5310002178059 002178059 303345 a day Upgrade your Account Upgrade 5345-01-484
Restrictions 5310-00-217-8059
5310-00-217-8059 is a Spring Tension Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-217-8059
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-217-8059
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5310-00-217-8059
- Part Number
- Manufacturer
- Status
- 303345
- Manufacturer
- 56232 - Lockheed Martin Corporation (Active)
- Primary Buy
- Primary Buy

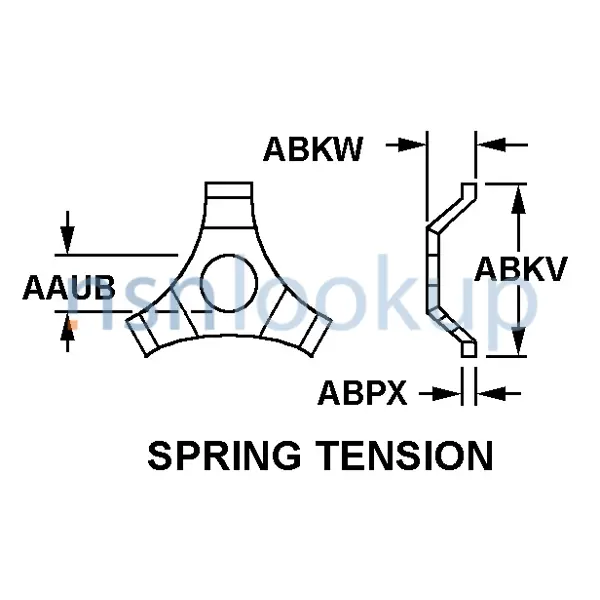

Datasheet 5310-00-217-8059
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0
- Hardness Rating [CQFM]
- 48.0 Rockwell C Minimum And 52.0 Rockwell C Maximum
- Hole Diameter [AAUB]
- 0.114 Inches Minimum And 0.119 Inches Maximum
- Material Document And Classification [MDCL]
- Mil-S-7947 Mil Spec Single Material Response Overall
- Material Thickness [ABPX]
- 0.012 Inches Nominal
- Material [MATT]
- Steel Comp 1095 Overall
- Outside Diameter [ABKV]
- 0.797 Inches Minimum And 0.828 Inches Maximum
- Overall Height [ABKW]
- 0.031 Inches Minimum And 0.062 Inches Maximum
- Style Designator [STYL]
- Spring Tension
- Surface Treatment [SFTT]
- Cadmium Overall
Similar Supply Items to 5310-00-217-8059
Freight Information 5310-00-217-8059
5310-00-217-8059 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194160. A Sub NMFC of X. It has a NMFC Description of WASHER OR GASKETS, IRON OR STEEL,. 5310-00-217-8059 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55210 which rates the freight between FCL and LCL. 5310-00-217-8059 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-217-8059 is not classified as a special type of cargo when transported by water. 5310-00-217-8059 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-217-8059
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
