Premium Information is available for this item - Upgrade for $1 a day
5310-00-209-4097

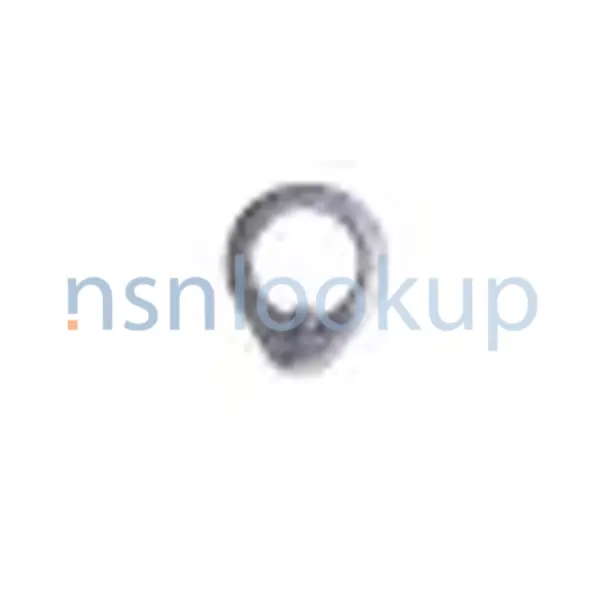

Key Washer
5310002094097 002094097 NAS513-14
A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer. View more Key Washer
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
41
41
NATO Data Quality
Marketplace 5310-00-209-4097
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-209-4097 5+ Documents (More...)
NAS513-14 WASHER 95 PG NS Request Quotation NAS513-14 WASHER 65 PG NS Request Quotation Subscribe to
NAS513-14 WASHER,KEY 130 PG NS Request Quotation NAS513-14 WASHER,KEY 130 PG NS Request Quotation Subscribe
NAS513-14 WASHER,KEY 24 PG NS Request Quotation Updated Every Day 5310-00-209-4097 RQST NE Updated Every
NAS513-14 WASHER,KEY 130 PG NS Request Quotation NAS513-14 WASHER,KEY 130 PG NS Request Quotation Subscribe
NAS513-14 WASHER,KEY 24 PG NS Request Quotation Updated Every Day 5310-00-209-4097 RQST NE Updated Every
6206 is a Key Washer Similar Supply Items to 9999-99-607-6206 5310-99-536-0857 5310-00-127-7328 5310-00-209-4097
9576 is a Key Washer Similar Supply Items to 9999-99-611-9576 5310-99-536-0857 5310-00-127-7328 5310-00-209-4097
9921 is a Key Washer Similar Supply Items to 9999-99-611-9921 5310-99-536-0857 5310-00-127-7328 5310-00-209-4097
6140 is a Key Washer Similar Supply Items to 9999-99-616-6140 5310-99-536-0857 5310-00-127-7328 5310-00-209-4097
Restrictions 5310-00-209-4097
5310-00-209-4097 is a Key Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-209-4097
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-209-4097
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCTBD
- US Coast Guard (C918)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- C004
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Poland (WP01)
- Effective Date:
- 1 Jul 2006
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- South Africa (ZD01)
- Effective Date:
- 1 Oct 2009
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5310-00-209-4097
- Part Number
- Manufacturer
- Status
- NAS513-14
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- NAS513-14
- K0668 - Leonardo Uk Ltd (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5310-00-209-4097
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0
- Distance From Key Center To Wire Hole Center [CQFW]
- 0.185 Inches Minimum And 0.191 Inches Maximum
- Hardness Rating [CQFM]
- 40.0 Rockwell C Minimum And 45.0 Rockwell C Maximum
- Hole Diameter [AAUB]
- 0.887 Inches Minimum And 0.907 Inches Maximum
- Material Document And Classification [MDCL]
- Mil-S-7947 Cond A Assn Std Single Material Response Overall
- Material Thickness [ABPX]
- 0.080 Inches Nominal
- Minimum Tensile Strength [CQBC]
- 180000 Pounds Per Square Inch
- Outside Diameter [ABKV]
- 1.310 Inches Minimum And 1.330 Inches Maximum
- Material [MATT]
- Steel Comp 1095 Overall
- Internal Prebent Key Width [ABLK]
- 0.137 Inches Minimum And 0.147 Inches Maximum
- Wire Hole Diameter [CRZZ]
- 0.080 Inches Nominal
- Specification/Standard Data [ZZZK]
- 80205-Nas513 Professional/Industrial Association Standard
- Style Designator [STYL]
- Internal Prebent Key
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 1,Cl 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
Weapon Systems (WSDC) 5310-00-209-4097
DLA Procurement Analysis 5310-00-209-4097
- Last Stock Position:
- 67625 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-00-209-4097
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- US Coast Guard (GP)
- PG
- Subscribe
- 1
- PG
- Oct 2021
- Department of the Army (DA)
- PG
- Subscribe
- 1
- PG
- Oct 2020
- US Marine Corps (DM)
- PG
- Subscribe
- 1
- PG
- Oct 2019
- Department of the Air Force (DF)
- PG
- Subscribe
- 1
- PG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- K
- U/I Contains 25 Ea
- 00000000025EA
- K
- Department of the Air Force (DF)
- F
- K
- U/I Contains 25 Ea
- 00000000025EA
- K
- US Marine Corps (DM)
- M
- K
- U/I Contains 25 Ea
- 00000000025EA
- K
- Department of the Navy (DN)
- N
- K
- U/I Contains 25 Ea
- 00000000025EA
- K
- Defense Logistics Agency (DS)
- I
- K
- U/I Contains 25 Ea
- 00000000025EA
- K
- US Coast Guard (GP)
- C
- K
- U/I Contains 25 Ea
- 00000000025EA
- K
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- BJ
- Rotary Wing Aircraft
AH-64 Airframe
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5310-00-209-4097
Freight Information 5310-00-209-4097
5310-00-209-4097 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194160. A Sub NMFC of X. It has a NMFC Description of WASHER OR GASKETS, IRON OR STEEL,. 5310-00-209-4097 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55210 which rates the freight between FCL and LCL. 5310-00-209-4097 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-209-4097 is not classified as a special type of cargo when transported by water. 5310-00-209-4097 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-209-4097
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5310-00-209-4097 4 Records
Contracting Technical Data File (CTDF) 5310-00-209-4097 February 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
