5310-00-209-0786

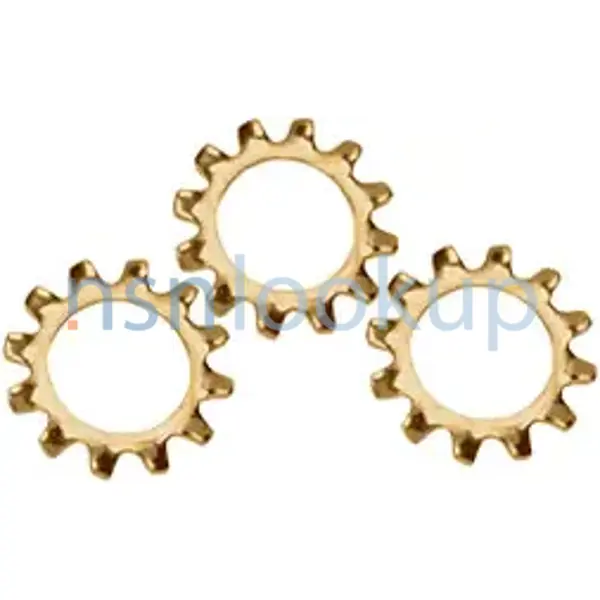

Lock Washer
5310002090786 002090786 69103 AN936B416 1114-00 MS35335-33 104-3S416B 76574 193-8 853074 853-1013 AN936-B416 402350207 801625-551-003 PC NO 17A 114604 801625-551-003 PC NO 18A 407 127 0740794 FFW100 373-5042-00 373-5042-000 0076574 453475 1114-13 70178-33 5310001670870 121753
A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces View more Lock Washer
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
June 2025
June 2025
NATO Update Count
91
91
NATO Data Quality
Marketplace 5310-00-209-0786
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-209-0786 5+ Documents (More...)
69103 AN936B416 1114-00 MS35335-33 104-3S416B 76574 193-8 853074 853-1013 AN936-B416 402350207 801625
-551-003 PC NO 17A 114604 801625-551-003 PC NO 18A 407 127 0740794 FFW100 373-5042-00 373-5042-000 0076574
453475 1114-13 70178-33 5310001670870 121753 A washer which is usually round with a centrally located
-551-003 PC NO 17A 114604 801625-551-003 PC NO 18A 407 127 0740794 FFW100 373-5042-00 373-5042-000 0076574
453475 1114-13 70178-33 5310001670870 121753 A washer which is usually round with a centrally located
MS35335-33 WASHER,LOCK 4 EA NS Request Quotation 373-5042-000 WASHER,LOCK 4 EA NS Request Quotation 453475
MS35335-33 WASHER,LOCK 87 EA NS Request Quotation 69103 WASHER,LOCK 2 EA NS Request Quotation Subscribe
MS35335-19 WASHER,LOCK 100 EA NS Request Quotation MS35335-33 WASHER,LOCK 281 EA NS Request Quotation
MS35335-33 WASHER,LOCK 87 EA NS Request Quotation 69103 WASHER,LOCK 2 EA NS Request Quotation Subscribe
MS35335-19 WASHER,LOCK 100 EA NS Request Quotation MS35335-33 WASHER,LOCK 281 EA NS Request Quotation
MS35335-33 WASHER,LOCK 4 HD NS Request Quotation 373-5042-000 WASHER,LOCK 4 HD NS Request Quotation 453475
AN936B416 WASHER,LOCK 23 HD NS Request Quotation Subscribe to View Vendor Details...
MS35335-33 WASHER,LOCK 87 HD NS Request Quotation 69103 WASHER,LOCK 2 HD NS Request Quotation Subscribe
AN936B416 WASHER,LOCK 23 HD NS Request Quotation Subscribe to View Vendor Details...
MS35335-33 WASHER,LOCK 87 HD NS Request Quotation 69103 WASHER,LOCK 2 HD NS Request Quotation Subscribe
to View Vendor Details... 453475 WASHER,LOCK 4 EA NS Request Quotation 373-5042-000 WASHER,LOCK 4 EA
AN936B416 WASHER,LOCK 23 EA NS Request Quotation Subscribe to View Vendor Details...
MS35335-33 WASHER,LOCK 87 EA NS Request Quotation 69103 WASHER,LOCK 2 EA NS Request Quotation Subscribe
AN936B416 WASHER,LOCK 23 EA NS Request Quotation Subscribe to View Vendor Details...
MS35335-33 WASHER,LOCK 87 EA NS Request Quotation 69103 WASHER,LOCK 2 EA NS Request Quotation Subscribe
to View Vendor Details... 373-5042-000 WASHER,LOCK 4 EA NS Request Quotation MS35335-33 WASHER,LOCK
AN936B416 WASHER,LOCK 23 EA NS Request Quotation Subscribe to View Vendor Details...
MS35335-33 WASHER,LOCK 87 EA NS Request Quotation 69103 WASHER,LOCK 2 EA NS Request Quotation Subscribe
AN936B416 WASHER,LOCK 23 EA NS Request Quotation Subscribe to View Vendor Details...
MS35335-33 WASHER,LOCK 87 EA NS Request Quotation 69103 WASHER,LOCK 2 EA NS Request Quotation Subscribe
Restrictions 5310-00-209-0786
5310-00-209-0786 is a Lock Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5310-00-209-0786
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-209-0786
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AJCTCLBFBDAZ
- MOE Rule:
- B031
- Effective Date:
- 1 Apr 1991
- MOE Rule:
- BGX1
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- BKZ1
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G120)
- Effective Date:
- 1 Apr 1991
- NASA (G170)
- Effective Date:
- 1 Apr 1991
- NASA (G180)
- Effective Date:
- 1 Apr 1991
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- NASA (G930)
- Effective Date:
- 1 Apr 1991
- NASA (G940)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKEJVJBHXHSHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Finland (WF01)
- Effective Date:
- 1 Feb 2013
- Hungary (WH01)
- Effective Date:
- 1 Aug 2008
- Lithuania (WI01)
- Effective Date:
- 1 Jul 2000
- Poland (WP01)
- Effective Date:
- 1 Jul 2006
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Mar 1997
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Sep 2004
Approved Sources 5310-00-209-0786
- Part Number
- Manufacturer
- Status
- MS35335-33
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- 69103
- 13841 - Tiffin Parts, L.L.C. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AN936B416
- 88044 - Aeronautical Standards Group (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 1114-00
- 30323 - Illinois Tool Works Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS35335-33
- 05QS6 - Lm Products, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 104-3S416B
- 80063 - Us Army Communications & Electronics (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 0076574
- 0B6S1 - International Business Machines Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 76574
- 0B6S1 - International Business Machines Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 193-8
- 10988 - Cnh Industrial America Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 853074
- 19203 - Combat Capabilities Development (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 853-1013
- 44940 - Cummins Power Generation Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 407 127
- 77294 - Piper Industrial Manufacturing (Active)
- Secondary Buy
- Secondary Buy
- 0740794
- S3002 - General Dynamics European, (Active)
- Secondary Buy
- Secondary Buy
- 373-5042-00
- 13499 - Rockwell Collins, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 373-5042-000
- 13499 - Rockwell Collins, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 0076574
- 30874 - International Business Machines (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 453475
- 16764 - General Motors Corp Delco Remy Div (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 402350207
- S5686 - Israel Military Industries Ltd (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5310002090786
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 1114-13
- 78189 - Itw Shakeproof Automotive Products (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 76574
- 30874 - International Business Machines (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 70178-33
- 95097 - Little Giant Crane And Shovel Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 1114-00
- 78189 - Itw Shakeproof Automotive Products (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5310001670870
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 121753
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS35335-19
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 456720122903
- 0000V - Ncb Hungary (Honvedsegi Egyseges (Active)
- NATO Reference
- NATO Reference
- 10351369
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 5310PL0550280
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- AN936-B416
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 801625-551-003 PC NO 17A
- 71956 - Reliance Electric Company (Active)
- Advisory Reference
- Advisory Reference
- 114604
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 801625-551-003 PC NO 18A
- 71956 - Reliance Electric Company (Active)
- Advisory Reference
- Advisory Reference
- FFW100
- 81348 - Federal Specifications Promulgated (Active)
- Transferred
- Transferred
Datasheet 5310-00-209-0786
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0
- Hardness Rating [CQFM]
- 40.0 Rockwell C Minimum And 50.0 Rockwell C Maximum
- Hole Diameter [AAUB]
- 0.256 Inches Minimum And 0.267 Inches Maximum
- Material Thickness [ABPX]
- 0.023 Inches Minimum And 0.028 Inches Maximum
- Material [MATT]
- Steel Comp 1050 Or Steel Comp 1551 Or Steel Comp 1552 Or Steel Comp 1053 Or Steel Comp 1055 Or Steel Comp 1059 Or Steel Comp 1060 Or Steel Comp 1561 Or Steel Comp 1064 Overall
- Outside Diameter [ABKV]
- 0.494 Inches Minimum And 0.510 Inches Maximum
- End Item Identification [AGAV]
- W/S:Aircraft, (Ac-130H, Mc-130H, Ec-130E, Hc-130); Compressor, Reciprocating M4; Airborne Mobile Dir Air Spt Ctl (2Id), (02M Jul83)(An/Uyq-3A); Aviation Engine Test Systems (Aets); Support Equipment, B-1 Aircraft; Central Message Switch, An/Tyc-39A; Boile; Medium Mine Protected Vehicle - Mmpv
- Material Document And Classification [MDCL]
- 66 Fed Std All Material Responses Overall
- Style Designator [STYL]
- Flat External Teeth
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium And Chromate Overall
Weapon Systems (WSDC) 5310-00-209-0786
DLA Procurement Analysis 5310-00-209-0786
- Last Stock Position:
- 123000 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-00-209-0786
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- HD
- Subscribe
- 1
- HD
- Oct 2021
- Defense Logistics Agency (DS)
- HD
- Subscribe
- 1
- HD
- Oct 2020
- US Marine Corps (DM)
- HD
- Subscribe
- 1
- HD
- Oct 2019
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5310-01-050-1310
- 4
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- T
- Maintenance Float Secondary Non-depot Reparables
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5310-00-209-0786
5310-23-110-7630 5310-66-049-5342 5310-17-109-8746 5310-34-030-5442 5310-26-300-3982 5310-21-852-6871 5310-22-610-5977 5310-12-330-7242 5310-22-620-5962 5310-66-142-6413 5310-99-752-9051 5310-37-516-3815 5310-32-086-4968 5310-17-111-0707 5310-99-786-1594 5310-34-029-5371 5310-25-160-3604 5310-99-414-9072
Freight Information 5310-00-209-0786
5310-00-209-0786 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194160. A Sub NMFC of X. It has a NMFC Description of WASHER OR GASKETS, IRON OR STEEL,. 5310-00-209-0786 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55210 which rates the freight between FCL and LCL. 5310-00-209-0786 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-209-0786 is not classified as a special type of cargo when transported by water. 5310-00-209-0786 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-209-0786
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5310-00-209-0786 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
