5310-00-167-0822

Flat Washer

5310001670822 001670822 FFW92 005894 J42A53 WA9068 7725882 AN960716 3188547SH3PC24 5125108 AN960-716 2410075 ASNA2397-716 407 568 938.77.11.121 MEP-00009999 C-336-7 9647-4 1019039-008 5220118000 5-220-1-18-000 851097-00 Z00.N5741503475 5310PL0715196

A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items. View more Flat Washer

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
August 2025

NATO Update Count
61

NATO Data Quality

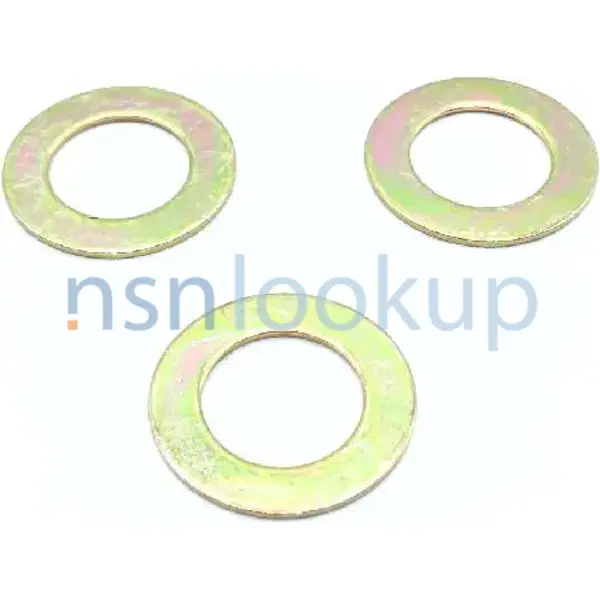

5310-00-167-0822 WASHER,FLAT 5310001670822 001670822 1/4 — 5310-00-167-0822 Photo 1/4

AAGR Style 1 for 5310-00-167-0822 2/4 — NSN 5310-00-167-0822 (Identification) 2/4

ABMW Style 1 for 5310-00-167-0822 3/4 — NSN 5310-00-167-0822 (Identification) 3/4

ABMX Style 1 for 5310-00-167-0822 4/4 — NSN 5310-00-167-0822 (Identification) 4/4

Marketplace 5310-00-167-0822

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

AN960-716 WASHER,FLAT 54 HD NS

Subscribe to View Vendor Details...

AN960-716 WASHER,FLAT 62 HD NS

Subscribe to View Vendor Details...

AN960-716 WASHER,FLAT 6 HD NS

Subscribe to View Vendor Details...

AN960-716 WASHER,FLAT 5743 HD NS

Subscribe to View Vendor Details...

5310-00-167-0822 WASHER,FLAT 407 HD NS

Subscribe to View Vendor Details...

AN960-716 WASHER,FLAT 158 HD NS

Subscribe to View Vendor Details...

FFW92 WASHER,FLAT 15 HD NS

Subscribe to View Vendor Details...

Updated 2 Days Ago

1019039-008 WASHER 760 HD NS

AN960-716 WASHER 1160 HD NS

AN960-716 WASHER 400 HD NS

AN960-716 WASHER 133 HD NS

J42A53 WASHER 115 HD NS

Subscribe to View Vendor Details...

938.77.11.121WASHERT703OH58HU WASHER,FLAT RQST NS

Subscribe to View Vendor Details...

AN960716 WASHER,FLAT 212 HD NS

AN960-716 WASHER,FLAT 377 HD NS

Subscribe to View Vendor Details...

AN960-716 WASHER,FLAT 670 HD NS

Subscribe to View Vendor Details...

AN960-716 WASHER,FLAT 213 HD NS

Updated Every Day

5310-00-167-0822 RQST NE

Updated Every Day

5310-00-167-0822 RQST

Updated Every Day

5310-00-167-0822 RQST NE

Restrictions 5310-00-167-0822

5310-00-167-0822 is a Flat Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-167-0822

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-167-0822

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

MOE Rule:: BGX1
Effective Date:: 1 Apr 2006
Former MOE Rule:: BKZ1; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G070)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G180)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G190)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Feb 2007; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJVJBHXHSHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Feb 2001

Slovenia (WL01)
Effective Date:: 1 Apr 2006

Poland (WP01)
Effective Date:: 1 Jan 2005

Romania (WR01)
Effective Date:: 1 Feb 2012

Bulgaria (WU01)
Effective Date:: 1 Oct 2002

MOE Rule:: X002
Effective Date:: 1 Apr 1991

Brazil (YA01)
Effective Date:: 1 Dec 1999

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Thailand (YY01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5310-00-167-0822

Part Number
Manufacturer
Status
AN960-716: 88044 - Aeronautical Standards Group (Active); Definitive Standard; RNCC 2 RNVC 2 DAC 6
FFW92: 81348 - Federal Specifications Promulgated (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC 6
005894: 78640 - Mitsubishi Caterpillar Forklift (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
J42A53: 58588 - Surface Combustion Inc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 2
WA9068: 92755 - Northrop Grumman Systems Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 2
7725882: 19207 - U S Army Tank Automotive Command (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 2
2410075: 001JK - Embraer S.A. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
ASNA2397-716: F6198 - Airbus Operations (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
407 568: 77294 - Piper Industrial Manufacturing (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
938.77.11.121: S4080 - Pilatus Aircraft Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
MEP-00009999: FAQ15 - Safran Electronics & Defense (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
C-336-7: C4738 - Mt-Propeller Gerd Muehlbauer Gmbh (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
1019039-008: 05037 - Anacomp, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5220118000: F0086 - Daher Aerospace - Ex Socata (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
5-220-1-18-000: F0086 - Daher Aerospace - Ex Socata (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
851097-00: 32345 - Defense Reduction Agency (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
Z00.N5741503475: F0086 - Daher Aerospace - Ex Socata (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5310001670822: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
2410075: S4956 - Embraer Empresa Brasileira De (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AN960-716: FAQZ8 - Aero Paul (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5310PL0715196: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310001670822: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
AN960716: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
3188547SH3PC24: 59364 - Honeywell International Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
5125108: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
9647-4: 98889 - Aerocontrolex Group, Inc. (Active); Transferred; RNCC E RNVC 8 DAC 4

Datasheet 5310-00-167-0822

Characteristic
Specifications
FIIG: A022B0
Center Hole Shape Style [ABMX]: Round
Cross-Sectional Shape Style [AAGR]: Rectangular
Hole Diameter [AAUB]: 0.443 Inches Minimum And 0.463 Inches Maximum
Material Document And Classification [MDCL]: Mil-S-7952 Mil Spec Single Material Response Overall Or Qq-S-698 Fed Spec Single Material Response Overall
Material [MATT]: Steel Overall
Nondefinitive Spec/Std Data [ZZZT]: A Type And 2 Grade And A Class
Overall Diameter [ADAV]: 0.745 Inches Minimum And 0.770 Inches Maximum
Peripheral Shape Style [ABMW]: Round
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 2 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall And Chromate Overall
Thickness [ABNM]: 0.053 Inches Minimum And 0.073 Inches Maximum

Subscribe
View Data

DLA Procurement Analysis 5310-00-167-0822

Last Stock Position:: 900 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-167-0822

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2021: Department of the Air Force (DF); HD; Subscribe; 1
Oct 2020: Department of the Air Force (DF); HD; Subscribe; 1
Apr 2020: Department of the Air Force (DF); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
Department of the Army (DA): A; F; When Exhausted Use 5310-01-391-7138
Department of the Air Force (DF): F; F; When Exhausted Use 5310-01-391-7138
Department of the Air Force (DF): F; R; Refer To S013917138; S013917138
US Marine Corps (DM): M; F; When Exhausted Use 5310-01-391-7138
Defense Logistics Agency (DS): I; F; When Exhausted Use 5310-01-391-7138

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

BJ: Rotary Wing Aircraft
AH-64 Airframe

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

Physical Category:

1: Bin

Similar Supply Items to 5310-00-167-0822

Freight Information 5310-00-167-0822

5310-00-167-0822 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194160. A Sub NMFC of X. It has a NMFC Description of WASHER OR GASKETS, IRON OR STEEL,. 5310-00-167-0822 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55210 which rates the freight between FCL and LCL. 5310-00-167-0822 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-167-0822 is not classified as a special type of cargo when transported by water. 5310-00-167-0822 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-167-0822

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; UU-B-36, Bags, Paper Grocers; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5310-00-167-0822 8 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE5EY18F366GP00009: 28 Aug 2018; Subscribe; 5; Subscribe; Subscribe
SPE5EN18F1001: 31 Dec 2017; Subscribe; 569; Subscribe; Subscribe
SPE5EN18F0687: 03 Dec 2017; Subscribe; 1; Subscribe; Subscribe
SPE5EN18F0497: 12 Nov 2017; Subscribe; 187; Subscribe; Subscribe
SPE5EN18F0384: 05 Nov 2017; Subscribe; 349; Subscribe; Subscribe
SPM5EY13D05530064: 04 Sep 2017; Subscribe; 2; Subscribe; Subscribe
SPM5EY13D05530052: 02 Apr 2017; Subscribe; 3; Subscribe; Subscribe
SPM5EY13D05530048: 23 Jan 2017; Subscribe; 17; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-167-0822 August 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: N

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-167-0822

Related Documents 5310-00-167-0822 5+ Documents (More...)

Restrictions 5310-00-167-0822

Import and Export 5310-00-167-0822

End Users 5310-00-167-0822

Approved Sources 5310-00-167-0822

Datasheet 5310-00-167-0822

DLA Procurement Analysis 5310-00-167-0822

Management Data 5310-00-167-0822

Army

Air Force

Navy

Marine Corps

Similar Supply Items to 5310-00-167-0822

Freight Information 5310-00-167-0822

Packaging Data 5310-00-167-0822

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-167-0822 8 Records

Contracting Technical Data File (CTDF) 5310-00-167-0822 August 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
