5310-00-149-9116

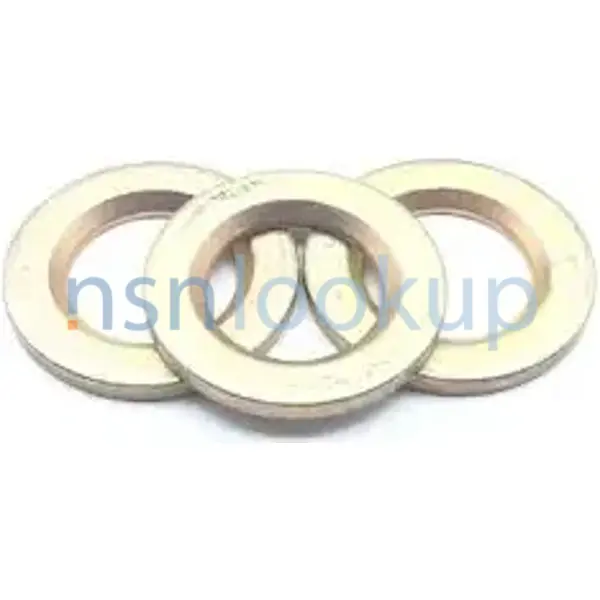

Recessed Washer
5310001499116 001499116 52122 FIND 54 21326 FIND 26 21835 FIND 51 T4M284-8C 52103 FIND 53 145-4510923-105 9387511105 NASM20002-C8 MS20002C8 NAS143-8C 5310PL0150699 10419054
A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED. View more Recessed Washer
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
70
70
NATO Data Quality
Marketplace 5310-00-149-9116
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
MS20002C8 WASHER 100 PG NS
MS20002C8 WASHER 50 PG NS
MS20002-C8 WASHER 50 PG NS
MS20002C8 WASHER 980 PG NS
MS20002C8 WASHER 150 PG NS
MS20002C8 WASHER 5 PG NS
Updated Every Day 5310-00-149-9116 RQST NE
Updated Every Day 5310-00-149-9116 RQST
Updated Every Day 5310-00-149-9116 RQST NE
Related Documents 5310-00-149-9116 5+ Documents (More...)
5310-00-149-9116 34 19 96906 MS20073-06-11 5306-00-822-5176 16 23 96906 MS20500-720A 5310-00-493-4020
Hexagon Self-Locking Nut 5310014650867 2CA, AVDS-1790-2DA and AVDS-1790-2DR Page 316 19 48 96906 MS20002C8
5310-00-149-9116 34 19 96906 MS20073-06-11 5306-00-822-5176 16 23 96906 MS20500-720A Restrictions 5310
Hexagon Self-Locking Nut 5310014650867 2CA, AVDS-1790-2DA and AVDS-1790-2DR Page 316 19 48 96906 MS20002C8
5310-00-149-9116 34 19 96906 MS20073-06-11 5306-00-822-5176 16 23 96906 MS20500-720A Restrictions 5310
6133 43 2 96906 MS19068-051 5310-00-185-6426 19 47 96906 MS19070-051 5310-00-159-6495 19 48 96906 MS20002C8
5310-00-149-9116 34 19 96906 MS20073-06-11 5306-00-822-5176 16 23 96906 MS20500-720A 5310-00-493-4020
5310-00-149-9116 34 19 96906 MS20073-06-11 5306-00-822-5176 16 23 96906 MS20500-720A 5310-00-493-4020
2012 49 27 96906 MS19068-051 5310-00-185-6426 19 54 96906 MS19070-051 5310-00-159-6495 19 55 96906 MS20002C8
5310-00-149-9116 36 23 96906 MS20365-524A 5310-00-262-6375 30 19 96906 MS20500-720A 5310-00-493-4020
5310-00-149-9116 36 23 96906 MS20365-524A 5310-00-262-6375 30 19 96906 MS20500-720A 5310-00-493-4020
PAFZZ 5306-01-510-8451 19207 7323987 BOLT,MACHINE ................................... 2 23 PAFZZ 5310-00-149-9116
96906 MS20002C8 WASHER,RECESSED .............................. 4 24 PAFZZ 5306-00-678-4260 19207
96906 MS20002C8 WASHER,RECESSED .............................. 4 24 PAFZZ 5306-00-678-4260 19207
https//www.nsnlookup.com
/fsg-53/fsc-5310/us
/fsg-53/fsc-5310/us
5310-01-465-0867 Hexagon Self-Locking Nut 5310014650867
220-24P Parts Manual for AVDS-1790-2CA AVDS-1790-2DA and AVDS-1790-2DR Page 390 6495 19 55 96906 MS20002C8
5310-00-149-9116 36 23 96906 MS20365-524A 5310-00-262-6375 30 19 96906 MS20500-720A https//www.nsnlookup.com
2815-220-34P Parts Manual for AVDS-1790-2CA, AVDS-1790-2DA and AVDS-1790-2DR Page 316 19 48 96906 MS20002C8
5310-00-149-9116 36 23 96906 MS20365-524A 5310-00-262-6375 30 19 96906 MS20500-720A https//www.nsnlookup.com
2815-220-34P Parts Manual for AVDS-1790-2CA, AVDS-1790-2DA and AVDS-1790-2DR Page 316 19 48 96906 MS20002C8
Restrictions 5310-00-149-9116
5310-00-149-9116 is a Recessed Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-149-9116
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-149-9116
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCTBFBD
- MOE Rule:
- B031
- Effective Date:
- 1 Apr 1991
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- Supplementary Receivers:
- XH
- US Air Force (FGGI)
- Effective Date:
- 1 Aug 2009
- Former MOE Rule:
- FXGI
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKEJBHD
- MOE Rule:
- RGX1
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- R478
- Supplementary Collaborators:
- TR
- Finland (WF01)
- Effective Date:
- 1 Feb 2008
- Lithuania (WI01)
- Effective Date:
- 1 Jan 2010
- Slovenia (WL01)
- Effective Date:
- 1 Jan 2007
- Poland (WP01)
- Effective Date:
- 1 Apr 2006
- Romania (WR01)
- Effective Date:
- 1 Feb 2012
- Bulgaria (WU01)
- Effective Date:
- 1 Oct 2002
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5310-00-149-9116
- Part Number
- Manufacturer
- Status
- MS20002C8
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- MS20002C8
- K0668 - Leonardo Uk Ltd (Active)
- Secondary Buy
- Secondary Buy
- 145-4510923-105
- 51563 - Rohr, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 9387511105
- S4080 - Pilatus Aircraft Ltd (Active)
- Secondary Buy
- Secondary Buy
- NASM20002-C8
- 80205 - National Aerospace Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS20002C8
- 0P012 - H. V. Mody, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- MS20002C8
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- NAS143-8C
- 80205 - National Aerospace Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5310PL0150699
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 10419054
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 5310001499116
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 52122 FIND 54
- 78062 - Sargent Aerospace & Defense, Llc (Active)
- Advisory Reference
- Advisory Reference
- 21326 FIND 26
- 78062 - Sargent Aerospace & Defense, Llc (Active)
- Advisory Reference
- Advisory Reference
- 21835 FIND 51
- 78062 - Sargent Aerospace & Defense, Llc (Active)
- Advisory Reference
- Advisory Reference
- T4M284-8C
- 10630 - Anillo Industries Inc (Active)
- Advisory Reference
- Advisory Reference
- 52103 FIND 53
- 53711 - Naval Sea Systems Command (Active)
- Advisory Reference
- Advisory Reference
- T4M284-8C
- 59570 - Trico Manufacturing Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5310-00-149-9116
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0
- Hole Diameter [AAUB]
- 0.504 Inches Minimum And 0.515 Inches Maximum
- Material Thickness [ABPX]
- 0.078 Inches Nominal
- Material [MATT]
- Steel Comp 1330 Overall Or Steel Comp 4130 Overall
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Outside Diameter [ABKV]
- 0.875 Inches Nominal
- Material Document And Classification [MDCL]
- 66 Fed Std All Material Responses Overall
- Recess Angle [CSTM]
- 90.0 Degrees Nominal
- Recess Diameter [ABMD]
- 0.604 Inches Minimum And 0.620 Inches Maximum
- Style Designator [STYL]
- Recessed
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
Weapon Systems (WSDC) 5310-00-149-9116
DLA Procurement Analysis 5310-00-149-9116
- Last Stock Position:
- 258850 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-00-149-9116
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- US Coast Guard (GP)
- PG
- Subscribe
- 1
- PG
- Oct 2021
- Department of the Air Force (DF)
- PG
- Subscribe
- 1
- PG
- Oct 2020
- Department of the Air Force (DF)
- PG
- Subscribe
- 1
- PG
- Feb 2020
- Department of the Army (DA)
- PG
- Subscribe
- 1
- PG
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- K
- U/I Contains 50 Ea
- 00000000050EA
- K
- Department of the Air Force (DF)
- F
- K
- U/I Contains 50 Ea
- 00000000050EA
- K
- US Marine Corps (DM)
- M
- K
- U/I Contains 50 Ea
- 00000000050EA
- K
- Department of the Navy (DN)
- N
- K
- U/I Contains 50 Ea
- 00000000050EA
- K
- Defense Logistics Agency (DS)
- I
- K
- U/I Contains 50 Ea
- 00000000050EA
- K
- US Coast Guard (GP)
- C
- K
- U/I Contains 50 Ea
- 00000000050EA
- K
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- BK
- Rotary Wing Aircraft
CH-47
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- HL
- TH-1H SUPT HELICOPTER
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5310-00-149-9116
5310-99-617-5290 5310-99-710-3082 5310-99-717-6434 5310-99-849-8750 5310-12-390-7087 5310-12-392-1942 5310-99-713-1470 5310-99-719-3589 5310-12-143-5488 5310-12-300-2174 5310-21-901-8880 5310-99-712-3273 5310-99-149-3020 5310-12-349-3538 5310-12-390-7473 5310-99-641-2487 5310-12-357-6774 5310-21-813-2956
Freight Information 5310-00-149-9116
5310-00-149-9116 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 194160. A Sub NMFC of X. It has a NMFC Description of WASHER OR GASKETS, IRON OR STEEL,. 5310-00-149-9116 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55210 which rates the freight between FCL and LCL. 5310-00-149-9116 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-149-9116 is not classified as a special type of cargo when transported by water. 5310-00-149-9116 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5310-00-149-9116
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 5310-00-149-9116 23 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPEHA624F0162
- 24 Oct 2023
- Subscribe
- 37
- Subscribe
- Subscribe
- Subscribe
- SPEHA624F0162
- 24 Oct 2023
- Subscribe
- 37
- Subscribe
- Subscribe
- Subscribe
- SPEHA623F1924
- 18 Sep 2023
- Subscribe
- 98
- Subscribe
- Subscribe
- Subscribe
- SPEHA623F1924
- 18 Sep 2023
- Subscribe
- 98
- Subscribe
- Subscribe
- Subscribe
- SPEHA623F1576
- 17 Jul 2023
- Subscribe
- 36
- Subscribe
- Subscribe
- Subscribe
- SPEHA623F1576
- 17 Jul 2023
- Subscribe
- 36
- Subscribe
- Subscribe
- Subscribe
- SPEHA623F1417P00001
- 20 Jun 2023
- Subscribe
- 156
- Subscribe
- Subscribe
- Subscribe
- SPEHA623F1417
- 20 Jun 2023
- Subscribe
- 156
- Subscribe
- Subscribe
- Subscribe
- SPEHA623F1417P00001
- 20 Jun 2023
- Subscribe
- 156
- Subscribe
- Subscribe
- Subscribe
- SPEHA622F1113
- 15 Jul 2022
- Subscribe
- 220
- Subscribe
- Subscribe
- Subscribe
- SPEHA622F1113
- 15 Jul 2022
- Subscribe
- 220
- Subscribe
- Subscribe
- Subscribe
- SPEHA622F0054
- 04 Oct 2021
- Subscribe
- 221
- Subscribe
- Subscribe
- Subscribe
- SPEHA622F0054
- 04 Oct 2021
- Subscribe
- 221
- Subscribe
- Subscribe
- Subscribe
- SPEHA621F0465
- 24 May 2021
- Subscribe
- 183
- Subscribe
- Subscribe
- Subscribe
- SPEHA621F0465
- 24 May 2021
- Subscribe
- 183
- Subscribe
- Subscribe
- Subscribe
- SPEHA621F0246
- 20 Jan 2021
- Subscribe
- 371
- Subscribe
- Subscribe
- Subscribe
- SPEHA621F0246
- 20 Jan 2021
- Subscribe
- 371
- Subscribe
- Subscribe
- Subscribe
- SPE4A718V2999
- 20 Sep 2018
- Subscribe
- 154
- Subscribe
- Subscribe
- Subscribe
- SPE4A418V047F
- 20 Aug 2018
- Subscribe
- 158
- Subscribe
- Subscribe
- Subscribe
- SPE4A718P3902
- 29 Dec 2017
- Subscribe
- 1174
- Subscribe
- Subscribe
- Subscribe
- SPE5EN15V0267
- 26 Sep 2015
- Subscribe
- 77
- Subscribe
- Subscribe
- Subscribe
- SPE5E715V4473
- 02 Jul 2015
- Subscribe
- 392
- Subscribe
- Subscribe
- Subscribe
- SPE5E714V3457
- 24 Apr 2014
- Subscribe
- 18
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5310-00-149-9116 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
