5310-00-088-0553

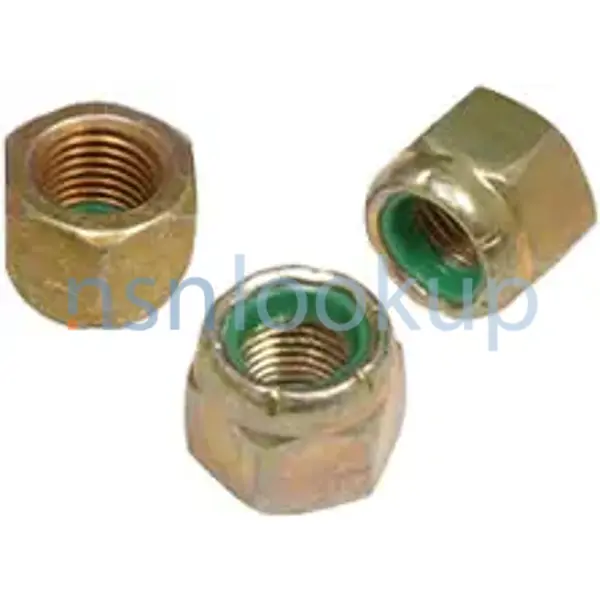

Hexagon Self-Locking Nut

5310000880553 000880553 H0698 55-242 SG4013SYMB0LJ 22-NE-054 2211675 MS21044N5 F52NE054 908999K1 8805718 190139 BM11359-07 870126 4-00560-005 853674-00 870126-00 10116548

A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
April 2025

NATO Update Count
97

NATO Data Quality

5310-00-088-0553 NUT,SELF-LOCKING,HEXAGON 5310000880553 000880553 1/2 — 5310-00-088-0553 Photo 1/2

ACTA Style A12 for 5310-00-088-0553 2/2 — NSN 5310-00-088-0553 (Identification) 2/2

Marketplace 5310-00-088-0553

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS21044N5 NUT,SELF-LOCKING,HEXAGON 1802 HD NS

Subscribe to View Vendor Details...

MS21044N5 NUT,SELF-LOCKING,HEXAGON 248 HD NS

AN363-524 NUT,SELF-LOCKING,HEXAGON 3 HD NS

Subscribe to View Vendor Details...

MS21044N5 NUT,SELF-LOCKING,HEXAGON 14719 HD NS

908999K1 NUT,SELF-LOCKING,HEXAGON 97 HD NS

Subscribe to View Vendor Details...

Updated 15 Days Ago

F52NE054 NUT 60 HD NS

Subscribe to View Vendor Details...

908999K1NUTLOCKINGM151 NUT,SELF-LOCKING,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS21044N5 NUT,SELF-LOCKING,HEXAGON 3531 HD NS

MS21044-N5 NUT,SELF-LOCKING,HEXAGON 212 HD NS

Subscribe to View Vendor Details...

5310-00-088-0553 NUT,5/16UNF,NYLOC 2700 HD NS

Subscribe to View Vendor Details...

MS21044N5 NUT,SELF-LOCKING,HEXAGON 42 HD NS

Subscribe to View Vendor Details...

MS21044N5 NUT,SELF-LOCKING,HEXAGON 90 HD NS

Subscribe to View Vendor Details...

MS21044-N5 NUT,SELF-LOCKING,HEXAGON 273 HD NS

MS21044N5 NUT,SELF-LOCKING,HEXAGON 348 HD NS

Subscribe to View Vendor Details...

1549159 NUT,SELF-LOCKING,HEXAGON 2700 HD NS

000880553.5310 NUT,SELF-LOCKING,HEXAGON 168 HD NS

Updated Every Day

190139 RQST NE

Updated Every Day

5310-00-088-0553 RQST NE

Updated Every Day

5310-00-088-0553 RQST

Updated Every Day

5310-00-088-0553 RQST NE

Restrictions 5310-00-088-0553

5310-00-088-0553 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-088-0553

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-088-0553

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

National Security Agency (DGXK)
Effective Date:: 1 Apr 2006
Former MOE Rule:: DKZ2; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G190)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G880)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJFHXHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Jul 2009

Lithuania (WI01)
Effective Date:: 1 Feb 2001

Poland (WP01)
Effective Date:: 1 Aug 2005

MOE Rule:: X002
Effective Date:: 1 Apr 1991

Brazil (YA01)
Effective Date:: 1 Dec 1999

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Jun 1996

Thailand (YY01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 May 2007

Approved Sources 5310-00-088-0553

Part Number
Manufacturer
Status
MS21044N5: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
H0698: 7J998 - Kratos Unmanned Aerial Systems, Inc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 6
2211675: FB459 - Embraer Aviation International (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
MS21044N5: A9271 - Goriziane Group Spa (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
F52NE054: 08928 - Abbott-Interfast Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
908999K1: 2A659 - Airmotive Carburetor (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
8805718: 19203 - Combat Capabilities Development (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
2211675: 001JK - Embraer S.A. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
MS21044N5: A0126 - Leonardo Spa Helicopters Division - (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
908999K1: 06848 - Honeywell International Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
190139: 73342 - Allison Transmission Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
BM11359-07: 19422 - Demarkus Corp Refrigeration (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
870126: 19203 - Combat Capabilities Development (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
4-00560-005: 03848 - Arma Div (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
F52NE054: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
2211675: S4956 - Embraer Empresa Brasileira De (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
853674-00: 32345 - Defense Reduction Agency (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
870126-00: 32345 - Defense Reduction Agency (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
MS21044N5: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
190139: 24617 - General Motors Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5310000880553: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
10116548: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
55-242: 27235 - Hardie-Tynes Co., Inc. (Obsolete); Advisory Reference; RNCC C RNVC 1 DAC 6
SG4013SYMB0LJ: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
22-NE-054: 72962 - Harvard Industries Inc (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 4

Datasheet 5310-00-088-0553

Characteristic
Specifications
FIIG: A021A0
Bearing Surface Finish [CSXL]: 125.0 Microinches
Bearing Surface Type [CRTM]: Chamfered Or Washer Faced
Countersink Angle [CRSQ]: 88.0 Degrees Nominal Nut
Material [MATT]: Steel Comp 1006 Nut Or Steel Comp 1008 Nut Or Steel Comp 1009 Nut Or Steel Comp 1010 Nut Or Steel Comp 1015 Nut Or Steel Comp 1018 Nut Or Steel Comp 1035 Nut Or Steel Comp 11L37 Nut Or Steel Comp 1213 Nut Or Steel Comp 12L14 Nut
Nominal Thread Size [CQJX]: 0.312 Inches
Nut Height [ADEA]: 0.271 Inches Minimum And 0.360 Inches Maximum
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque With Nonmetallic Insert
Lubrication [ABAJ]: Soluble Lubricant
Width Across Flats [ASDB]: 0.492 Inches Minimum And 0.502 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall Except Insert
Surface Treatment [SFTT]: Cadmium Nut And Chromate Nut
Temp Rating [AZKQ]: 250.0 Deg Fahrenheit Nominal
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Quantity Per Inch [CMLP]: 24
Thread Series [BZRR]: Unjf

Weapon Systems (WSDC) 5310-00-088-0553

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-088-0553

Last Stock Position:: 213500 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-088-0553

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Apr 2021: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2020: US Marine Corps (DM); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
Department of the Air Force (DF): F; R; Refer To Approved For Faa Use; APPROVED FOR FAA USE

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

CC: Other Aircraft Categories
Multi-Application Aviation Spares

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

K: Reserved

Operational Test:

: No Special Procedures

Similar Supply Items to 5310-00-088-0553

Freight Information 5310-00-088-0553

5310-00-088-0553 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-088-0553 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-088-0553 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-088-0553 is not classified as a special type of cargo when transported by water. 5310-00-088-0553 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-088-0553

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-088-0553 12 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A623FBGWV: 24 Aug 2023; Subscribe; 7; Subscribe; Subscribe
SPE4A623FBGWV: 24 Aug 2023; Subscribe; 7; Subscribe; Subscribe
SPE4A623FBA3W: 28 Jul 2023; Subscribe; 7; Subscribe; Subscribe
SPE5E319V3232: 06 Dec 2018; Subscribe; 527; Subscribe; Subscribe
SPE5E319V1957: 13 Nov 2018; Subscribe; 862; Subscribe; Subscribe
SPE5E319V1237: 31 Oct 2018; Subscribe; 575; Subscribe; Subscribe
SPE5E319V1017: 25 Oct 2018; Subscribe; 994; Subscribe; Subscribe
SPE5E815V5502: 22 May 2015; Subscribe; 5; Subscribe; Subscribe
SPE5E415V6212P00003: 08 May 2015; Subscribe; 2; Subscribe; Subscribe
SPE5E415V2812: 22 Jan 2015; Subscribe; 205; Subscribe; Subscribe
SPE5E814V6539: 19 Jun 2014; Subscribe; 181; Subscribe; Subscribe
SPE5E814V2339P00001: 28 Jan 2014; Subscribe; 74; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-088-0553 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-088-0553

Related Documents 5310-00-088-0553 5+ Documents (More...)

Restrictions 5310-00-088-0553

Import and Export 5310-00-088-0553

End Users 5310-00-088-0553

Approved Sources 5310-00-088-0553

Datasheet 5310-00-088-0553

Weapon Systems (WSDC) 5310-00-088-0553

DLA Procurement Analysis 5310-00-088-0553

Management Data 5310-00-088-0553

Army

Air Force

Navy

Marine Corps

Similar Supply Items to 5310-00-088-0553

Freight Information 5310-00-088-0553

Packaging Data 5310-00-088-0553

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-088-0553 12 Records

Contracting Technical Data File (CTDF) 5310-00-088-0553 February 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
