5310-00-088-0552

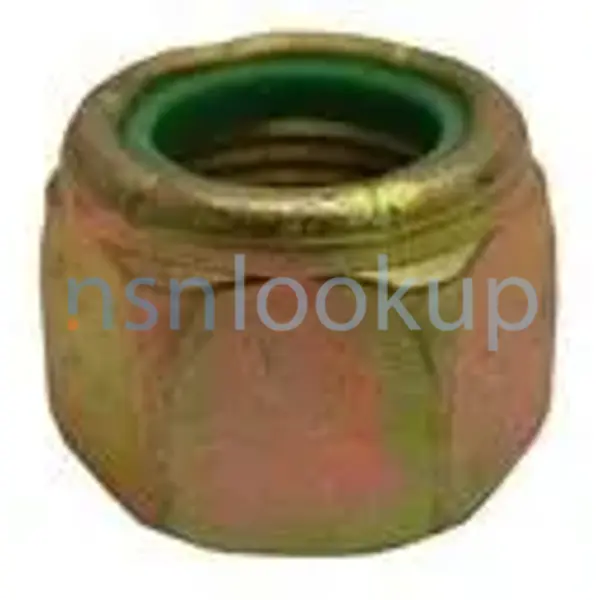

Hexagon Self-Locking Nut

5310000880552 000880552 50NE070 907784 NAS1021N7 52NE070 F52NE070U 938.07.17.608 5310-088-0552 18D07 F52NE-070U 251-013 MS21044N7 AN365-720 5310PL0145347

A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
75

NATO Data Quality

5310-00-088-0552 NUT,SELF-LOCKING,HEXAGON 5310000880552 000880552 1/2 — 5310-00-088-0552 Photo 1/2

ACTA Style A12 for 5310-00-088-0552 2/2 — NSN 5310-00-088-0552 (Identification) 2/2

Marketplace 5310-00-088-0552

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS21044N7 NUT,SELF-LOCKING,HEXAGON 257 EA NS

Subscribe to View Vendor Details...

MS21044N7 NUT,SELF-LOCKING,HEXAGON 99 EA NS

Subscribe to View Vendor Details...

MS21044N7 NUT,SELF-LOCKING,HEXAGON 381 EA NS

Subscribe to View Vendor Details...

5310-00-088-0552 NUT,SELF-LOCKING,HEXAGON 32 EA NS

Subscribe to View Vendor Details...

MS21044N7 NUT,SELF-LOCKING,HEXAGON 8 EA NS

52NE-070 NUT,SELF-LOCKING,HEXAGON 8 EA NS

Subscribe to View Vendor Details...

MS21044N7 NUT,SELF-LOCKING,HEXAGON 79 EA NS

F52NE-070U NUT,SELF-LOCKING,HEXAGON 1568 EA NS

Subscribe to View Vendor Details...

MS21044N7 NUT,SELF-LOCKING,HEXAGON RQST NS

Subscribe to View Vendor Details...

AN365-720 NUT,SELF-LOCKING,HEXAGON 900 EA NS

Subscribe to View Vendor Details...

MS21044N7 NUT,SELF-LOCKING,HEXAGON 2859 EA NS

52NE070 NUT,SELF-LOCKING,HEXAGON 50 EA NS

Subscribe to View Vendor Details...

MS21044N7 NUT,SELF-LOCKING,HEXAGON 97 EA NS

Subscribe to View Vendor Details...

F52NE-070U NUT,SELF-LOCKING,HEXAGON 49 EA NS

NAS1021N7 NUT,SELF-LOCKING,HEXAGON 1094 EA NS

MS21044N7 NUT,SELF-LOCKING,HEXAGON 3282 EA NS

Subscribe to View Vendor Details...

MS21044N7 NUT,SELF-LOCKING,HEXAGON 22 EA NS

Updated Every Day

5310-00-088-0552 RQST NE

Updated Every Day

5310-00-088-0552 RQST

Updated Every Day

5310-00-088-0552 RQST NE

Restrictions 5310-00-088-0552

5310-00-088-0552 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5310-00-088-0552

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-088-0552

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ
Supplementary Receivers:: SU; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJBHXHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Feb 2001

Slovenia (WL01)
Effective Date:: 1 Apr 2006

Poland (WP01)
Effective Date:: 1 Aug 2005

Brazil (YA01)
Effective Date:: 1 Dec 1999

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Aug 1997

Thailand (YY01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Jan 2014

Approved Sources 5310-00-088-0552

Part Number
Manufacturer
Status
MS21044N7: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
50NE070: F6137 - Safran Landing Systems (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
907784: A274N - Scandinavian Manufacturing Scama Ab (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 3
F52NE070U: 08928 - Abbott-Interfast Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
938.07.17.608: S4080 - Pilatus Aircraft Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
MS21044N7: A0126 - Leonardo Spa Helicopters Division - (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
5310-088-0552: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
18D07: 12603 - Clark Equipment Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
F52NE-070U: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5310000880552: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
251-013: 72741 - Dorman Products, Inc. (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MS21044N7: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AN365-720: 88044 - Aeronautical Standards Group (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5310PL0145347: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
NAS1021N7: 80205 - National Aerospace Standards (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
52NE070: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 5310-00-088-0552

Characteristic
Specifications
FIIG: A021A0
Bearing Surface Finish [CSXL]: 125.0 Microinches
Bearing Surface Type [CRTM]: Chamfered Or Washer Faced
Countersink Angle [CRSQ]: 88.0 Degrees Nominal Nut
Criticality Code Justification [CRTL]: Feat
Material [MATT]: Steel Comp 1006 Nut Or Steel Comp 1008 Nut Or Steel Comp 1009 Nut Or Steel Comp 1010 Nut Or Steel Comp 1015 Nut Or Steel Comp 1018 Nut Or Steel Comp 1035 Nut Or Steel Comp 11L37 Nut Or Steel Comp 1213 Nut Or Steel Comp 12L14 Nut
Nominal Thread Size [CQJX]: 0.438 Inches
Nut Height [ADEA]: 0.435 Inches Minimum And 0.469 Inches Maximum
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque With Nonmetallic Insert
Lubrication [ABAJ]: Soluble Lubricant
Special Features [FEAT]: Weapon System Essential
Width Across Flats [ASDB]: 0.679 Inches Minimum And 0.690 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall Except Insert
Surface Treatment [SFTT]: Cadmium Nut And Chromate Nut
Temp Rating [AZKQ]: 250.0 Deg Fahrenheit Nominal
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Quantity Per Inch [CMLP]: 20
Thread Series [BZRR]: Unjf

Weapon Systems (WSDC) 5310-00-088-0552

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-088-0552

Last Stock Position:: 20570 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-088-0552

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: US Coast Guard (GP); EA; Subscribe
Oct 2021: Department of the Air Force (DF); EA; Subscribe
Oct 2020: Department of the Air Force (DF); EA; Subscribe
Feb 2020: Department of the Army (DA); EA; Subscribe

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-019-2063
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-050-3356
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-050-3357
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-188-1976
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-274-8923
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-275-2089
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-285-5632
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-596-7969
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5310-00-752-1956

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

CC: Other Aircraft Categories
Multi-Application Aviation Spares

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

K: Reserved

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5310-00-088-0552

5310-99-464-1164 5310-99-105-5300 5310-66-139-6386 5310-14-572-9383 5310-99-137-7019 5310-14-010-0678 5310-15-181-3119 5310-14-553-7547 5310-99-795-2566 5310-99-887-3853 5310-33-200-6844 5310-15-008-0903 5310-14-515-2624 5310-27-015-8542 5310-13-117-8192 5310-15-111-8076 5310-15-111-0803 5310-14-254-5116

Freight Information 5310-00-088-0552

5310-00-088-0552 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-088-0552 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-088-0552 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-088-0552 is not classified as a special type of cargo when transported by water. 5310-00-088-0552 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-088-0552

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: --; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-088-0552 42 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPEHA623F1976: 29 Sep 2023; Subscribe; 1878; Subscribe; Subscribe
SPEHA623F1976: 29 Sep 2023; Subscribe; 1878; Subscribe; Subscribe
SPEHA623F1664: 20 Aug 2023; Subscribe; 1610; Subscribe; Subscribe
SPEHA623F1664: 20 Aug 2023; Subscribe; 1610; Subscribe; Subscribe
SPEHA623F1516: 14 Jul 2023; Subscribe; 112; Subscribe; Subscribe
SPEHA623F1516: 14 Jul 2023; Subscribe; 112; Subscribe; Subscribe
SPEHA623F1405: 16 Jun 2023; Subscribe; 17; Subscribe; Subscribe
SPEHA623F1405: 16 Jun 2023; Subscribe; 17; Subscribe; Subscribe
SPEHA623F1212: 19 May 2023; Subscribe; 88; Subscribe; Subscribe
SPEHA623F1212: 19 May 2023; Subscribe; 88; Subscribe; Subscribe
SPEHA623F0961: 20 Mar 2023; Subscribe; 328; Subscribe; Subscribe
SPEHA623F0961: 20 Mar 2023; Subscribe; 328; Subscribe; Subscribe
SPEHA623F0701: 17 Feb 2023; Subscribe; 24; Subscribe; Subscribe
SPEHA623F0701: 17 Feb 2023; Subscribe; 24; Subscribe; Subscribe
SPEHA622F0973: 22 Jun 2022; Subscribe; 1062; Subscribe; Subscribe
SPEHA622F0973: 22 Jun 2022; Subscribe; 1062; Subscribe; Subscribe
SPEHA622F0816: 15 May 2022; Subscribe; 450; Subscribe; Subscribe
SPEHA622F0816: 15 May 2022; Subscribe; 450; Subscribe; Subscribe
SPEHA622F0640: 20 Mar 2022; Subscribe; 568; Subscribe; Subscribe
SPEHA622F0640: 20 Mar 2022; Subscribe; 568; Subscribe; Subscribe
SPEHA622F0528: 17 Feb 2022; Subscribe; 673; Subscribe; Subscribe
SPEHA622F0528: 17 Feb 2022; Subscribe; 673; Subscribe; Subscribe
SPEHA622F0393: 17 Dec 2021; Subscribe; 499; Subscribe; Subscribe
SPEHA622F0393: 17 Dec 2021; Subscribe; 499; Subscribe; Subscribe
SPEHA622F0240: 18 Nov 2021; Subscribe; 211; Subscribe; Subscribe
SPEHA622F0240: 18 Nov 2021; Subscribe; 211; Subscribe; Subscribe
SPEHA622F0130: 15 Oct 2021; Subscribe; 342; Subscribe; Subscribe
SPEHA622F0130: 15 Oct 2021; Subscribe; 342; Subscribe; Subscribe
SPEHA621F0856: 24 Sep 2021; Subscribe; 2019; Subscribe; Subscribe
SPEHA621F0856: 24 Sep 2021; Subscribe; 2019; Subscribe; Subscribe
SPEHA621F0623: 15 Jul 2021; Subscribe; 3456; Subscribe; Subscribe
SPEHA621F0623: 15 Jul 2021; Subscribe; 3456; Subscribe; Subscribe
SPE4A718V1673: 19 Apr 2018; Subscribe; 413; Subscribe; Subscribe
SPE4A718V1362: 15 Mar 2018; Subscribe; 2204; Subscribe; Subscribe
SPE4A717V1745: 18 Jul 2017; Subscribe; 5682; Subscribe; Subscribe
SPE4A717V1448: 18 May 2017; Subscribe; 7000; Subscribe; Subscribe
SPE5E817P1658: 08 Feb 2017; Subscribe; 5725; Subscribe; Subscribe
SPE5E817P0286: 18 Oct 2016; Subscribe; 7843; Subscribe; Subscribe
SPE5E816V5687: 15 Jun 2016; Subscribe; 663; Subscribe; Subscribe
SPE5E816M0289P00001: 20 Oct 2015; Subscribe; 4344; Subscribe; Subscribe
SPE5E815M5414P00001: 22 Sep 2015; Subscribe; 6897; Subscribe; Subscribe
SPE5E815V6012: 15 Jun 2015; Subscribe; 2608; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-088-0552 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-088-0552

Related Documents 5310-00-088-0552 5+ Documents (More...)

Restrictions 5310-00-088-0552

Import and Export 5310-00-088-0552

End Users 5310-00-088-0552

Approved Sources 5310-00-088-0552

Datasheet 5310-00-088-0552

Weapon Systems (WSDC) 5310-00-088-0552

DLA Procurement Analysis 5310-00-088-0552

Management Data 5310-00-088-0552

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5310-00-088-0552

Freight Information 5310-00-088-0552

Packaging Data 5310-00-088-0552

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-088-0552 42 Records

Contracting Technical Data File (CTDF) 5310-00-088-0552 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
