5310-00-086-6580
Key Washer
5310000866580 000866580 4179326 MS25081C6 0740719 10116544
A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer. View more Key Washer
November 2023
32
Marketplace 5310-00-086-6580
Request a Quotation from participating marketplace vendors
Related Documents 5310-00-086-6580 5+ Documents (More...)

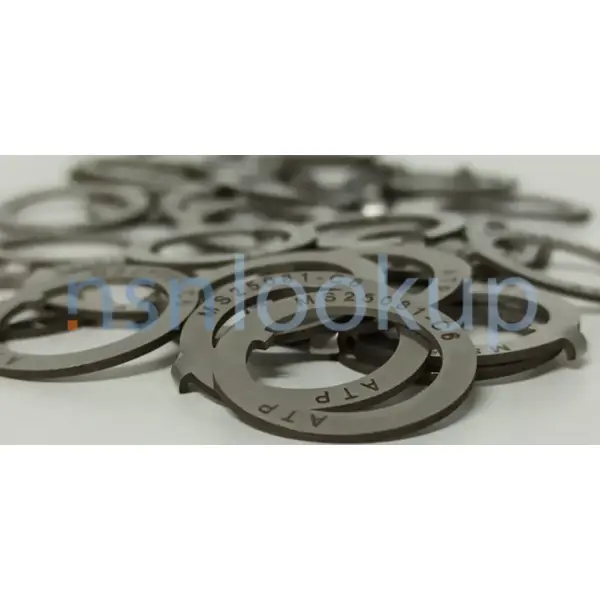

Photo 1/2 NSN 5310-00-086-6580 (Identification) 2/2 - - 1.
MS25081C6 WASHER,KEY 12 EA NS Request Quotation Updated Every Day 5310-00-086-6580 RQST NE Updated Every
Restrictions 5310-00-086-6580
5310-00-086-6580 is a Key Washer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5310-00-086-6580
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5310-00-086-6580
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Finland (WF01)
- Effective Date:
- 1 Jul 2009
- Poland (WP01)
- Effective Date:
- 1 Jun 2006
- Brazil (YA01)
- Effective Date:
- 1 May 2012
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Sep 2005
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Sep 2006
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 May 2001
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Mar 2002
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5310-00-086-6580
- Part Number
- Manufacturer
- Status
- MS25081C6
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- 4179326
- 75Q65 - Oshkosh Defense Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 0740719
- S3002 - General Dynamics European, (Active)
- Secondary Buy
- Secondary Buy
- 10116544
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5310-00-086-6580
- Characteristic
- Specifications
- FIIG
- Specifications
- A022B0
- Distance From Centerline To Inside Of Prebent Key [ABLS]
- 0.430 Inches Minimum And 0.446 Inches Maximum
- Distance From Centerline To Top Of Internal Key [ABLQ]
- 0.272 Inches Nominal
- External Prebent Key Length [ABKY]
- 0.050 Inches Nominal
- External Prebent Key Width [ABLF]
- 0.110 Inches Maximum
- Hole Diameter [AAUB]
- 0.652 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-S-698 Fed Spec 1St Material Response Overall Or Qq-S-698 Fed Spec 2Nd Material Response Overall Or Qq-S-698 Fed Spec 3Rd Material Response Overall Or Qq-S-698 Fed Spec 4Th Material Response Overall Or Qq-S-698 Fed Spec 5Th Material Response Overall Or Aisi Assn Std 6Th Material Response Overall
- Material Thickness [ABPX]
- 0.037 Inches Minimum And 0.043 Inches Maximum
- Outside Diameter [ABKV]
- 0.859 Inches Minimum And 0.891 Inches Maximum
- Material [MATT]
- Steel Comp 1008 Or Steel Comp 1009 Or Steel Comp 1015 Or Steel Comp 1018 Or Steel Comp 1020 Or Steel Comp 304 Overall
- Internal Straight Key Width [ABLJ]
- 0.059 Inches Minimum And 0.065 Inches Maximum
- Overall Distance Including Keys [ABLX]
- 0.891 Inches Minimum And 0.923 Inches Maximum
- Style Designator [STYL]
- Key
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
Weapon Systems (WSDC) 5310-00-086-6580
DLA Procurement Analysis 5310-00-086-6580
- Last Stock Position:
- 4903 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5310-00-086-6580
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Apr 2023
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- R
- Refer To Approved For Faa Use
- APPROVED FOR FAA USE
- R
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5310-00-086-6580
Freight Information 5310-00-086-6580
5310-00-086-6580 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 194160. A Sub NMFC of X. It has a NMFC Description of WASHER OR GASKETS, IRON OR STEEL,. 5310-00-086-6580 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55210 which rates the freight between FCL and LCL. 5310-00-086-6580 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5310-00-086-6580 is not classified as a special type of cargo when transported by water. 5310-00-086-6580 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
