5310-00-062-4954

Hexagon Self-Locking Nut

5310000624954 000624954 525-633-90001 424830-2 MS21045-8 H55-8CW S862TN5-820 YE3184 F1801-080 F52MXE-820 27FH-820 5310PL0712493

A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP. View more Hexagon Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
June 2025

NATO Update Count
73

NATO Data Quality

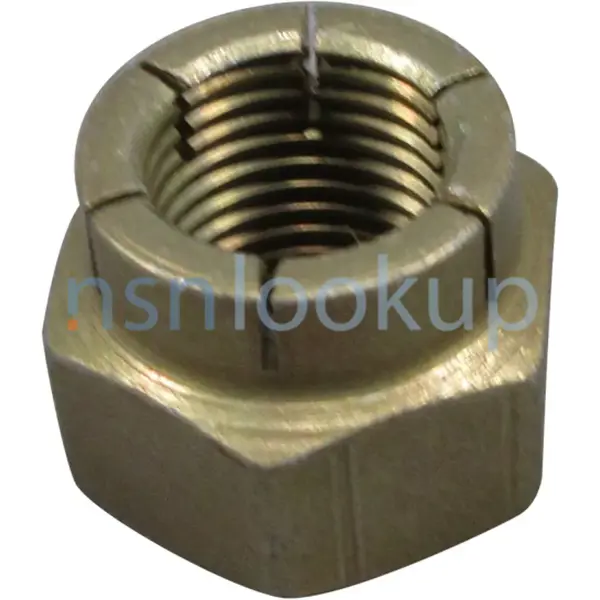

5310-00-062-4954 NUT,SELF-LOCKING,HEXAGON 5310000624954 000624954 1/2 — 5310-00-062-4954 Photo 1/2

ACTA Style A12 for 5310-00-062-4954 2/2 — NSN 5310-00-062-4954 (Identification) 2/2

Marketplace 5310-00-062-4954

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS21045-8 NUT,SELF-LOCKING,HEXAGON 707 HD NS

Subscribe to View Vendor Details...

5310-00-062-4954 NUT,SELF-LOCKING,HEXAGON 700 HD NS

Subscribe to View Vendor Details...

MS21045-8 NUT,SELF-LOCKING,HEXAGON 100 HD NS

F52MXED-0820 NUT,SELF-LOCKING,HEXAGON 200 HD NS

F52MXE-820 NUT,SELF-LOCKING,HEXAGON 200 HD NS

Subscribe to View Vendor Details...

MS21045-8 NUT,SELF-LOCKING,HEXAGON 15 HD NS

Subscribe to View Vendor Details...

F1801-080 NUT,SELF-LOCKING,HEXAGON 116 HD NS

Subscribe to View Vendor Details...

F1801-080 NUT 253 HD NS

F52MXED-0820 NUT 68 HD NS

MS21045-8 NUT 1 HD NS

MS21045-8 NUT 90 HD NS

Subscribe to View Vendor Details...

NUTLOCKINGM151 NUT,SELF-LOCKING,HEXAGON RQST NS

Subscribe to View Vendor Details...

MS21045-8 NUT,SELF-LOCKING,HEXAGON 2504 HD NS

Subscribe to View Vendor Details...

5310-00-062-4954 NUT, 1/2 UNF 63 HD NS

Subscribe to View Vendor Details...

MS21045-8 NUT,SELF-LOCKING,HEXAGON 200 HD NS

Subscribe to View Vendor Details...

MS21045-8 NUT,SELF-LOCKING,HEXAGON 9192 HD NS

Subscribe to View Vendor Details...

S862TN5-820 NUT,SELF-LOCKING,HEXAGON 300 HD NS

F1801-080 NUT,SELF-LOCKING,HEXAGON 300 HD NS

MS21045-8 NUT,SELF-LOCKING,HEXAGON 300 HD NS

Subscribe to View Vendor Details...

1549159 NUT,SELF-LOCKING,HEXAGON 63 HD NS

000624954.5310 NUT,SELF-LOCKING,HEXAGON 4725 HD NS

Updated Every Day

5310-00-062-4954 RQST NE

Updated Every Day

5310-00-062-4954 RQST

Updated Every Day

5310-00-062-4954 RQST NE

Restrictions 5310-00-062-4954

5310-00-062-4954 is a Hexagon Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5310-00-062-4954

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-062-4954

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G180)
Effective Date:: 1 Sep 1993; AMC 0 AMSC 0 AAC B

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G930)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKE; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Feb 2001

Poland (WP01)
Effective Date:: 1 Jun 2006

Brazil (YA01)
Effective Date:: 1 Dec 1999

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Dec 1995

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Jan 2014

Approved Sources 5310-00-062-4954

Part Number
Manufacturer
Status
MS21045-8: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
H55-8CW: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
S862TN5-820: 26512 - Northrop Grumman Systems Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
YE3184: 75497 - Lamson And Sessions Co The (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
H55-8CW: 15653 - Howmet Global Fastening Systems Inc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
F1801-080: 019L2 - Esna, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
F52MXE-820: 019L2 - Esna, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
27FH-820: 56878 - Sps Technologies, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
H55-8CW: 75237 - Howmet Global Fastening Systems Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
F1801-080: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
F52MXE-820: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
MS21045-8: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5310PL0712493: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5310000624954: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
525-633-90001: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
424830-2: 80020 - Naval Air Warfare Center Aircraft (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 5310-00-062-4954

Characteristic
Specifications
FIIG: A021A0
Bearing Surface Finish [CSXL]: 125.0 Microinches
Bearing Surface Type [CRTM]: Chamfered
Countersink Angle [CRSQ]: 88.0 Degrees Minimum Nut
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.500 Inches
Nut Height [ADEA]: 0.575 Inches Minimum And 0.610 Inches Maximum
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Lubrication [ABAJ]: Soluble Lubricant
Width Across Flats [ASDB]: 0.741 Inches Minimum And 0.752 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416,Type 2,Class 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall
Temp Rating [AZKQ]: 450.0 Deg Fahrenheit Maximum
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Quantity Per Inch [CMLP]: 20
Thread Series [BZRR]: Unjf

Weapon Systems (WSDC) 5310-00-062-4954

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-062-4954

Last Stock Position:: 111500 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-062-4954

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); HD; Subscribe; 1
Oct 2021: Department of the Air Force (DF); HD; Subscribe; 1
Oct 2020: Department of the Air Force (DF); HD; Subscribe; 1
Feb 2020: Department of the Army (DA); HD; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

BJ: Rotary Wing Aircraft
AH-64 Airframe

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

K: Reserved

Operational Test:

: No Special Procedures

Similar Supply Items to 5310-00-062-4954

Freight Information 5310-00-062-4954

5310-00-062-4954 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-062-4954 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-062-4954 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-062-4954 is not classified as a special type of cargo when transported by water. 5310-00-062-4954 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-062-4954

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Procurement History 5310-00-062-4954 9 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A723F3941: 25 Jan 2023; Subscribe; 588; Subscribe; Subscribe
SPE4A723F3941: 25 Jan 2023; Subscribe; 588; Subscribe; Subscribe
SPE4A722F3207: 29 Nov 2021; Subscribe; 147; Subscribe; Subscribe
SPE4A722F3207: 29 Nov 2021; Subscribe; 147; Subscribe; Subscribe
SPE4A718V2717: 27 Aug 2018; Subscribe; 52; Subscribe; Subscribe
SPE4A718V2407: 23 Jul 2018; Subscribe; 418; Subscribe; Subscribe
SPE4A718V1084: 14 Feb 2018; Subscribe; 110; Subscribe; Subscribe
SPE4A417V5500: 24 Apr 2017; Subscribe; 376; Subscribe; Subscribe
SPM5EC13M0544: 29 Jul 2013; Subscribe; 481; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-062-4954 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-062-4954

Related Documents 5310-00-062-4954 5+ Documents (More...)

Restrictions 5310-00-062-4954

Import and Export 5310-00-062-4954

End Users 5310-00-062-4954

Approved Sources 5310-00-062-4954

Datasheet 5310-00-062-4954

Weapon Systems (WSDC) 5310-00-062-4954

DLA Procurement Analysis 5310-00-062-4954

Management Data 5310-00-062-4954

Army

Navy

Marine Corps

Similar Supply Items to 5310-00-062-4954

Freight Information 5310-00-062-4954

Packaging Data 5310-00-062-4954

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-062-4954 9 Records

Contracting Technical Data File (CTDF) 5310-00-062-4954 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
