5310-00-058-1823

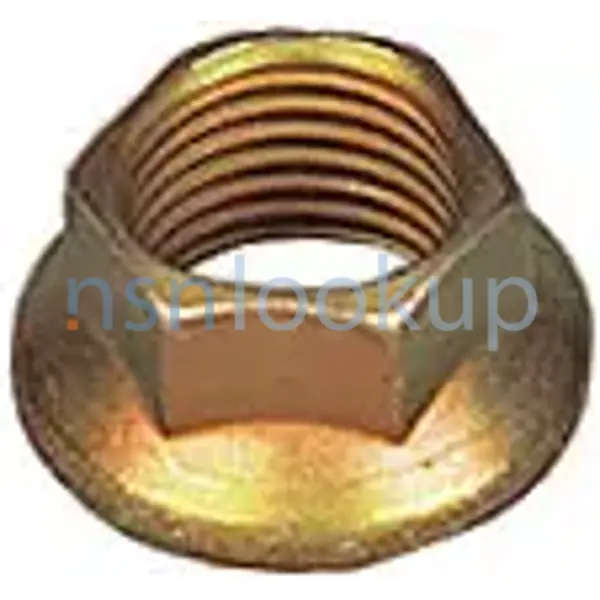

Hexagon Extended Washer Self-Locking Nut

5310000581823 000581823 RM22LH1660-26 MS 21042-02 2 0040-322 3205-0118-051 3204-0118-051 MS21042-02 H14L02CW GN510B256 333-1471-010 LF52LH3324-26 5310-058-1823 4138-0020 FN12A-26 5310PL0975660 10186988

A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member. View more Hexagon Extended Washer Self-Locking Nut

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
September 2025

NATO Update Count
78

NATO Data Quality

5310-00-058-1823 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 5310000581823 000581823 1/2 — 5310-00-058-1823 Photo 1/2

ACTA Style A294 for 5310-00-058-1823 2/2 — NSN 5310-00-058-1823 (Identification) 2/2

Marketplace 5310-00-058-1823

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS21042-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 10 EA NS

Subscribe to View Vendor Details...

MS21042-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 10 EA NS

Subscribe to View Vendor Details...

MS21042-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 15 EA NS

Subscribe to View Vendor Details...

MS21042-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 200 EA NS

Subscribe to View Vendor Details...

DSA500-69-M-X767 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 15 EA NS

MS21042-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 50 EA NS

Subscribe to View Vendor Details...

MS21042-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 457 EA NS

Subscribe to View Vendor Details...

MS21042-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON RQST NS

Subscribe to View Vendor Details...

GN510B256 NUT 1 EA NS

H14L02CW NUT 4 EA NS

MS21042-02 NUT 38 EA NS

Subscribe to View Vendor Details...

GN510B256 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 21 EA NS

Subscribe to View Vendor Details...

MS21042-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 850 EA NS

Subscribe to View Vendor Details...

MS21042-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 25 EA NS

Subscribe to View Vendor Details...

MS2104202 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 25 EA NS

MS21042-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 130 EA NS

Subscribe to View Vendor Details...

MS21042-02 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 806 EA NS

Subscribe to View Vendor Details...

FN12A-26 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 70 EA NS

GN510B256 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 70 EA NS

5310-00-058-1823 NUT,SELF-LOCKING,EXTENDED WASHER,HEXAGON 104 EA NS

Updated Every Day

5310-00-058-1823 RQST NE

Updated Every Day

5310-00-058-1823 RQST

Updated Every Day

5310-00-058-1823 RQST NE

Restrictions 5310-00-058-1823

5310-00-058-1823 is a Hexagon Extended Washer Self-Locking Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-058-1823

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-058-1823

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G180)
Effective Date:: 1 Sep 1993; AMC 0 AMSC 0 AAC B

NASA (G190)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJBHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Sep 2009

Lithuania (WI01)
Effective Date:: 1 Nov 2008

Poland (WP01)
Effective Date:: 1 Jun 2005

Brazil (YA01)
Effective Date:: 1 Dec 1999

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Aug 2016

Argentina (YF01)
Effective Date:: 1 Jan 2015

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 2003

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Dec 1995

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5310-00-058-1823

Part Number
Manufacturer
Status
MS21042-02: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
MS 21042-02: 0291H - Rosomak S.A (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
2 0040-322: AC90N - Bae Systems Hagglunds Aktiebolag (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
3205-0118-051: K0656 - Bae Systems (Operations) Limited (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
3204-0118-051: K0656 - Bae Systems (Operations) Limited (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 2
H14L02CW: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
MS21042-02: 98897 - Lockheed Martin Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC E
MS21042-02: 78286 - Sikorsky Aircraft Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC E
H14L02CW: F6033 - Tecnotec Sarl (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
GN510B256: 26512 - Northrop Grumman Systems Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
333-1471-010: 95105 - Rockwell Collins, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
LF52LH3324-26: 72962 - Harvard Industries Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5310-058-1823: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
5310000581823: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
H14L02CW: F7652 - Klx Aerospace Solutions Ii Sas (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
4138-0020: 13467 - Associated Industries A Div Of (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
2 0040-322: S3465 - Bae Systems Hagglunds Ab (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
FN12A-26: 56878 - Sps Technologies, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
H14L02CW: 75237 - Howmet Global Fastening Systems Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
H14L02CW: 15653 - Howmet Global Fastening Systems Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MS21042-02: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
5310PL0975660: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
10186988: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
RM22LH1660-26: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
RM22LH1660-26: 019L2 - Esna, Llc (Active); Transferred; RNCC E RNVC 8 DAC 5

Datasheet 5310-00-058-1823

Characteristic
Specifications
FIIG: A021A0
End Item Identification [AGAV]: W/S:Support Equipment, B-1 Aircraft; Test Set, Arm-155/156; Test Consoles, Mini-Sace; Trainer, B-1B Aircraft; Engine, Aircraft Tf33-Pw-102 (C-135E, Ec-135H/K/P); Missile, Advance Medium Range Air-To-Air (Amraam)/Aim120a; Fire Control System, Missile Mk 74 (Fcs); Aircraft, (Ac-130H, Mc-130H, Ec-130E, Hc-130S; Guided Missile Launching System, Mk 26 (Gmls); Intermediate Forward Test Equipment (Ifte) System
Hardness Rating [CQFM]: 49.0 Rockwell C Maximum
Material [MATT]: Steel Overall
Nominal Thread Size [CQJX]: 0.086 Inches
Nut Style [ACTA]: Hexagon
Locking Feature [AAUM]: Prevailing Torque All Metal Design
Lubrication [ABAJ]: Soluble Lubricant
Overall Height [ABKW]: 0.080 Inches Minimum And 0.100 Inches Maximum
Thread Quantity Per Inch [CMLP]: 56
Thread Series [BZRR]: Unjc
Washer Outside Diameter [AAVX]: 0.167 Inches Maximum
Washer Thickness [ADEM]: 0.010 Inches Minimum
Width Across Flats [ASDB]: 0.122 Inches Minimum And 0.127 Inches Maximum
Surface Treatment Document And Classification [STDC]: Qq-P-416 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Cadmium Overall
Temp Rating [AZKQ]: 450.0 Deg Fahrenheit Nominal
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand

Weapon Systems (WSDC) 5310-00-058-1823

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5310-00-058-1823

Last Stock Position:: 12342 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-058-1823

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); EA; Subscribe
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe
Oct 2019: Department of the Air Force (DF); EA; Subscribe

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

CC: Other Aircraft Categories
Multi-Application Aviation Spares

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

Similar Supply Items to 5310-00-058-1823

Freight Information 5310-00-058-1823

5310-00-058-1823 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5310-00-058-1823 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5310-00-058-1823 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5310-00-058-1823 is not classified as a special type of cargo when transported by water. 5310-00-058-1823 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5310-00-058-1823

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: --; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5310-00-058-1823 2 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE5E819PQ021: 19 Dec 2018; Subscribe; 955; Subscribe; Subscribe
SPE5E714V4638: 19 Jun 2014; Subscribe; 884; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5310-00-058-1823 February 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5310-00-058-1823

Related Documents 5310-00-058-1823 5+ Documents (More...)

Restrictions 5310-00-058-1823

Import and Export 5310-00-058-1823

End Users 5310-00-058-1823

Approved Sources 5310-00-058-1823

Datasheet 5310-00-058-1823

Weapon Systems (WSDC) 5310-00-058-1823

DLA Procurement Analysis 5310-00-058-1823

Management Data 5310-00-058-1823

Army

Navy

Marine Corps

Similar Supply Items to 5310-00-058-1823

Freight Information 5310-00-058-1823

Packaging Data 5310-00-058-1823

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5310-00-058-1823 2 Records

Contracting Technical Data File (CTDF) 5310-00-058-1823 February 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
