Premium Information is available for this item - Upgrade for $1 a day

5310-00-037-9446

Square Concave Nut

5310000379446 000379446 365810

A square nut having a concave face and a concave or slotted top. View more Square Concave Nut

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
May 2023

NATO Update Count
4

NATO Data Quality

ACTA Style A5 for 5310-00-037-9446 1/1 — NSN 5310-00-037-9446 (Identification) 1/1

Marketplace 5310-00-037-9446

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

365810 NUT,CONCAVE,SQUARE 6071 EA NS

Subscribe to View Vendor Details...

365810 NUT,CONCAVE,SQUARE 10 EA NS

Subscribe to View Vendor Details...

365810 NUT,CONCAVE,SQUARE 2 EA NS

FedMall

Updated Every 15 Minutes

5310-00-037-9446 BUY NE FedMall

Updated Every Day

5310-00-037-9446 RQST NE

Updated Every Day

5310-00-037-9446 RQST

Updated Every Day

5310-00-037-9446 RQST NE

Related Documents 5310-00-037-9446 5+ Documents (More...)

https//www.nsnlookup.com
/fsg-53/fsc-5310/us

5310-00-037-9446 Square Concave Nut 5310000379446 000379446

Day 5310-00-037-9446 RQST NE Updated Every Day 5310-00-037-9446 RQST Updated Every Day 5310-00-037-9446
/fsc-5310/us 5310-00-037-9446 Square Concave Nut 5310000379446000379446 365810 A square nut having a
000379446 112-5291 5310-15-117-0467 Related to 5310-00-414-3280 5310-27-007-7754 5310-14-372-5000 5310000379446

https//www.nsnlookup.com
/fsg-53/fsc-5310/fr

5310-14-372-5000 Square Concave Nut 5310143725000 143725000

//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-037-9446 Square Concave Nut 5310000379446 000379446 Vendor
Square Concave Nut 5310143725000143725000 000379446 112-5291 5310-15-117-0467 5310-00-896-6809 5310-
01-288-1254 007-7754 5310-14-372-5000 5310000379446 000379446 112-5291 5310-15-117-0467 Related https

https//www.nsnlookup.com
/fsg-53/fsc-5310/it

5310-15-117-0467 Square Concave Nut 5310151170467 151170467

000379446 112-5291 5310-15-117-0467 5310 -00-896-6809 5310-01-288-1254 007-7754 5310-14-372-5000 5310000379446
000379446 112-5291 5310-15-117-0467 https//www.nsnlookup.com /fsg-53/fsc-5310/us 5310-00-037-9446 Square
Concave Nut 5310000379446 000379446 53/fsc-5310/fr 5310-14-372-5000 Square Concave Nut 5310143725000

https//www.nsnlookup.com
/fsg-53/fsc-5310/tr

5310-27-007-7754 Square Concave Nut 5310270077754 270077754

Concave Nut 5310270077754270077754 Square Concave Nut 5310008966809 008966809 Square Concave Nut 5310000379446
000379446 112-5291 5310-15-117-0467 Related to 5310-27-007-77545310-27-007-7754 5310 https//www.nsnlookup.com
Square Concave Nut 5310000379446 000379446 5310-14-372-5000 5310000379446 000379446 112-5291 5310

https//www.nsnlookup.com
/fsg-53/fsc-5310/kr

5310-37-507-0856 Square Concave Nut 5310375070856 375070856

www.nsnlookup.com /fsg-53/fsc-5310/fr 5310-14-372-5000 Square Concave Nut 5310143725000 143725000 5310000379446
000379446 007-7754 5310-14-372-5000 https//www.nsnlookup.com /fsg-53/fsc-5310/kr 5310-37-507-0856 Square
Concave Nut 53103750708563750708565310-37-507-0856 5310/us 5310-00-037-9446 Square Concave Nut 5310000379446

Restrictions 5310-00-037-9446

5310-00-037-9446 is a Square Concave Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5310-00-037-9446

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5310-00-037-9446

US Navy (N9BZ)
Effective Date:: 1 Mar 2014
Supplementary Collaborators:: HX; AMC 5 AMSC H IMC Z IMCACTY GH

United States of America (ZZ)

Approved Sources 5310-00-037-9446

Part Number
Manufacturer
Status
365810: 06848 - Honeywell International Inc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5

Datasheet 5310-00-037-9446

Characteristic
Specifications
FIIG: A021A0
Material [MATT]: Steel Comp 416F Overall
Nominal Thread Size [CQJX]: 0.190 Inches
Nut Height [ADEA]: 0.281 Inches Nominal

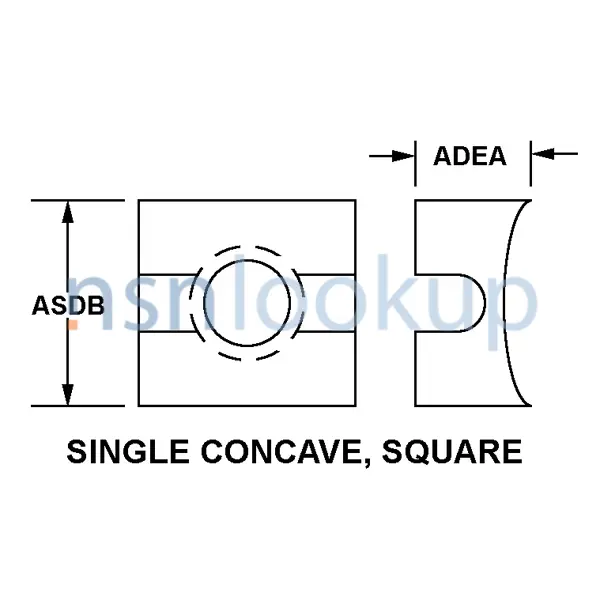

Nut Style [ACTA]: Single Concave, Square
Part Name Assigned By Controlling Agency [CXCY]: Navy Special Project
Material Document And Classification [MDCL]: Ams 5610 Assn Std Single Material Response Overall
Thread Quantity Per Inch [CMLP]: 32
Thread Series [BZRR]: Unf
Width Across Flats [ASDB]: 0.500 Inches Nominal
Surface Treatment [SFTT]: Passivate Overall
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand

Subscribe
View Data

DLA Procurement Analysis 5310-00-037-9446

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5310-00-037-9446

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe
Oct 2021: Department of the Navy (DN); EA; Subscribe
Oct 2020: Department of the Navy (DN); EA; Subscribe
Oct 2019: Department of the Navy (DN); EA; Subscribe

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Similar Supply Items to 5310-00-037-9446

Freight Information 5310-00-037-9446

5310-00-037-9446 has freight characteristics.. 5310-00-037-9446 has a variance between NMFC and UFC when transported by rail and the description should be consulted.

Contracting Technical Data File (CTDF) 5310-00-037-9446 October 2021

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: N

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: Y
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
