5307-01-615-1333
Ball Stud
5307016151333 016151333 RAM-208
A metal item with a spherical shaped head and a straight and/or tapered body, usually with a threaded shank. View more Ball Stud
May 2023
1
Marketplace 5307-01-615-1333
Request a Quotation from participating marketplace vendors
Related Documents 5307-01-615-1333 1+ Documents (More...)
Updated Every Day 5307-01-615-1333 RQST NE Related Documents 5307-01-615-1333 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-53/fsc-5307/us 5307-01-615-1333 Ball Stud 5307016151333016151333,RAM
Restrictions 5307-01-615-1333
5307-01-615-1333 is a Ball Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5307-01-615-1333
- US Marine Corps (MC47)
- Effective Date:
- 1 Dec 2012
Approved Sources 5307-01-615-1333
- Part Number
- Manufacturer
- Status
- RAM-208
- Manufacturer
- 4ZDB6 - Ram Mounts National Products Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5307-01-615-1333
- Characteristic
- Specifications
- FIIG
- Specifications
- A051A0
- Material [MATT]
- Aluminum

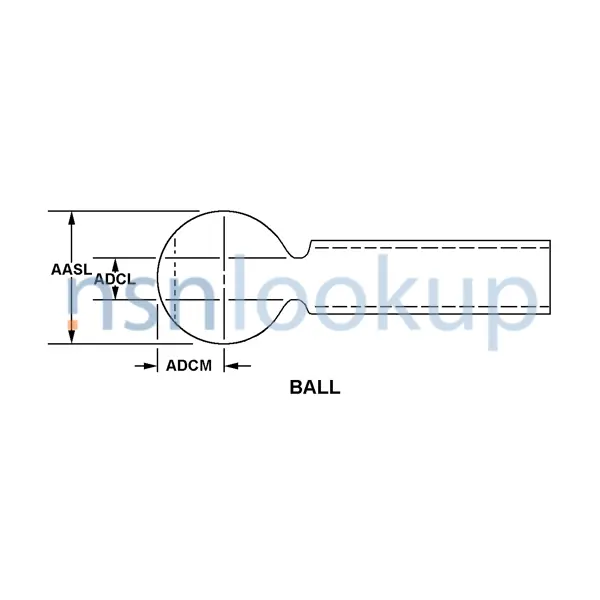

- Style Designator [STYL]
- Ball
- Head Diameter [AASL]
- 1.5 Inches Nominal
- Neck Diameter [ADCL]
- 1.12 Inches Nominal
- Distance From Spherical Head Centerline To Head End [ADCM]
- 0.75 Inches Nominal
- Plain Shank Length [ADCR]
- 1.85 Inches Nominal
- Plain Shank Diameter [ADCS]
- 0.625 Inches Nominal
- Special Features [FEAT]
- Finish: Black Power Coat
- End Item Identification [AGAV]
- 2355-01-598-5731, Light Armored Vehicle
- Part Name Assigned By Controlling Agency [CXCY]
- Ran 5/8"Dia Post With 1.5"Dia Rubber Ball
Weapon Systems (WSDC) 5307-01-615-1333
DLA Procurement Analysis 5307-01-615-1333
Management Data 5307-01-615-1333
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5307-01-615-1333
Freight Information 5307-01-615-1333
5307-01-615-1333 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5307-01-615-1333 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5307-01-615-1333 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5307-01-615-1333 is not classified as a special type of cargo when transported by water. 5307-01-615-1333 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5307-01-615-1333 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
