5307-01-513-1290

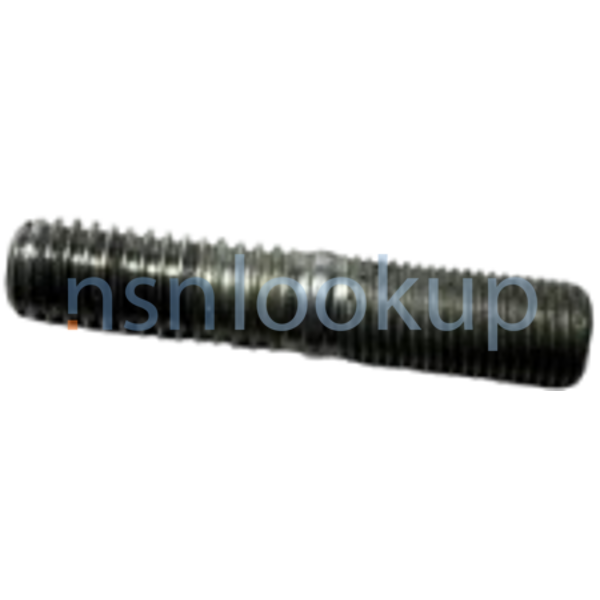

Plain Stud
5307015131290 015131290 7744564
A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. The maximum diameter of the unthreaded portion must not be greater than the nominal thread diameter plus 0.020 inches (0.508 mm). The unthreaded portion must be without locking or wrenching provisions. It may be thread relieved. See also ROD, THREADED END and ROD, CONTINUOUS THREAD. View more Plain Stud
August 2025
1
Marketplace 5307-01-513-1290
Request a Quotation from participating marketplace vendors
Related Documents 5307-01-513-1290 5+ Documents (More...)
5307-01-513-1290 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5307/us 5307-01-513-1290
Plain Stud 5307015131290 015131290,7744564 7744564 A headless fastener not exceeding 12 inches (304.8
Restrictions 5307-01-513-1290
5307-01-513-1290 is a Plain Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5307-01-513-1290
- US Army (A919)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- Spain (YB01)
- Effective Date:
- 1 Jun 2006
Approved Sources 5307-01-513-1290
- Part Number
- Manufacturer
- Status
- 7744564
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5307-01-513-1290
- Characteristic
- Specifications
- FIIG
- Specifications
- A051A0
- End Item Identification [AGAV]
- 2815001245387
- Material Document And Classification [MDCL]
- Qq-S-624 Fed Spec Single Material Response
- Material [MATT]
- Steel Comp 8640 Or Steel Comp 8740 Or Steel Comp 4140
- Nominal Thread Size [CQJX]
- 0.375 Inches Nut Thread
- Nominal Thread Size [CQJX]
- 0.375 Inches Stud Thread
- Overall Length [ABHP]
- 1.940 Inches Nominal
- Thread Series Designator [THSD]
- Unc Stud Thread
- Thread Series Designator [THSD]
- Unf Nut Thread
- Thread Quantity Per Inch [CMLP]
- 16 Stud Thread
- Thread Quantity Per Inch [CMLP]
- 24 Nut Thread
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Fed Spec Single Treatment Response Body
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Body
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Class [AAJD]
- 3A Nut Thread
- Thread Class [AAJD]
- 3A Stud Thread
- Thread Direction [AAJF]
- Right-Hand Nut Thread
- Thread Direction [AAJF]
- Right-Hand Stud Thread
- Thread Length [AASA]
- 0.750 Inches Minimum Nut Thread And 0.880 Inches Maximum Nut Thread
- Thread Length [AASA]
- 0.820 Inches Minimum Stud Thread And 1.020 Inches Maximum Stud Thread
