5307-01-479-9681
Bonded Stud
5307014799681 014799681 CB4000CR5MCRA15M CB4000C-5M-CRA-15M
A headed fastener, externally threaded. The head is intended to be fastened by an adhesive. The head may also be fastened with rivets. The head is not designed to be turned with a wrench or inserted driver. View more Bonded Stud
January 2023
6
Marketplace 5307-01-479-9681
Request a Quotation from participating marketplace vendors
Related Documents 5307-01-479-9681 1+ Documents (More...)
CB4000C-5M-CRA-15M STUD,BONDED 26 EA NS Request Quotation Updated Every Day 5307-01-479-9681 RQST NE
Updated Every Day 5307-01-479-9681 RQST Updated Every Day 5307-01-479-9681 RQST NE Related Documents
Restrictions 5307-01-479-9681
5307-01-479-9681 is a Bonded Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5307-01-479-9681
- Spain (YB01)
- Effective Date:
- 1 Apr 2005
- Australia (ZA01)
- Effective Date:
- 1 Dec 2008
- France (ZF01)
- Effective Date:
- 1 Oct 2002
- Germany (ZG01)
- Effective Date:
- 1 Nov 2000
Approved Sources 5307-01-479-9681
- Part Number
- Manufacturer
- Status
- CB4000CR5MCRA15M
- Manufacturer
- 66530 - Click Bond Inc (Active)
- Primary Buy
- Primary Buy
- CB4000C-5M-CRA-15M
- 66530 - Click Bond Inc (Active)
- Original Design
- Original Design
Datasheet 5307-01-479-9681
- Characteristic
- Specifications
- FIIG
- Specifications
- A051A0
- Material [MATT]
- Iron Alloy 660

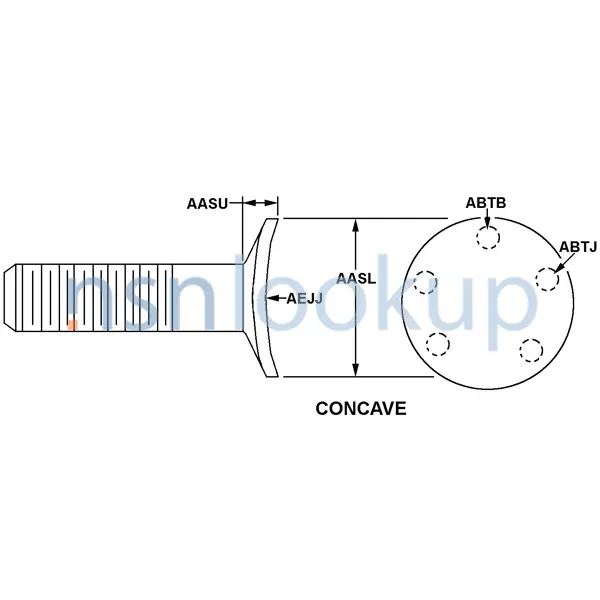

- Style Designator [STYL]
- Concave
- Head Height [AASU]
- 0.1 Millimeters Maximum
- Overall Length [ABHP]
- 35.0 Meters Nominal
- End Item Identification [AGAV]
- Helicopter Uh-Tiger Fuselage
- Part Name Assigned By Controlling Agency [CXCY]
- Stud,Composite Base,Adhesive Bonded
NATO Stock Numbers Related to 5307-01-479-9681
Freight Information 5307-01-479-9681
5307-01-479-9681 has freight characteristics.. 5307-01-479-9681 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
