5307-01-418-5874
Shouldered Stud
5307014185874 014185874 1820186

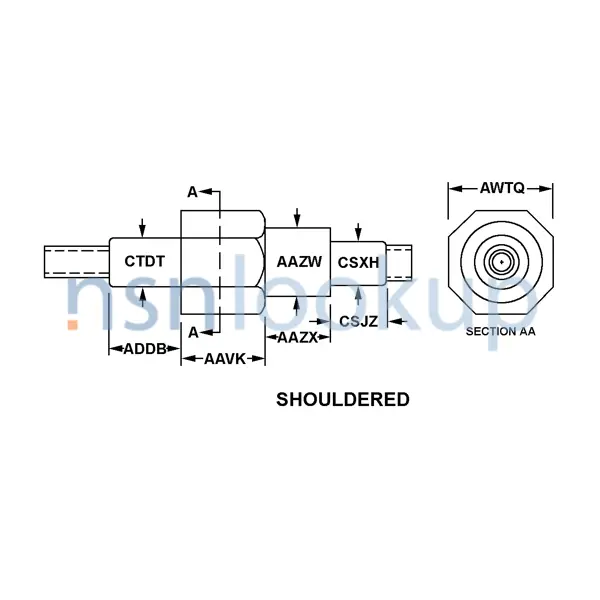

A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. All or part of the unthreaded section has a cross-sectional diameter greater than the nominal stud size plus 0.020 inches (0.508 mm). It may be thread relieved. See also STUD, LOCKED IN. View more Shouldered Stud
August 2023
1
Marketplace 5307-01-418-5874
Request a Quotation from participating marketplace vendors
Related Documents 5307-01-418-5874 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5307-01-418-5874 RQST NE Updated Every Day 5307-01-418-5874 RQST
Updated Every Day 5307-01-418-5874 RQST NE Related Documents 5307-01-418-5874 1+ Documents ( More...
Restrictions 5307-01-418-5874
5307-01-418-5874 is a Shouldered Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5307-01-418-5874
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTJBHD
Approved Sources 5307-01-418-5874
- Part Number
- Manufacturer
- Status
- 1820186
- Manufacturer
- 03956 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5307-01-418-5874
- Characteristic
- Specifications
- FIIG
- Specifications
- A051A0
- Material [MATT]
- Steel Corrosion Resisting
- Material Document And Classification [MDCL]
- Astm A581 Ty303 Cond A Assn Std Single Material Response
- Style Designator [STYL]
- Shouldered
- Shoulder Length [AAVK]
- 0.400 Inches Nominal
- Second Shoulder Diameter [AAZW]
- 0.050 Inches Nominal
- Nut End Shank Length [ADDB]
- 0.200 Inches Nominal
- Distance Across Flats [AWTQ]
- 0.187 Inches Nominal
- Stud End Shank Diameter [CSXH]
- 0.080 Inches Nominal
- Nut End Shank Diameter [CTDT]
- 0.112 Inches Nominal
- Overall Length [ABHP]
- 0.462 Inches Nominal
- Thread Series Designator [THSD]
- Unc Nut Thread
- Thread Series Designator [THSD]
- Unf Stud Thread
- Nominal Thread Size [CQJX]
- 0.112 Inches Nut Thread
- Nominal Thread Size [CQJX]
- 0.112 Inches Stud Thread
- Thread Class [AAJD]
- 2A Nut Thread
- Thread Class [AAJD]
- 2A Stud Thread
- Thread Quantity Per Inch [CMLP]
- 40 Nut Thread
- Thread Quantity Per Inch [CMLP]
- 48 Stud Thread
- Thread Direction [AAJF]
- Right-Hand Nut Thread
- Thread Direction [AAJF]
- Right-Hand Stud Thread
- Thread Length [AASA]
- 0.100 Inches Nominal Nut Thread
- Thread Length [AASA]
- 0.062 Inches Nominal Stud Thread
