5307-01-258-5429
Recessed And Stepped Stud
5307012585429 012585429 863T2100036-024

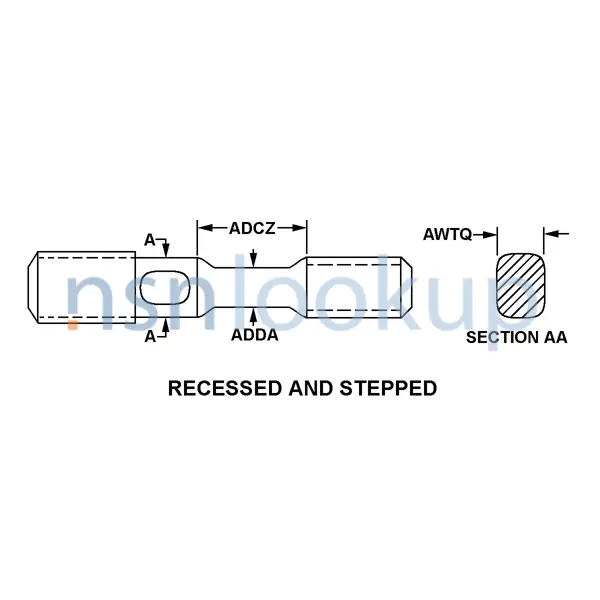

A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The unthreaded section must have more than one diameter, none of which may be larger than the maximum major diameter of the larger thread. It may be thread relieved. Excludes items with tapered threads. View more Recessed And Stepped Stud
May 2023
5
Marketplace 5307-01-258-5429
Request a Quotation from participating marketplace vendors
Related Documents 5307-01-258-5429 1+ Documents (More...)
Updated Every Day 5307-01-258-5429 RQST NE Updated Every Day 5307-01-258-5429 RQST Updated Every Day
5307-01-258-5429 RQST NE Related Documents 5307-01-258-5429 1+ Documents ( More... ) https//www.nsnlookup.com
Restrictions 5307-01-258-5429
5307-01-258-5429 is a Recessed And Stepped Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5307-01-258-5429
- US Air Force (FUGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FUKZ
Approved Sources 5307-01-258-5429
- Part Number
- Manufacturer
- Status
- 863T2100036-024
- Manufacturer
- 04236 - Lockheed Martin Corp (Active)
- Original Design
- Original Design
Datasheet 5307-01-258-5429
- Characteristic
- Specifications
- FIIG
- Specifications
- A051A0
- Diameter Of Recessed Portion Of Shank [ADDA]
- 0.303 Inches Minimum And 0.313 Inches Maximum
- Distance Across Flats [AWTQ]
- 0.615 Inches Minimum And 0.627 Inches Maximum
- Material Document And Classification [MDCL]
- Qq-S-763,Cond A Fed Spec Single Material Response
- Material [MATT]
- Steel Comp 304
- Nominal Thread Size [CQJX]
- 0.750 Inches Stud Thread
- Nominal Thread Size [CQJX]
- 0.375 Inches Nut Thread
- Length Of Recessed Portion Of Shank [ADCZ]
- 0.005 Inches Nominal
- Overall Length [ABHP]
- 6.000 Inches Nominal
- Thread Series Designator [THSD]
- Unjf Nut Thread
- Thread Series Designator [THSD]
- Unjf Stud Thread
- Style Designator [STYL]
- Recessed And Stepped
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Direction [AAJF]
- Right-Hand Nut Thread
- Thread Direction [AAJF]
- Right-Hand Stud Thread
- Thread Class [AAJD]
- 3A Nut Thread
- Thread Class [AAJD]
- 3A Stud Thread
- Thread Length [AASA]
- 0.750 Inches Nominal Nut Thread
- Thread Length [AASA]
- 4.750 Inches Nominal Stud Thread
- Thread Quantity Per Inch [CMLP]
- 16 Stud Thread
- Thread Quantity Per Inch [CMLP]
- 24 Nut Thread
