5307-01-135-4215
Recessed And Stepped Stud
5307011354215 011354215 874313-0001 874313-1
A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The unthreaded section must have more than one diameter, none of which may be larger than the maximum major diameter of the larger thread. It may be thread relieved. Excludes items with tapered threads. View more Recessed And Stepped Stud
May 2023
5
Marketplace 5307-01-135-4215
Request a Quotation from participating marketplace vendors
Related Documents 5307-01-135-4215 3+ Documents (More...)
BUY NE FedMall Updated Every Day 5307-01-135-4215 RQST NE Updated Every Day 5307-01-135-4215 RQST
Updated Every Day 5307-01-135-4215 RQST NE Related Documents 5307-01-135-4215 3+ Documents ( More...
https//www.nsnlookup.com /fsg-53/fsc-5307/us 5307-01-135-4215 Recessed And Stepped Stud 5307011354215
day Upgrade your Account Upgrade 5307-01-135-4215Recessed And Stepped Stud5307011354215 011354215 874313
Recessed And Stepped Stud 5307011354215 day Upgrade your Account Upgrade 5307-01-135-4215Recessed
And Stepped Stud5307011354215 011354215 874313 -0001 874313-1 A headless fastener not exceeding 12 inches
Restrictions 5307-01-135-4215
5307-01-135-4215 is a Recessed And Stepped Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5307-01-135-4215
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2014
- Supplementary Collaborators:
- HX
- United States of America (ZZ)
Approved Sources 5307-01-135-4215
- Part Number
- Manufacturer
- Status
- 874313-0001
- Manufacturer
- 06481 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
- 874313-1
- 06481 - Northrop Grumman Systems Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5307-01-135-4215
- Characteristic
- Specifications
- FIIG
- Specifications
- A051A0

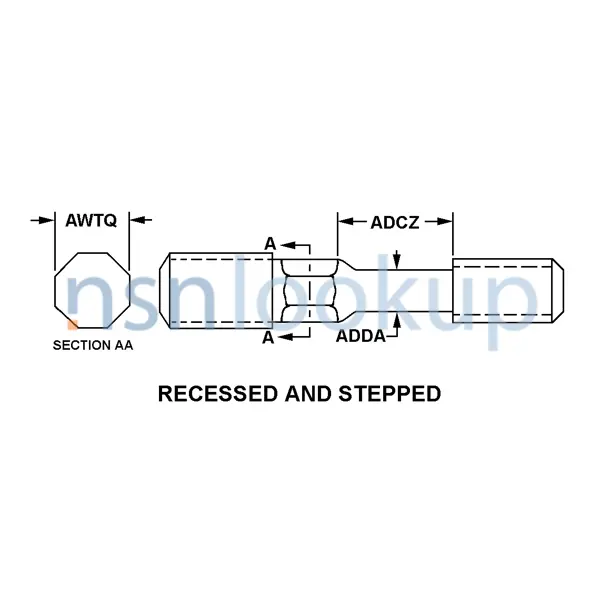

- Diameter Of Recessed Portion Of Shank [ADDA]
- 0.094 Inches Minimum And 0.096 Inches Maximum
- Distance Across Flats [AWTQ]
- 0.250 Inches Nominal
- Material [MATT]
- Steel Comp 303
- Nominal Thread Size [CQJX]
- 0.138 Inches Stud Thread
- Nominal Thread Size [CQJX]
- 0.086 Inches Nut Thread
- Part Name Assigned By Controlling Agency [CXCY]
- Navy Special Project
- Length Of Recessed Portion Of Shank [ADCZ]
- 0.052 Inches Minimum And 0.072 Inches Maximum
- Material Document And Classification [MDCL]
- Astm A582 Assn Std Single Material Response
- Overall Length [ABHP]
- 1.010 Inches Nominal
- Thread Quantity Per Inch [CMLP]
- 32 Stud Thread
- Thread Quantity Per Inch [CMLP]
- 56 Nut Thread
- Thread Series Designator [THSD]
- Unc Nut Thread
- Thread Series Designator [THSD]
- Unc Stud Thread
- Style Designator [STYL]
- Recessed And Stepped
- Surface Treatment Document And Classification [STDC]
- Mil-S-5002 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Class [AAJD]
- 2A Nut Thread
- Thread Class [AAJD]
- 2A Stud Thread
- Thread Length [AASA]
- 0.178 Inches Minimum And 0.198 Inches Maximum Stud Thread
- Thread Direction [AAJF]
- Right-Hand Nut Thread
- Thread Direction [AAJF]
- Right-Hand Stud Thread
- Thread Length [AASA]
- 0.134 Inches Minimum And 0.190 Inches Maximum Nut Thread
