5307-01-045-1680
Stepped Stud
5307010451680 010451680 16W351-7

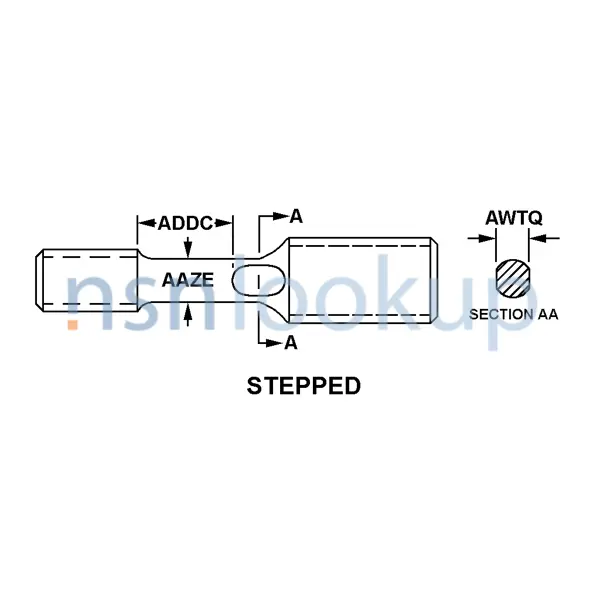

A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends on which the nominal diameter of one threaded section is greater than the other. The entire unthreaded portion must be of a single diameter equal to or smaller than the maximum major diameter of the larger threaded end. Includes radial grooves or thread reliefs. Excludes items with tapered threads. View more Stepped Stud
November 2023
13
Marketplace 5307-01-045-1680
Request a Quotation from participating marketplace vendors
Related Documents 5307-01-045-1680 1+ Documents (More...)
United States (US) 4. 5307-01-045-1680 Marketplace Restrictions Approved Sources Datasheet Management
STUD,STEPPED RQST NS Request Quotation Subscribe to View Vendor Details... 16W351-7 STUD,STEPPED 192
Restrictions 5307-01-045-1680
5307-01-045-1680 is a Stepped Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5307-01-045-1680
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5307-01-045-1680
- US Air Force (FUGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FUKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Poland (WP01)
- Effective Date:
- 1 Dec 2006
- Israel (YD01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 5307-01-045-1680
- Part Number
- Manufacturer
- Status
- 16W351-7
- Manufacturer
- 81755 - Lockheed Martin Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5307-01-045-1680
- Characteristic
- Specifications
- FIIG
- Specifications
- A051A0
- Material [MATT]
- Steel
- Nominal Thread Size [CQJX]
- 0.312 Inches Stud Thread
- Shank Diameter [AAZE]
- 0.311 Inches Minimum And 0.312 Inches Maximum
- Shank Length Excluding Wrenching Portion [ADDC]
- 0.454 Inches Minimum And 0.494 Inches Maximum
- Overall Length [ABHP]
- 1.287 Inches Nominal
- Style Designator [STYL]
- Stepped
- Thread Class [AAJD]
- 3A Nut Thread
- Thread Class [AAJD]
- 3A Stud Thread
- Thread Direction [AAJF]
- Right-Hand Nut Thread
- Thread Direction [AAJF]
- Right-Hand Stud Thread
- Thread Quantity Per Inch [CMLP]
- 24 Stud Thread
- Thread Series Designator [THSD]
- Unjf Stud Thread
Weapon Systems (WSDC) 5307-01-045-1680
