5307-00-736-9966
Ball Stud
5307007369966 007369966 7369966
A metal item with a spherical shaped head and a straight and/or tapered body, usually with a threaded shank. View more Ball Stud
May 2023
26
Marketplace 5307-00-736-9966
Request a Quotation from participating marketplace vendors
Related Documents 5307-00-736-9966 1+ Documents (More...)
RQST NE Updated Every Day 5307-00-736-9966 RQST Updated Every Day 5307-00-736-9966 RQST NE Related
Documents 5307-00-736-9966 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5307/us 5307
Restrictions 5307-00-736-9966
5307-00-736-9966 is a Ball Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5307-00-736-9966
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5307-00-736-9966
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- MC10
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5307-00-736-9966
- Part Number
- Manufacturer
- Status
- 7369966
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy

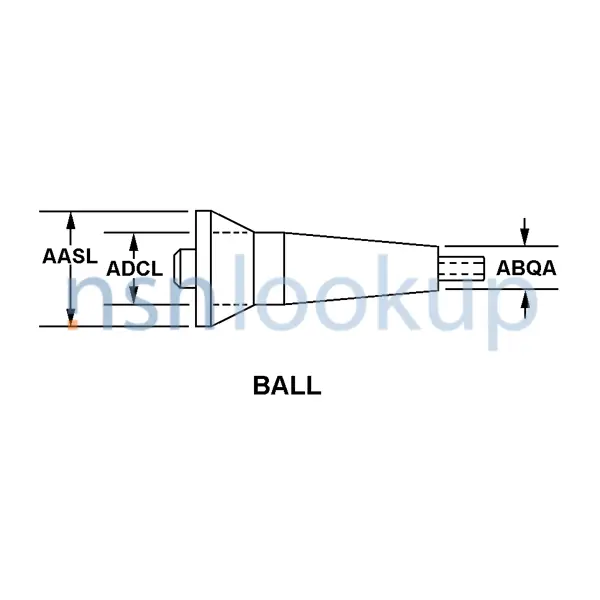

Datasheet 5307-00-736-9966
- Characteristic
- Specifications
- FIIG
- Specifications
- A051A0
- Distance From Cotter Pin Hole Centerline To Nut End [ADDU]
- 0.250 Inches Nominal First Hole
- Distance From Spherical Head Centerline To Head End [ADCM]
- 0.234 Inches Minimum And 0.359 Inches Maximum
- Body Length [ADAQ]
- 4.608 Inches Nominal
- Cotter Pin Hole Diameter [ADDV]
- 0.140 Inches Nominal First Hole
- Features Provided [CBBL]
- Casehardened
- Head Diameter [AASL]
- 1.563 Inches Minimum And 1.687 Inches Maximum
- Material [MATT]
- Steel
- Neck Diameter [ADCL]
- 1.249 Inches Minimum And 1.251 Inches Maximum
- Nominal Thread Size [CQJX]
- 0.875 Inches
- Material Document And Classification [MDCL]
- Aisi8615h Assn Std 1St Material Response Or Aisi8115 Assn Std 2Nd Material Response
- Overall Length [ABHP]
- 4.891 Inches Minimum And 5.015 Inches Maximum
- Special Features [FEAT]
- Spherical Head
- Style Designator [STYL]
- Ball
- Taper Minor Diameter [ABQA]
- 1.022 Inches Minimum And 1.024 Inches Maximum
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 1.125 Inches Nominal
- Thread Series Designator [THSD]
- Unf
- Thread Quantity Per Inch [CMLP]
- 14
DLA Procurement Analysis 5307-00-736-9966
Management Data 5307-00-736-9966
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5307-00-736-9966
Freight Information 5307-00-736-9966
5307-00-736-9966 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5307-00-736-9966 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5307-00-736-9966 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5307-00-736-9966 is not classified as a special type of cargo when transported by water. 5307-00-736-9966 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5307-00-736-9966
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5307-00-736-9966 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
