5307-00-734-8812

Plain Stud

5307007348812 007348812 7348812 401945H 401945P003

A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. The maximum diameter of the unthreaded portion must not be greater than the nominal thread diameter plus 0.020 inches (0.508 mm). The unthreaded portion must be without locking or wrenching provisions. It may be thread relieved. See also ROD, THREADED END and ROD, CONTINUOUS THREAD. View more Plain Stud

5307-00-734-8812 STUD,PLAIN 5307007348812 007348812

Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
NATO Update Count
29
NATO Data Quality
5307-00-734-8812 STUD,PLAIN 5307007348812 007348812 1/1

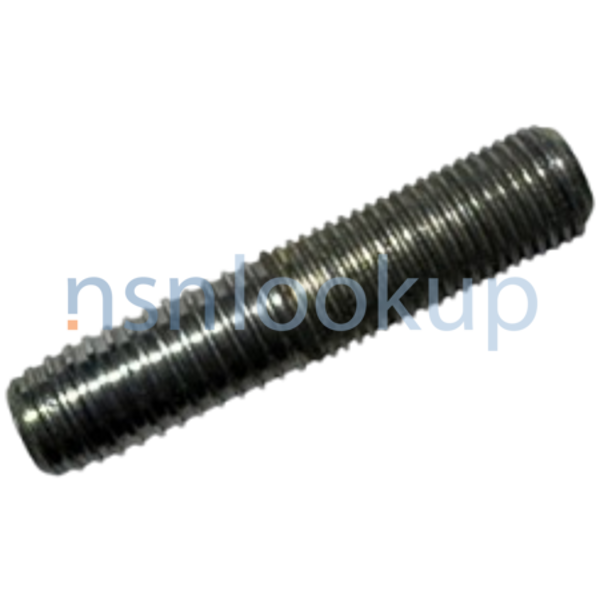

NSN 5307-00-734-8812 (Generic Image) 1/1

5307-00-734-8812 Stock and Availability Marketplace 5307-00-734-8812

Need Help?
Request a Quotation from participating marketplace vendors

5307-00-734-8812 Related Documents Related Documents 5307-00-734-8812 5+ Documents (More...)

014-1254 3 7 19207 7348529-7 5307-01 -8803 4 3 28 6 19207 7348804 5307-00-734-8804 4 3 28 6 19207 7348812
5307-00-734-8812 12 11 19207 7348813 5307-00-734-8813 12 11 19207 7350206 20 5 19207 7351617 5340-00
19207 7348812 12 29 5307-00-734-8813 19207 7348813 12 30 5307-00-678-6882 19207 7992665 12 30 5307
11684066 12 27 4330-00-516-1265 19207 11684060 12 28 5340-00-680-8768 96906 MS21209F6-15 12 29 5307-00-734-8812
19207 7348812 12 29 5307-00-734-8813 19207 7348813 12 30 5307-00-678-6882 19207 7992665 12 30 5307
19207 8666737 12 33 5307-00-774-4572 19207 7744572 12 33 5307-00-774-4573 19207 7744573 12 34 5307-00-734-8812
734-8798 3 16 19207 7348803 5307-00-734-8803 4 3 28 6 19207 7348804 5307-00-734-8804 4 3 28 6 19207 7348812
5307-00-734-8812 12 11 19207 7348813 5307-00-734-8813 12 11 19207 7350206 20 5 19207 7351617 5340-00
734-8798 3 16 19207 7348803 5307-00-734-8803 4 3 29 7 19207 7348804 5307-00-734-8804 4 3 29 7 19207 7348812
5307-00-734-8812 12 29 12 34 19207 7348813 5307-00-734-8813 12 29 12 34 19207 7350206 20 4 19207 7351617

5307-00-734-8812 Demil Restrictions 5307-00-734-8812

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: U | EDC: | ADPEC:

5307-00-734-8812 is a Plain Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

5307-00-734-8812 HTS and ScheduleB Import and Export 5307-00-734-8812

5307-00-734-8812 End Users End Users 5307-00-734-8812

US Army (A919)
Effective Date:
1 Aug 2005
Former MOE Rule:
A187
Supplementary Receivers:
AZ
US Air Force (FXGI)
Effective Date:
1 Aug 2005
Former MOE Rule:
FXKZ
US Marine Corps (MC47)
Effective Date:
1 Aug 2005
Former MOE Rule:
MC10
Austria (WB01)
Effective Date:
1 Feb 2005
Brazil (YA01)
Effective Date:
1 Sep 2000
Spain (YB01)
Effective Date:
1 Apr 1991
Israel (YD01)
Effective Date:
1 Aug 2016
Singapore (YJ01)
Effective Date:
1 Apr 1991
Morocco (YP01)
Effective Date:
1 Nov 2008
Republic of Korea (ZH01)
Effective Date:
1 Apr 1991
Portugal (ZP01)
Effective Date:
1 Apr 1991
Norway (ZT01)
Effective Date:
1 Apr 1991
Greece (ZU01)
Effective Date:
1 Apr 1991
Turkey (ZW01)
Effective Date:
1 Jul 2003

5307-00-734-8812 Manufacturers Approved Sources 5307-00-734-8812

5307-00-734-8812 Technical Data Datasheet 5307-00-734-8812

Characteristic
Specifications
FIIG
A051A0
Hardness Rating [CQFM]
28.0 Rockwell C Nominal
Material [MATT]
Steel Comp 8640
Nominal Thread Size [CQJX]
0.375 Inches Nut Thread
Nominal Thread Size [CQJX]
0.375 Inches Stud Thread
Material Document And Classification [MDCL]
Ams A322 Assn Std Single Material Response Or Ams A331 Assn Std Single Material Response
Overall Length [ABHP]
1.620 Inches Nominal
Special Features [FEAT]
Stud 0.003 In. Oversize
Surface Treatment [SFTT]
Cadmium Overall
Thread Class [AAJD]
3A Nut Thread
Thread Direction [AAJF]
Right-Hand Nut Thread
Thread Direction [AAJF]
Right-Hand Stud Thread
Thread Length [AASA]
0.620 Inches Minimum Nut Thread
Thread Length [AASA]
0.750 Inches Minimum Stud Thread
Thread Pitch Diameters [AAJE]
+0.3435/+0.3451 Inches Stud Thread
Thread Series Designator [THSD]
Unf Nut Thread
Thread Series Designator [THSD]
Uns Stud Thread
Thread Quantity Per Inch [CMLP]
16 Stud Thread
Thread Quantity Per Inch [CMLP]
24 Nut Thread

5307-00-734-8812 Weapon Systems (WSDC) Weapon Systems (WSDC) 5307-00-734-8812

5307-00-734-8812 Stock, Inventory and Procurement DLA Procurement Analysis 5307-00-734-8812

Last Stock Position:
348 In Stock
DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

5307-00-734-8812 Management Data Management Data 5307-00-734-8812

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Oct 2022
Department of the Navy (DN)
EA
Subscribe
Dec 2021
Department of the Navy (DN)
EA
Subscribe
Nov 2021
Department of the Army (DA)
EA
Subscribe
Oct 2020
Department of the Air Force (DF)
EA
Subscribe
Oct 2019
Department of the Army (DA)
EA
Subscribe

Army Army

Materiel Category and Inventory Manager:
T
Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity:
2
Stock Fund Secondary Items
Management Inventory Segment:
2
Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
Weapons System / End Item / Homogeneous Group:
00
DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements:
X
Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force Air Force

Fund:
SF
Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
Budget:
9
57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
Aggregation Code:
SX
SICA RESIDUAL MMAC-OC-ALC
Price Validation Code:
V
The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Expendability
Recoverability
Repairability:
N
Expendable. Condemn at User. Stock Fund (except Munitions).

Navy Navy

Cognizance:
9B
Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps Marine Corps

Stores Account:
1
Stock Fund Account Item
Combat Essentiality:
5
Critical Repair Part to a Combat Essential End Item
Echelon Management:
B2
Operational Test:
No Special Procedures

5307-00-734-8812 Related Items NATO Stock Numbers Related to 5307-00-734-8812

5307-00-734-8812 Freight Data Freight Information 5307-00-734-8812

5307-00-734-8812 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5307-00-734-8812 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5307-00-734-8812 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5307-00-734-8812 is not classified as a special type of cargo when transported by water. 5307-00-734-8812 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

5307-00-734-8812 Packaging Data Packaging Data 5307-00-734-8812

Responsible Activity
Packaging Data Source
Primary Inventory Control Activity (PICA)
--

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation
--
--
Plated/Coated Item
2lb or less, one dimension 2" or less, other dimensions less than 24"
Above 110G
No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying
--
--
--
--
Physical Protection
Any Suitable Process
Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking
No Requirement
No Requirement
No Requirement
Not Applicable
PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container
PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

5307-00-734-8812 Procurement History Procurement History 5307-00-734-8812 1 Records

Contract
Date
CAGE
Quantity
Net Price
Std Price
SPE4A622V7603
21 Dec 2021
Subscribe
528
Subscribe
Subscribe

5307-00-734-8812 Contracting Technical Data File (CTDF) Contracting Technical Data File (CTDF) 5307-00-734-8812 August 2020

Criticality and Quality

Critical Item Code:
X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):
F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
