5307-00-678-6882

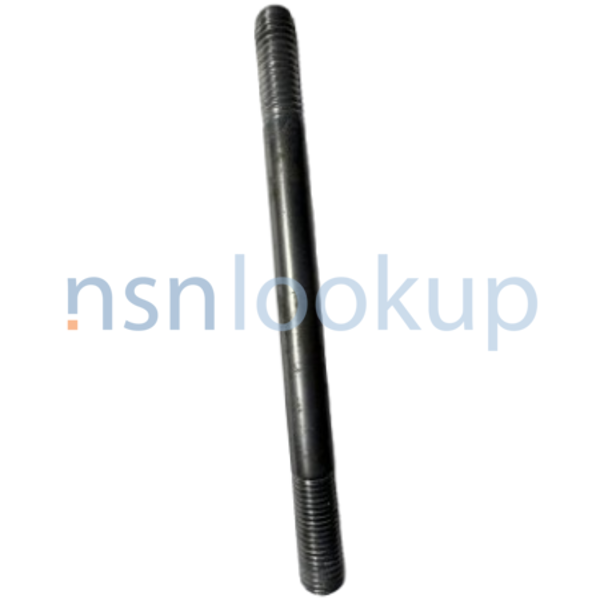

Plain Stud
5307006786882 006786882 7992665
A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. The maximum diameter of the unthreaded portion must not be greater than the nominal thread diameter plus 0.020 inches (0.508 mm). The unthreaded portion must be without locking or wrenching provisions. It may be thread relieved. See also ROD, THREADED END and ROD, CONTINUOUS THREAD. View more Plain Stud
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
22
22
NATO Data Quality
Marketplace 5307-00-678-6882
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5307-00-678-6882 5+ Documents (More...)
5307-00-678-6882 12 31 28 19 19207 7992666 5307-00-678-6883 12 31 28 19 19207 7992669 5307-00-678-3524
5307-00-678-6882 12 30 29 19 19207 7992666 5307-00-678-6883 12 30 29 19 19207 7992669 5307-00-678-3524
19207 7992665 29 19 5307-00-678-6883 19207 7992666 29 20 5307-00-264-2471 28839 401819S 29 20 5307
5307-00-678-6882 12 30 29 19 19207 7992666 5307-00-678-6883 12 30 29 19 19207 7992669 5307-00-678-3524
19207 7992665 29 19 5307-00-678-6883 19207 7992666 29 20 5307-00-264-2471 28839 401819S 29 20 5307
5307-00-678-3527 3 8 19207 7992657 5307-00-678-3526 3 20 19207 7992658 5307-00-678-3525 3 20 19207 7992665
5307-00-678-6882 12 30 29 19 19207 7992666 5307-00-678-6883 12 30 29 19 19207 7992669 5307-00-678-3524
5307-00-678-6882 12 30 29 19 19207 7992666 5307-00-678-6883 12 30 29 19 19207 7992669 5307-00-678-3524
5307-00-678-3527 3 8 19207 7992657 5307-00-678-3526 3 21 19207 7992658 5307-00-678-3525 3 21 19207 7992665
5307-00-678-6882 12 31 28 19 19207 7992666 5307-00-678-6883 12 31 28 19 19207 7992669 5307-00-678-3524
5307-00-678-6882 12 31 28 19 19207 7992666 5307-00-678-6883 12 31 28 19 19207 7992669 5307-00-678-3524
MS21209F6-15 12 29 5307-00-734-8812 19207 7348812 12 29 5307-00-734-8813 19207 7348813 12 30 5307-00-678-6882
19207 7992665 12 30 5307-00-678-6883 19207 7992666 12 31 5307-00-264-2471 28839 401819S 12 31 5307
19207 7992665 12 30 5307-00-678-6883 19207 7992666 12 31 5307-00-264-2471 28839 401819S 12 31 5307
..... 2 18 XAHZZ 19207 8682513 .TUBE ............................................ 4 19 PAHZZ 5307-00-678-6882
19207 7992665 .STUD,PLAIN .003 OVERSIZE ...................... 2 19 PAHZZ 5307-00-678-6883 19207
19207 7992665 .STUD,PLAIN .003 OVERSIZE ...................... 2 19 PAHZZ 5307-00-678-6883 19207
Restrictions 5307-00-678-6882
5307-00-678-6882 is a Plain Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5307-00-678-6882
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5307-00-678-6882
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Jul 2003
Approved Sources 5307-00-678-6882
- Part Number
- Manufacturer
- Status
- 7992665
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 5307006786882
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5307006786882
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5307-00-678-6882
- Characteristic
- Specifications
- FIIG
- Specifications
- A051A0
- Hardness Rating [CQFM]
- 28.0 Rockwell C Minimum And 34.0 Rockwell C Maximum
- Material [MATT]
- Steel Comp 1016 Or Steel Comp 8640 Or Steel Comp 8740
- Nominal Thread Size [CQJX]
- 0.375 Inches Nut Thread
- Nominal Thread Size [CQJX]
- 0.375 Inches Stud Thread
- Overall Length [ABHP]
- 4.690 Inches Nominal
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 1,Cl 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Direction [AAJF]
- Right-Hand Nut Thread
- Thread Direction [AAJF]
- Right-Hand Stud Thread
- Thread Class [AAJD]
- 3A Nut Thread
- Thread Length [AASA]
- 0.750 Inches Minimum Nut Thread
- Thread Length [AASA]
- 0.880 Inches Minimum Stud Thread
- Thread Quantity Per Inch [CMLP]
- 16 Stud Thread
- Thread Quantity Per Inch [CMLP]
- 24 Nut Thread
- Thread Pitch Diameters [AAJE]
- +0.3435/+0.3451 Inches Stud Thread
- Thread Series Designator [THSD]
- Unc Stud Thread
- Thread Series Designator [THSD]
- Unf Nut Thread
Weapon Systems (WSDC) 5307-00-678-6882
DLA Procurement Analysis 5307-00-678-6882
- Last Stock Position:
- 209 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5307-00-678-6882
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
NATO Stock Numbers Related to 5307-00-678-6882
5307-14-406-0700 5307-14-310-5508 5307-14-436-8896 5307-99-753-2857 5307-99-772-2988 5307-99-464-2722 5307-99-747-6149 5307-99-550-7084 5307-13-117-2439 5307-14-488-6665 5307-14-328-9408 5307-14-541-2257 5307-99-136-4888 5307-22-256-0719 5307-99-255-1944 5307-14-460-7564 5307-14-381-0622 5307-14-328-9416
Freight Information 5307-00-678-6882
5307-00-678-6882 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5307-00-678-6882 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5307-00-678-6882 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5307-00-678-6882 is not classified as a special type of cargo when transported by water. 5307-00-678-6882 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5307-00-678-6882
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- Special requirements
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 5307-00-678-6882 2 Records
Contracting Technical Data File (CTDF) 5307-00-678-6882 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
