5307-00-206-1485

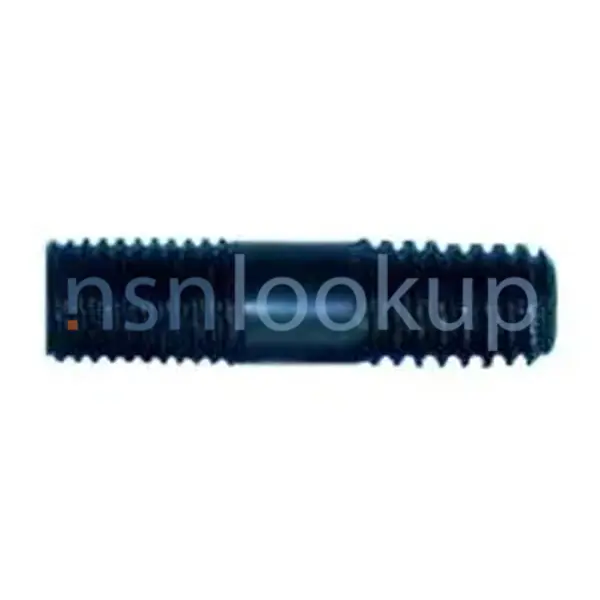

Plain Stud
5307002061485 002061485 8333626-2 315V
A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. The maximum diameter of the unthreaded portion must not be greater than the nominal thread diameter plus 0.020 inches (0.508 mm). The unthreaded portion must be without locking or wrenching provisions. It may be thread relieved. See also ROD, THREADED END and ROD, CONTINUOUS THREAD. View more Plain Stud
August 2023
27
Marketplace 5307-00-206-1485
Request a Quotation from participating marketplace vendors
Related Documents 5307-00-206-1485 5+ Documents (More...)
Updated Every Day 5307-00-206-1485 RQST NE Related DBDS10K1X-315V DBDS10K1X/315V 424151 A valve designed
Plain Stud 5307002061485 002061485,8333626-2 Documents 5307-00-206-1485 5+ Documents ( More... https/
DBDH6G10/315V DBDH6G1X/315V 427605 A valve designed to automatically release excessive pressures.
Plain Stud 5307002061485 002061485,8333626 https//www.nsnlookup.com /fsg-53/fsc-5307/us 5307-00
178904049 (241)A4609DBDS4K1X/315V A valve designed to automatically release excessive pressures.
4820-15-201-3267 Safety Relief Valve 4820152013267152013267 DBDS4K1X/315V178904049 (241)A4609DBDS4K1X/315V
DBDS10K1X-315V DBDS10K1X/315V 424151 A valve designed to automatically release excessive pressures.
Plain Stud 5307002061485 002061485,8333626-2 NE Updated Every Day 5307-00-206-1485 RQST Updated
9999-99-610-7982 Plain Stud 9999996107982 996107982 Items to 9999-99-610-7982 5307-00-630-9168 5307-00-206-1485
9999-99-614-4197 Plain Stud 9999996144197 996144197 Items to 9999-99-614-4197 5307-00-630-9168 5307-00-206-1485
Restrictions 5307-00-206-1485
5307-00-206-1485 is a Plain Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5307-00-206-1485
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBD
- US Marine Corps (MC47)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Spain (YB01)
- Effective Date:
- 1 Sep 2008
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Sep 2009
Approved Sources 5307-00-206-1485
- Part Number
- Manufacturer
- Status
- 8333626-2
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 315V
- 72447 - Dana Commercial Vehicle (Active)
- Secondary Buy
- Secondary Buy
- 315V
- 95019 - Dana Corp (Active)
- Secondary Buy
- Secondary Buy
- 5307002061485
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5307002061485
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5307-00-206-1485
- Characteristic
- Specifications
- FIIG
- Specifications
- A051A0
- Hardness Rating [CQFM]
- 12.0 Rockwell C Minimum And 25.0 Rockwell C Maximum
- Material Document And Classification [MDCL]
- Qq-S-633 Fed Spec Single Material Response
- Material [MATT]
- Steel Comp 1035
- Nominal Thread Size [CQJX]
- 0.375 Inches Nut Thread
- Nominal Thread Size [CQJX]
- 0.375 Inches Stud Thread
- Overall Length [ABHP]
- 1.615 Inches Minimum And 1.635 Inches Maximum
- Thread Class [AAJD]
- 3A Nut Thread
- Thread Class [AAJD]
- 3A Stud Thread
- Thread Direction [AAJF]
- Right-Hand Nut Thread
- Thread Direction [AAJF]
- Right-Hand Stud Thread
- Thread Length [AASA]
- 0.562 Inches Maximum Nut Thread
- Thread Length [AASA]
- 0.562 Inches Maximum Stud Thread
- Thread Quantity Per Inch [CMLP]
- 16 Stud Thread
- Thread Quantity Per Inch [CMLP]
- 24 Nut Thread
- Thread Series Designator [THSD]
- Unc Stud Thread
- Thread Series Designator [THSD]
- Unf Nut Thread
DLA Procurement Analysis 5307-00-206-1485
Management Data 5307-00-206-1485
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5307-00-206-1485
Freight Information 5307-00-206-1485
5307-00-206-1485 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5307-00-206-1485 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5307-00-206-1485 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5307-00-206-1485 is not classified as a special type of cargo when transported by water. 5307-00-206-1485 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5307-00-206-1485
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5307-00-206-1485 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
